800173

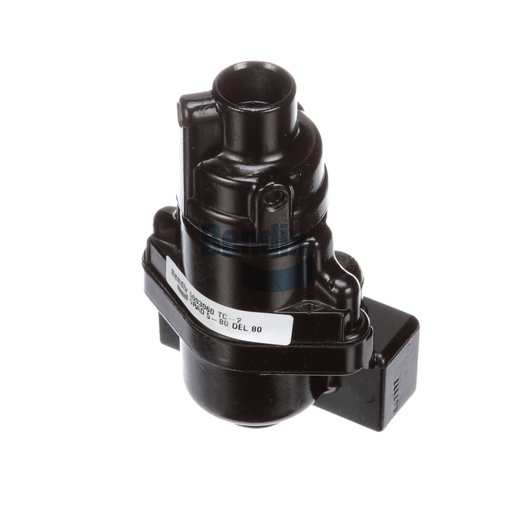

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your trailer's braking system with the Bendix Trailer Control Valve, expertly designed for optimal performance and reliability. This valve features a self-return design with a 90° total handle travel, allowing for precise control over braking functions. Constructed from durable materials, it is built to withstand the rigors of commercial use, ensuring longevity and reliability in the field. Weighing only 1.0 kg, its lightweight design facilitates easy installation while maintaining robust functionality. The Trailer Control Valve is engineered to provide consistent performance, contributing to the overall safety of your trailer. For authentic Bendix OEM parts like this Trailer Control Valve, Source One Parts Center is your best choice, ensuring quality and reliability with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
2.18 lb
