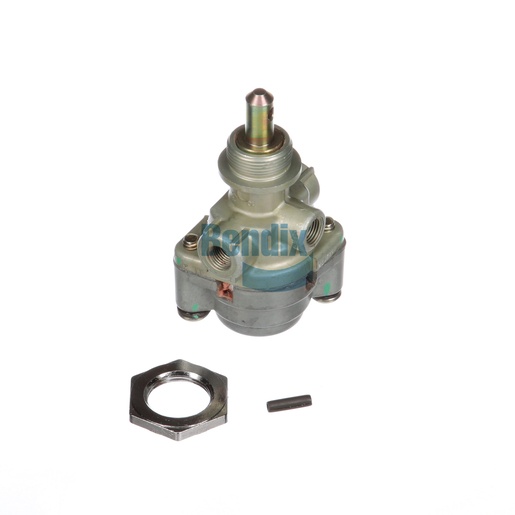

800360
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix control valve is an essential part of your trailer's braking system, specifically designed for inversion applications. This valve ensures that air pressure is managed efficiently, facilitating quick and effective braking response. With a robust construction that can withstand extreme temperatures, ranging from -40°F to 200°F, it guarantees reliability in various driving conditions. The valve's precise design allows for easy installation and maintenance, ensuring that your braking system remains responsive and safe. Weighing only 0.4 kg, it is lightweight yet durable, making it an ideal choice for heavy-duty vehicles. For genuine Bendix OEM parts, Source One Parts Center is the best place to shop, ensuring you receive top-quality components for your braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
109.0 mm (4.29 in)
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Exhaust Port
Vent
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.77 lb
