800855

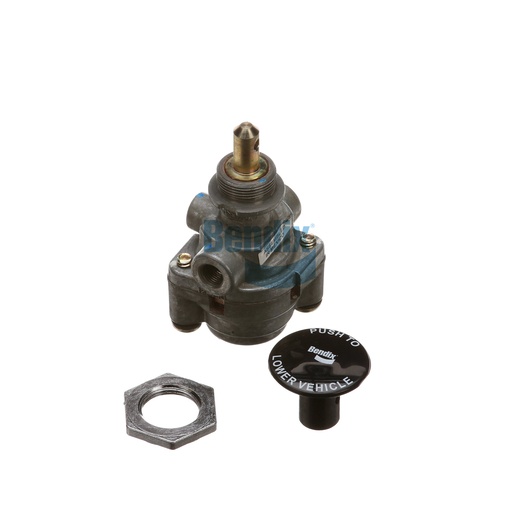

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an integral part of your truck's trailer braking system, designed for precise control over the air brake functions. This valve features a compact design and is equipped with multiple ports for easy installation and maintenance. With a maximum operating temperature of 200°F, it is built to withstand the demands of heavy-duty applications while ensuring reliable performance in all conditions. The control valve's innovative design includes a pilot trip pressure of 18 PSI, allowing for quick and responsive braking action. Its user-friendly interface with a push button for lowering the vehicle enhances driver convenience and safety. By selecting the Bendix Control Valve from Source One Parts Center, you are ensuring that your vehicle maintains optimal performance and safety on the road. Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts, providing quality and reliability you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Button Color
Black
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Push to Lower Vehicle
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.84 lb
