$194.95
$233.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

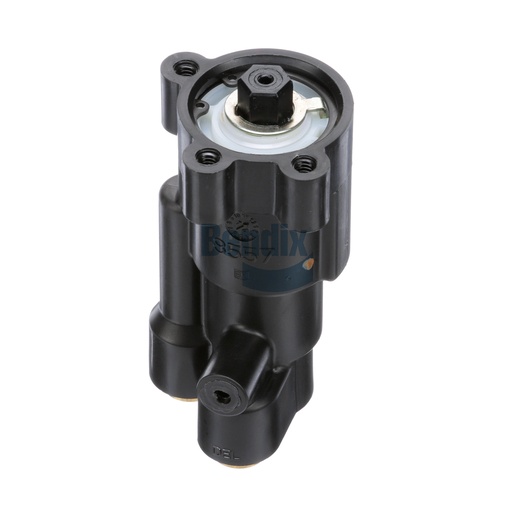

The Bendix Trailer Control Valve is an essential component of your vehicle's braking system, designed to ensure reliable operation and control of trailer brakes. This valve features a robust design that allows for effective management of air pressure, providing smooth and responsive braking performance. With multiple ports for easy installation and integration into existing systems, this valve is ideal for heavy-duty applications. Its durable construction ensures that it can withstand the rigors of commercial use while maintaining optimal performance. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that you receive high-quality components for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight)
Exhaust Port
3/8 PTC (Straight)
Supply Port
3/8 PTC (Straight)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
71° CW
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Product Type
Positioning
Final Delivery Pressure
Reservoir
Weight
0.66 lb
