801831
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

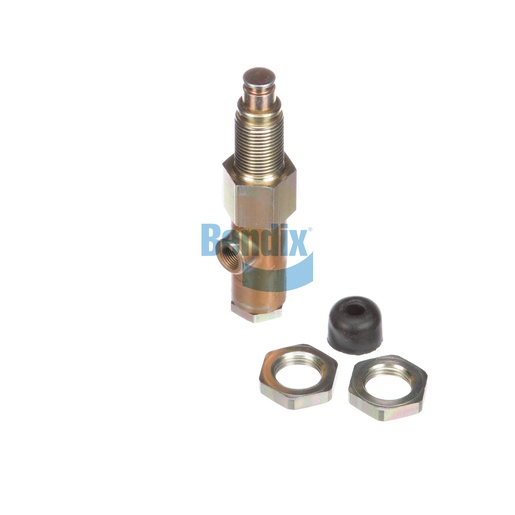

The Control Valve from Bendix plays a critical role in the air braking system of your commercial vehicle, ensuring precise control and operation. Crafted in the United States, this valve is designed to handle pressures up to 200 PSI, making it ideal for heavy-duty applications. With a compact design and a net weight of just 0.68 pounds, it is easy to install and fits seamlessly into your existing system. The valve features robust construction with a rubber boot included, providing additional protection against environmental factors. Its ability to operate efficiently in extreme temperatures from -40°F to 200°F ensures reliable performance in various conditions. For high-quality Bendix OEM parts that you can depend on, look no further than Source One Parts Center.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Plunger / Button Height
1.66 IN
Delivery Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
112.0 mm (4.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/4-16 UNF-3A
Height
33.0 mm (1.3 in)
Width
33.0 mm (1.3 in)
Harmonized System (HS) Code
848120
Button(s) Included
No
Dial Included
No
Country of Origin
United States
Exhaust Port
Vent (Ø .125 IN)
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .496 IN
Weight
0.68 lb
