$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

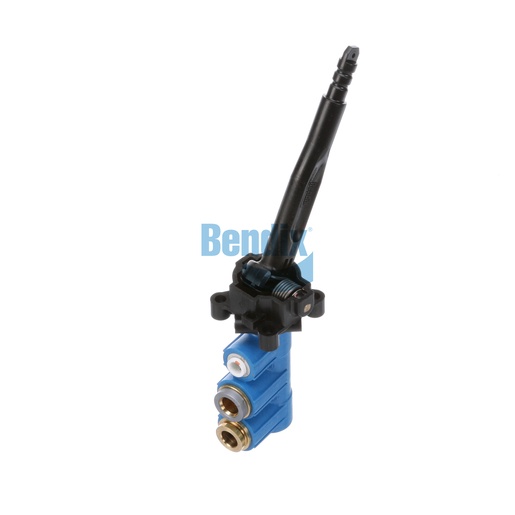

The Trailer Control Valve is a vital component in managing the braking system of your commercial vehicle, enhancing safety and performance during operation. This valve is designed for seamless integration, allowing for effective control of air supply to the trailer brakes. With a lightweight design of just 0.5 lbs, it is easy to install and maintain, making it ideal for fleet operators looking to enhance their braking systems. Its robust construction ensures reliability, effectively managing air flow to prevent leaks and enhance braking efficiency. For those in search of high-quality Bendix OEM parts, Source One Parts Center is the premier choice, offering reliable products tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 40 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Final Delivery Pressure
120 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight / Gray Cap)
Supply Port
3/8 PTC (Straight)
Total Handle Travel
55°
Harmonized System (HS) Code
848120
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (without Detent)
Handle Shape
Straight
Mounting
Ø .218 IN (4x)
Weight
0.5 lb
