802055
Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

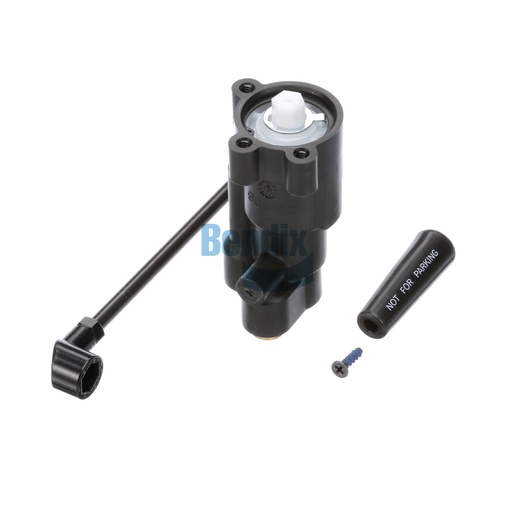

The Trailer Control Valve by Bendix is an essential component for managing air supply to your trailer's braking system, ensuring smooth and reliable operation. Designed with a robust body made from durable plastic, this valve features a steel handle that offers a comfortable grip for seamless operation. It has a total handle travel of 50 degrees, allowing precise control over the braking pressure range of 5 to 80 PSI. Its compact size and lightweight design (only 0.5 kg) make it ideal for installation in tight spaces, while its maximum operating temperature of 200°F ensures it performs well under tough conditions. This valve's advanced design also minimizes exhaust pressure, contributing to improved braking response time. With a mounting location on the column and straightforward installation, it is perfect for both new and replacement applications. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the best source, providing quality assurance and a comprehensive selection for commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight)
Exhaust Port
3/8 PTC (Straight)
Supply Port
3/8 PTC (Straight)
Graduating Pressure Range
5 - 80 PSI
Total Handle Travel
50°
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Knob / Handle Text
Not for Parking
Body Material
Plastic
Product Type
Positioning
Handle Material
Steel (Black Oxide)
Handle Shape
Straight
Weight
1.08 lb
