802634

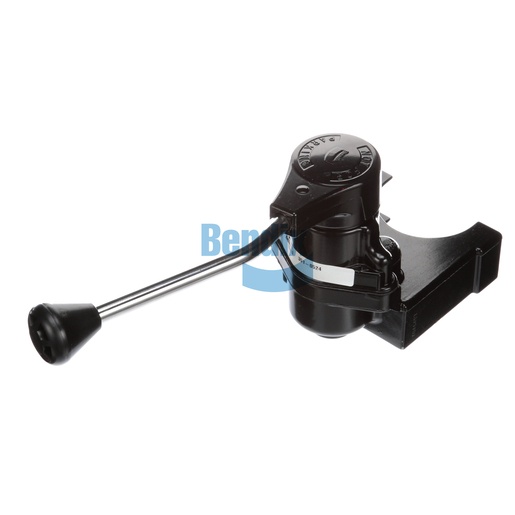

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is designed to provide precise control over the braking system of your trailer, ensuring safe and effective operation. With its durable construction and zinc body material, this valve is built to withstand the toughest conditions. Weighing 3.2 pounds, it features multiple ports for flexible installation options, allowing for easy integration into your existing air system. The valve operates efficiently across a wide temperature range, making it suitable for various vehicular applications. For high-quality Bendix OEM parts that ensure your trailer's braking system performs optimally, choose Source One Parts Center.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Body Material
Zinc
Weight
3.2 lb
