$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

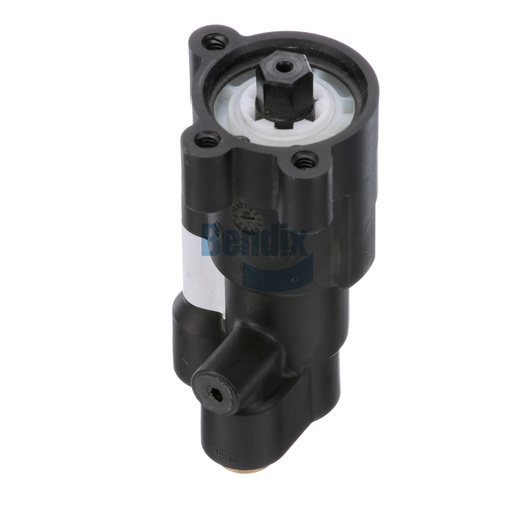

The Trailer Control Valve from Bendix is an essential component for ensuring optimal performance and safety in commercial vehicle braking systems. Designed with a self-return mechanism and a robust plastic body, this valve operates smoothly across a wide pressure range of 5 to 80 PSI, effectively regulating air flow for the trailer's brake system. Its mounting location is column mount, allowing for easy installation and maintenance, while the maximum operating temperature of 200°F ensures durability even under demanding conditions. The valve features multiple ports for supply and exhaust, each designed for straightforward connections. This component is ideal for fleet operators looking to enhance the reliability and efficiency of their trailers. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the best place to purchase, guaranteeing product authenticity and excellent customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight)
Exhaust Port
3/8 PTC (Straight)
Supply Port
3/8 PTC (Straight)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
71° CW
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Final Delivery Pressure
Reservoir
Product Type
Self-Return (without Detent)
Weight
0.65 lb
