802763

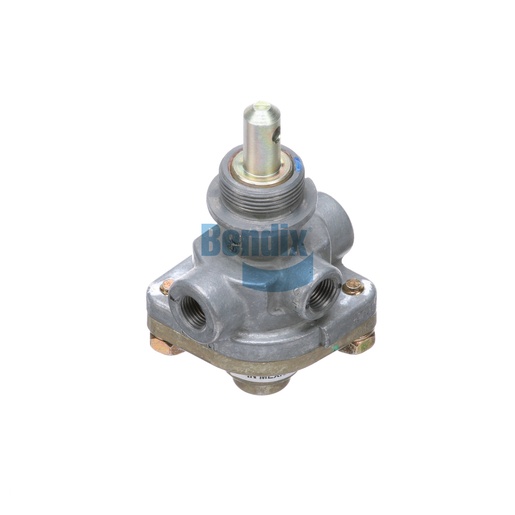

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a key element in trailer braking systems, designed for precision and reliability. This high-performance valve operates effectively under varying conditions, with a robust build that ensures optimal functionality from -40°F to 200°F. With multiple delivery ports, it allows for versatile installation and operation, making it a favorite among fleet operators. The valve's design minimizes leakage and maximizes pressure control, contributing to enhanced vehicle safety and performance. Whether you're looking to upgrade or replace existing components, this control valve meets the rigorous demands of commercial trucking. For the best selection of genuine Bendix parts, Source One Parts Center is the premier destination, offering authentic products backed by exceptional customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.6 lb
