$159.95
$191.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

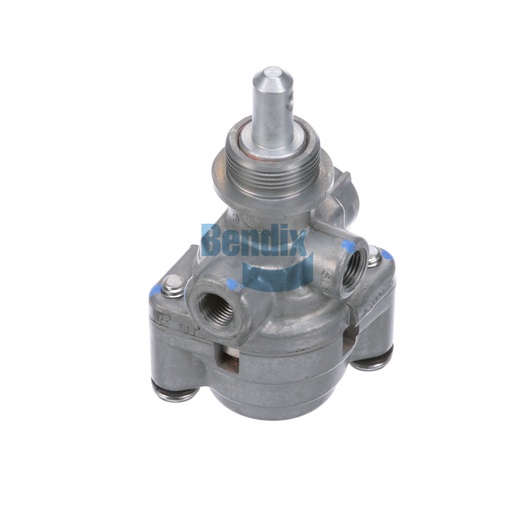

The Bendix Control Valve is a vital component that plays a significant role in managing air pressure within trailer braking systems. This valve is designed to optimize brake response and improve overall vehicle safety by controlling the application and release of air pressure. Its technical attributes, including a pilot trip pressure of 18 PSI and automatic release pressure of 55 PSI, ensure precise control during operation. The valve's robust construction guarantees durability and reliability, even in the most demanding conditions. With a compact design measuring 50.8 mm in width and only 0.4 kg in weight, it is easy to install and can seamlessly fit into existing systems. The Control Valve is essential for maintaining the integrity of your braking system, ensuring quick and effective stopping power when needed. For those looking to purchase genuine Bendix OEM parts, Source One Parts Center is your trusted destination, offering an extensive range of quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
55 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Vent
Plunger Diameter
Ø .374 IN
Weight
0.78 lb
