K024943

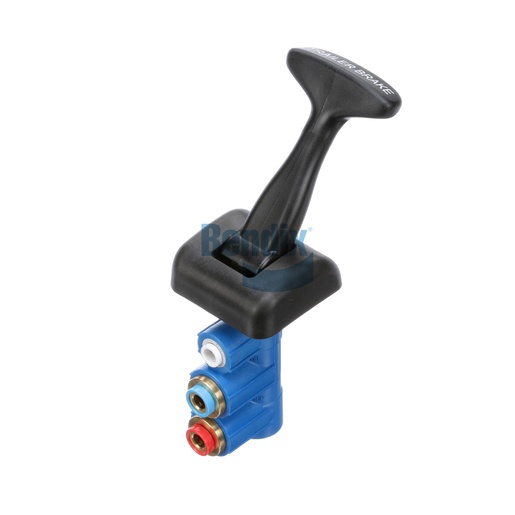

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is engineered for precise control and reliable braking performance in commercial vehicles. This valve is essential for managing air supply to the trailer's braking system, ensuring smooth and effective operation under various load conditions. The design incorporates advanced features such as a self-return mechanism, which enhances control and responsiveness, critical for safe operation on the road. Its durable construction withstands the demanding environments faced by commercial vehicles, making it a reliable choice for fleet operators. Regular maintenance and timely replacement of control valves are crucial for preventing braking issues and ensuring the safety of your vehicle. Investing in this high-quality valve will enhance the performance and longevity of your braking system. For those seeking authentic Bendix OEM parts, Source One Parts Center is the top choice, ensuring you receive reliable components that meet stringent performance standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 110 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4 PTC (Straight / Blue Cap)
Exhaust Port
1/4 PTC (Straight / Composite)
Supply Port
1/4 PTC (Straight / Red Cap)
Final Delivery Pressure
135 PSI
Maximum Operating Temperature
200 °F (93 °C)
Total Handle Travel
80°
Harmonized System (HS) Code
848120
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (without Detent)
Handle Shape
Straight (with Molded T-Handle)
Knob / Handle Text
Trailer Brake
Mounting
Ø .177 IN (4x)
Weight
0.59 lb
