K024944

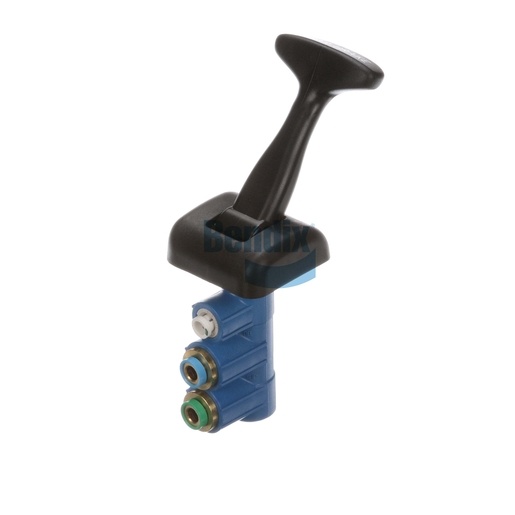

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix trailer control valve is an essential component designed to enhance the performance of your air brake system. With its self-return feature and robust construction, this valve ensures optimal control and responsiveness, particularly when navigating challenging driving conditions. Weighing only 0.3 kg, it offers a compact design for easy installation in your vehicle's dash. This valve is built to withstand the rigors of commercial use, providing reliable service that meets the demands of heavy-duty applications. Choose Source One Parts Center for your Bendix OEM parts, where quality and reliability come standard.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 110 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4 PTC (Straight / Blue Cap)
Exhaust Port
1/4 PTC (Straight / Composite)
Supply Port
1/4 PTC (Straight / Green Cap)
Final Delivery Pressure
135 PSI
Length
159.0 mm (6.26 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
57.0 mm (2.24 in)
Total Handle Travel
80°
Harmonized System (HS) Code
848120
Height
97.0 mm (3.82 in)
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Knob / Handle Text
Rear Brake
Product Type
Self-Return (without Detent)
Handle Shape
Straight (with Molded T-Handle)
Mounting
Ø .177 IN (4x)
Weight
0.6 lb
