K024946

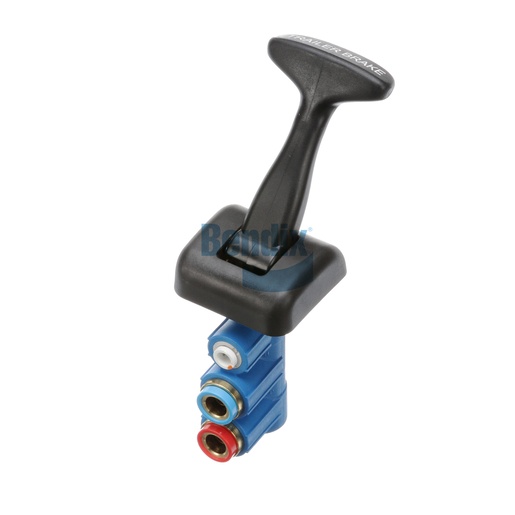

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is engineered for precision and reliability, playing a critical role in managing air supply to the trailer's braking system. This valve is designed to provide responsive control, ensuring effective braking in various load conditions. With its durable construction and innovative features, it is built to withstand the rigors of heavy-duty applications, making it a trusted choice for fleet operators. Regular maintenance and timely replacement of the control valve are essential for ensuring optimal braking performance, preventing potential failures that could compromise safety. Investing in this high-quality component enhances the overall functionality of your braking system, ensuring safe and efficient operation on the road. Source One Parts Center is the premier source for genuine Bendix OEM parts, providing you with the confidence of quality components that meet the highest standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 110 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Final Delivery Pressure
135 PSI
Length
159.0 mm (6.26 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight / Blue Cap)
Supply Port
3/8 PTC (Straight / Red Cap)
Width
57.0 mm (2.24 in)
Total Handle Travel
80°
Harmonized System (HS) Code
848120
Height
97.0 mm (3.82 in)
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (without Detent)
Handle Shape
Straight (with Molded T-Handle)
Knob / Handle Text
Trailer Brake
Mounting
Ø .177 IN (4x)
Weight
0.5 lb
