K024947

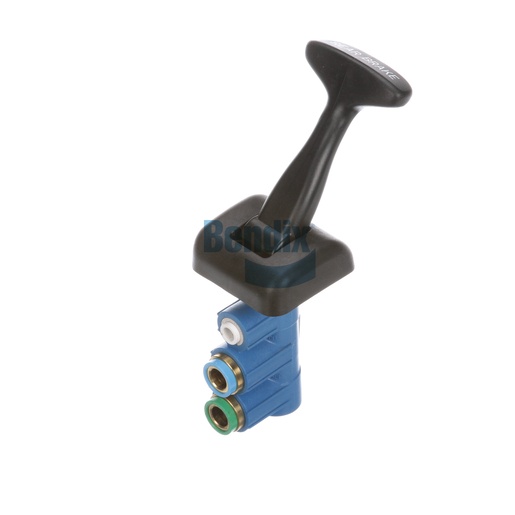

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your truck's braking and trailer control with the Bendix trailer control valve, expertly designed for seamless operation in commercial vehicles. This high-quality valve features a robust construction that withstands the rigors of heavy-duty applications, ensuring reliable performance when you need it most. Its innovative design includes a straight handle with a molded T-handle for easy operation, making it a user-friendly component for drivers. The valve's compatibility with various mounting locations ensures a versatile installation, allowing for customization based on your specific vehicle setup. With a maximum operating temperature of 200 °F, this valve is built to perform under extreme conditions. When sourcing genuine Bendix OEM parts for commercial vehicles, Source One Parts Center is your best choice for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 110 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Final Delivery Pressure
135 PSI
Length
159.0 mm (6.26 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight / Blue Cap)
Supply Port
3/8 PTC (Straight / Green Cap)
Width
57.0 mm (2.24 in)
Total Handle Travel
80°
Harmonized System (HS) Code
848120
Height
97.0 mm (3.82 in)
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Knob / Handle Text
Rear Brake
Product Type
Self-Return (without Detent)
Handle Shape
Straight (with Molded T-Handle)
Mounting
Ø .177 IN (4x)
Weight
0.53 lb
