K024948

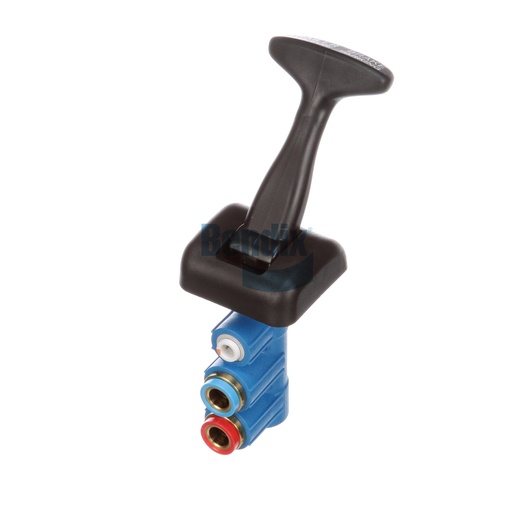

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is an essential part of your truck’s air brake system, responsible for effectively managing air supply to the trailer brakes. Designed with a self-return mechanism, this valve ensures precise control, enhancing safety and performance during operation. With a lightweight design of only 0.2 kg, it is easy to install and integrate into various trailer configurations while providing robust durability in challenging conditions. The valve’s thoughtful design also includes features that prevent pressure build-up, contributing to optimal braking efficiency and safety. For those in search of reliable and high-quality components, Source One Parts Center is the ideal destination for genuine Bendix OEM parts, ensuring your commercial vehicles are equipped with the best available solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 110 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Length
159.0 mm (6.26 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight / Blue Cap)
Supply Port
3/8 PTC (Straight / Red Cap)
Width
57.0 mm (2.24 in)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Height
97.0 mm (3.82 in)
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (with Detent)
Handle Shape
Straight (with Molded T-Handle)
Knob / Handle Text
Trailer Brake | Not for Parking
Mounting
Ø .177 IN (4x)
Weight
0.55 lb
