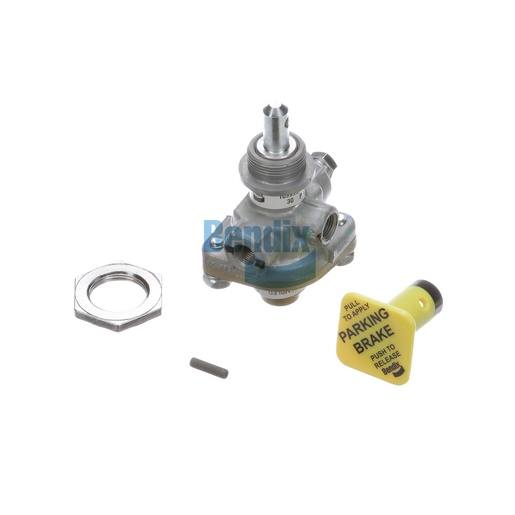

K038642
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a key component in ensuring the efficient operation of your commercial vehicle's braking system. This high-quality valve is designed to meet stringent safety standards, allowing for precise control of air pressure within the braking system, which is critical for optimal braking performance. Featuring a durable construction that withstands extreme temperatures ranging from -40°F to 200°F, this valve is built to last, providing reliable service over time. It includes convenient features such as a diamond-shaped button for easy operation, and its compact size (2.0 in width and 1.8 in height) ensures it fits seamlessly into various truck setups. The Control Valve also facilitates easy installation with the included mounting nut and a plunger height of just 1.59 in. For those who demand the best from their braking systems, this valve is an indispensable choice. At Source One Parts Center, we pride ourselves on offering genuine Bendix OEM parts, ensuring that your commercial vehicle's performance and safety are never compromised.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
30 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.75 lb
