K044346
Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

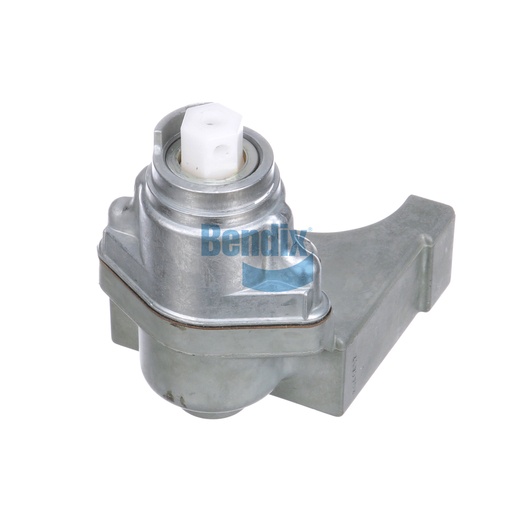

The Bendix trailer control valve is an essential component for maintaining optimal braking performance in your commercial vehicle's trailer system. Engineered for reliability and precision, this valve plays a crucial role in ensuring that your trailer's brakes engage and disengage smoothly, providing enhanced control during operation. Its design incorporates advanced features that promote efficient braking, reducing wear on your vehicle's brake components and improving overall safety. With a net weight of just 1.1 kg, this lightweight yet robust valve is easy to install and integrates seamlessly into your existing braking system. The Bendix trailer control valve is also built to withstand the harsh conditions of the road, ensuring long-lasting performance. For those looking for genuine Bendix OEM parts, Source One Parts Center stands out as the premier source, offering quality and dependability with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
2.46 lb
