K047770

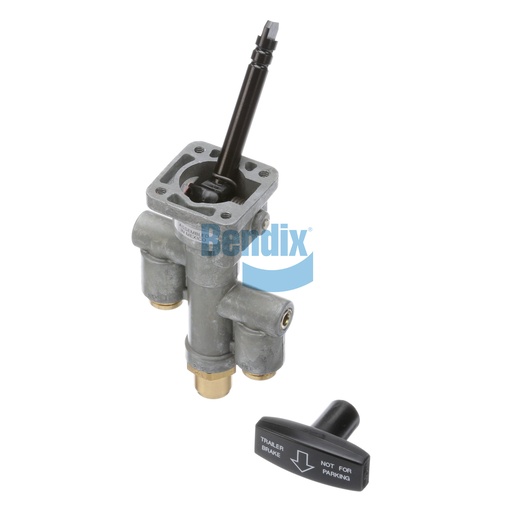

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is expertly designed to regulate the braking system of commercial trailers, ensuring enhanced safety and performance during operation. This valve allows for precise control over the trailer brakes, providing drivers with the confidence needed when towing heavy loads. Featuring a robust design with multiple ports for efficient airflow, it supports quick braking response times, which is essential for safety in emergency situations. The valve's durable construction can withstand the harsh conditions of road use, making it an ideal choice for fleet operators. Weighing 0.5 kg, it is compact and easy to install, ensuring minimal downtime for your vehicle. When it comes to sourcing Bendix OEM parts, Source One Parts Center is the best choice, providing high-quality components that enhance your commercial vehicle's braking system.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 85 PSI
VMRS
013-010-014: Hand Control Valve - Air
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight)
Exhaust Port
3/8 PTC (Straight)
Supply Port
3/8 PTC (Straight)
Total Handle Travel
55°
Harmonized System (HS) Code
848120
Final Delivery Pressure
85 ± 10 PSI
Handle Material
Aluminum (Black Epoxy / Laquer)
Knob / Handle Color
Black
Mounting Location
Dash Mount
Country of Origin
Mexico
Product Type
Self-Return (without Detent)
Handle Shape
Straight
Knob / Handle Text
Trailer Brake | Not for Parking
Body Material
Zinc
Weight
1.2 lb
