K061976

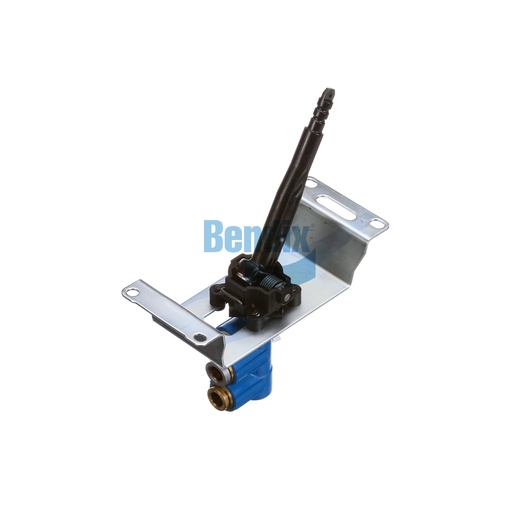

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is an essential component for managing the air brake systems in commercial trailers. This valve is designed for efficiency and reliability, featuring a self-return mechanism with detent that ensures consistent performance across varying conditions. With a robust construction that can withstand extremes in temperature, this valve operates effectively between -40°F and 200°F, making it suitable for all climates. The valve's careful design allows for precise control over air delivery and exhaust, optimizing the operation of your trailer's braking system and enhancing overall safety. This component is vital for maintaining the integrity of your braking system, ensuring that your vehicle can handle heavy loads safely. For those in need of genuine Bendix OEM parts, Source One Parts Center offers an unparalleled selection and commitment to quality, making it the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 40 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Final Delivery Pressure
135 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight / Gray Cap)
Supply Port
3/8 PTC (Straight)
Total Handle Travel
55°
Harmonized System (HS) Code
848120
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (with Detent)
Handle Shape
Straight
Mounting
Ø .268 IN, .295 IN x .220 IN Slot, .374 IN x .276 IN Slot (2x)
Weight
0.91 lb
