K112648

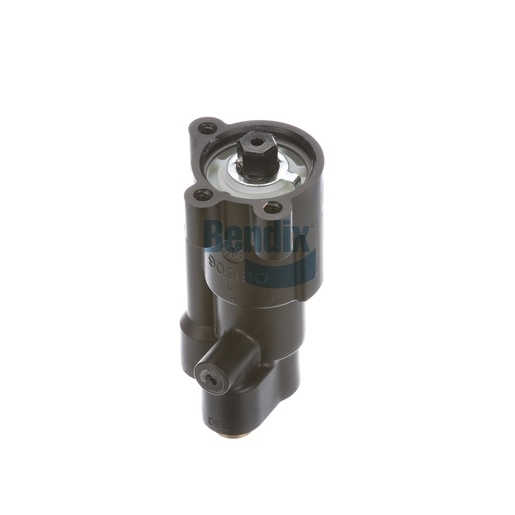

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is an essential component in Bendix trailer braking systems, designed to enhance the efficiency and safety of your vehicle's braking performance. This valve features a unique mounting configuration that allows for straightforward installation, ensuring that your trailer’s braking system operates effectively. With a focus on reliability, this control valve is engineered to maintain optimal pressure levels, contributing to seamless braking functionality. Its durable construction ensures that it can withstand the demands of heavy-duty applications, making it ideal for commercial vehicles. Additionally, this valve is designed with thoughtful engineering to minimize the risk of leaks, enhancing the overall safety of your trailer. By choosing this Trailer Control Valve, you are investing in the performance and safety of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring that you receive quality components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Length
234.0 mm (9.21 in)
Height
260.0 mm (10.24 in)
Exhaust Port
3/8 PTC (Straight / Composite)
Delivery Port
3/8 PTC (Straight)
Supply Port
3/8 PTC (Straight)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
71° CW
Width
75.0 mm (2.95 in)
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Final Delivery Pressure
Reservoir
Product Type
Self-Return (without Detent)
Weight
0.62 lb
