$229.95
$275.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

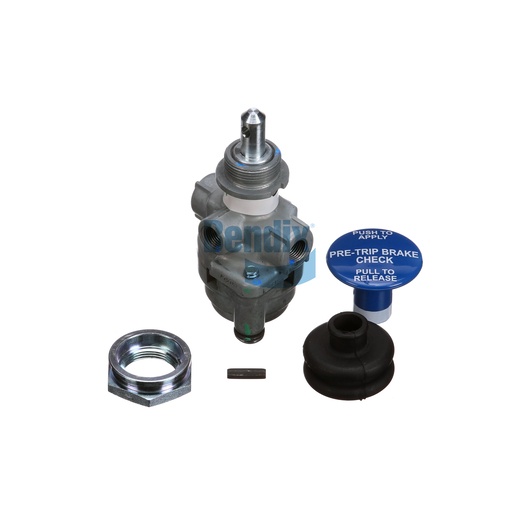

The Bendix Control Valve is a crucial component designed for efficient braking system operation. With a mounting configuration compatible with various setups, this valve ensures precise control of air pressure, enhancing the performance of your vehicle's braking system. Its robust design allows for reliable operation even in demanding conditions, making it a trustworthy choice for fleet operators. The control valve features a user-friendly interface with push-to-apply functionality, ensuring ease of use during pre-trip inspections. Manufactured in Mexico, this valve meets stringent quality standards, making it a dependable option for your truck. For sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best choice for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Button Color
Blue (White Band)
Country of Origin
Mexico
Dial Included
No
Button Text
Push to Apply | Pre-Trip Brake Check | Pull to Release
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.88 lb
