K125181

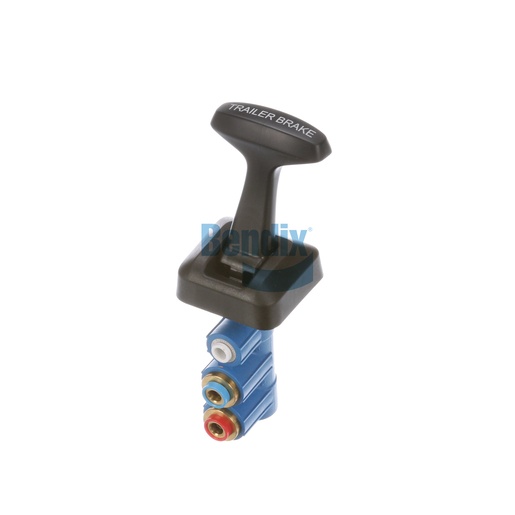

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is a vital component in Bendix’s braking system, specifically designed to provide precise control over the trailer's braking functions. This valve features a self-return design that enhances efficiency and reliability, allowing for smooth and safe operation during both normal and emergency braking scenarios. Its robust construction ensures durability, making it suitable for the demanding conditions faced by commercial trailers. The valve offers easy installation with four mounting points, facilitating a quick and hassle-free setup. Additionally, its design ensures that exhaust ports vent to the atmosphere, preventing pressure buildup and enhancing safety. By incorporating this trailer control valve into your braking system, you improve overall vehicle performance and driver control. For all your genuine Bendix OEM parts needs, Source One Parts Center is the trusted destination, delivering quality components that ensure your fleet's safety and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 40 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4 PTC (Straight / Blue Cap)
Exhaust Port
1/4 PTC (Straight / Composite)
Supply Port
1/4 PTC (Straight / Red Cap)
Final Delivery Pressure
135 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
25.6 mm (1.01 in)
Length
61.0 mm (2.4 in)
Width
63.5 mm (2.5 in)
Total Handle Travel
80°
Harmonized System (HS) Code
848120
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (without Detent)
Handle Shape
Straight (with Molded T-Handle)
Knob / Handle Text
Trailer Brake
Mounting
Ø .177 IN (4x)
Weight
0.4 lb
