K125185

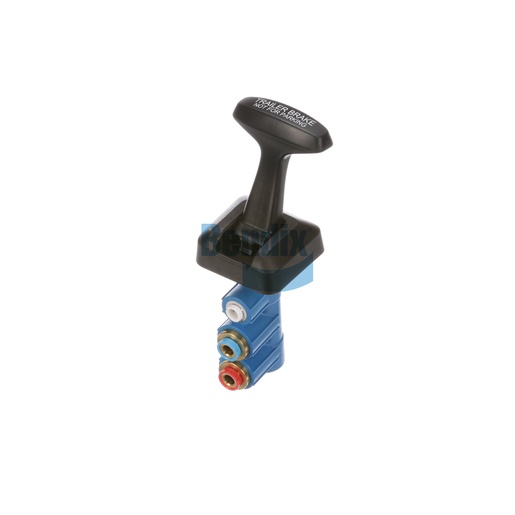

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is designed to provide precise control over the braking system of your commercial vehicle's trailer. This self-return valve features a molded T-handle design for easy operation, allowing drivers to manage braking with efficiency and safety. Manufactured in Mexico, this valve is engineered to meet high standards of performance under all conditions, ensuring reliable operation even in extreme temperatures. The valve's construction includes multiple ports for versatile installation options, making it compatible with various setups. With a final delivery pressure of 135 PSI, it ensures effective braking response, crucial for safe maneuvering and stopping. Choosing this valve means investing in a product that delivers both performance and reliability. Source One Parts Center is the leading supplier for genuine Bendix OEM parts, guaranteeing you access to the best components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 40 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4 PTC (Straight / Blue Cap)
Exhaust Port
1/4 PTC (Straight / Composite)
Supply Port
1/4 PTC (Straight / Red Cap)
Final Delivery Pressure
135 PSI
Maximum Operating Temperature
200 °F (93 °C)
Length
25.0 mm (0.98 in)
Height
46.0 mm (1.81 in)
Width
51.0 mm (2.01 in)
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (with Detent)
Handle Shape
Straight (with Molded T-Handle)
Knob / Handle Text
Trailer Brake | Not for Parking
Mounting
Ø .177 IN (4x)
Weight
0.53 lb
