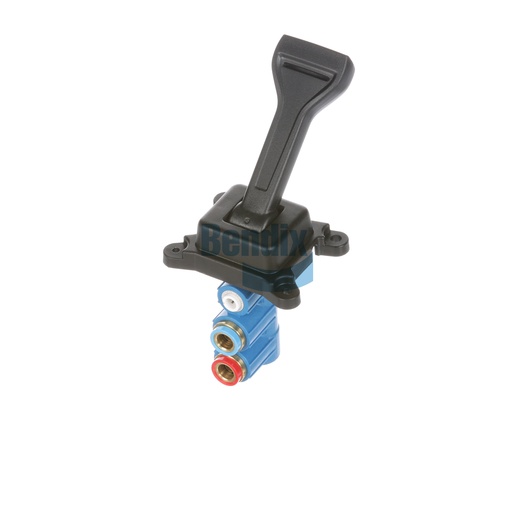

K135723
Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve by Bendix is an essential component for ensuring safe and effective trailer braking. Designed to provide precise control, this valve features a straight handle shape with a molded T-handle for easy operation. With a maximum operating temperature of 200 °F and a robust design, it is built to withstand the harsh conditions encountered on the road. The valve’s efficient functionality helps in maintaining proper pressure and responsiveness, crucial for safe trailer operations. For those looking for trusted Bendix parts, Source One Parts Center is the ultimate destination for genuine OEM components that meet high standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 110 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Final Delivery Pressure
135 PSI
Length
184.0 mm (7.24 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight / Blue Cap)
Supply Port
3/8 PTC (Straight / Red Cap)
Total Handle Travel
63°
Height
80.0 mm (3.15 in)
Width
80.0 mm (3.15 in)
Harmonized System (HS) Code
848120
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (without Detent)
Handle Shape
Straight (with Molded T-Handle)
Mounting
Ø .236 IN (2x), Ø .177 IN, .236 IN x .177 IN Slot
Weight
0.57 lb
