K138275

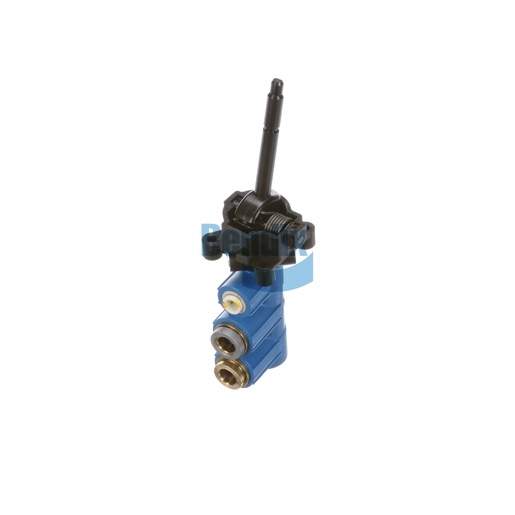

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is a pivotal component designed to enhance braking performance in commercial vehicles. This valve features a straight handle and multiple port configurations, allowing for efficient control of trailer brake systems. Its robust plastic body is designed to withstand harsh environments, while the steel handle ensures durability and longevity. With a total handle travel of 55° and a maximum operating pressure of 135 PSI, this valve provides precise control for safe and effective braking. Additionally, it operates effectively in extreme temperatures, from -40°F to 200°F, making it suitable for a wide range of applications. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring your vehicle's performance and safety are never compromised.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 40 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Final Delivery Pressure
135 PSI
Length
161.0 mm (6.34 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight / Gray Cap)
Supply Port
3/8 PTC (Straight)
Height
49.0 mm (1.93 in)
Total Handle Travel
55°
Width
64.0 mm (2.52 in)
Harmonized System (HS) Code
848120
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Product Type
Self-Return (without Detent)
Handle Material
Steel (Black Oxide)
Handle Shape
Straight
Mounting
Ø .189 IN (4x)
Weight
0.45 lb
