K207103

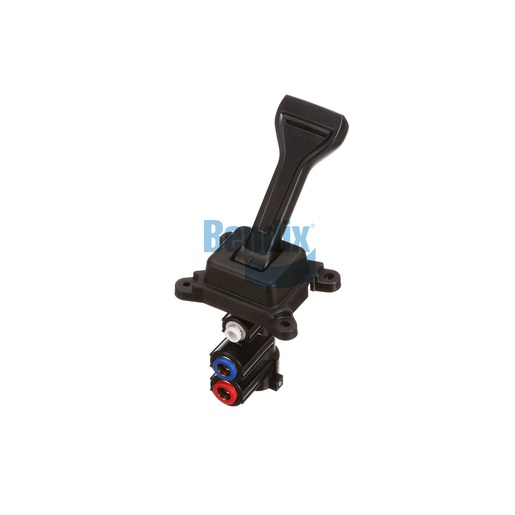

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is a crucial component in the braking system of your commercial vehicle, designed to provide precise control over the braking of trailers. This self-return valve features a molded T-handle for easy operation and is built to withstand the rigors of heavy-duty use. Weighing only 0.3 kg, it is compact and easy to install, ensuring a straightforward integration into your vehicle's braking system. Manufactured in compliance with high standards, this valve guarantees reliability and performance. For those looking to maintain their vehicles with authentic components, Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring safety and efficiency on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 110 PSI
VMRS
013-010-014: Hand Control Valve - Air
Exhaust Port
1/4 PTC (Straight / Composite)
Final Delivery Pressure
135 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
25.6 mm (1.01 in)
Delivery Port
3/8 PTC (Straight / Blue Cap)
Supply Port
3/8 PTC (Straight / Red Cap)
Length
61.0 mm (2.4 in)
Width
63.5 mm (2.5 in)
Total Handle Travel
63°
Harmonized System (HS) Code
848120
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Dash Mount
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Body Material
Plastic
Handle Material
Plastic
Product Type
Self-Return (without Detent)
Handle Shape
Straight (with Molded T-Handle)
Mounting
Ø .236 IN (2x), Ø .177 IN, .236 IN x .177 IN Slot
Weight
0.56 lb
