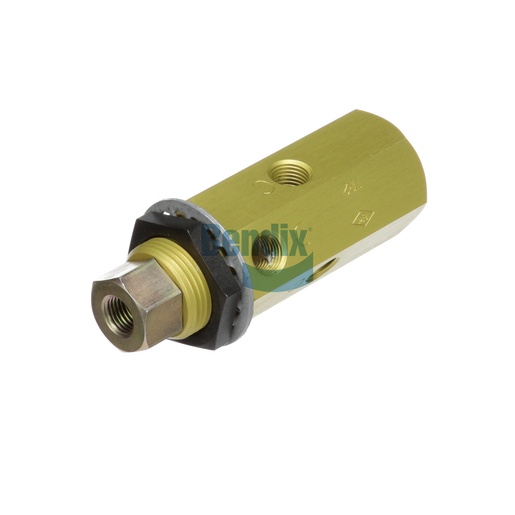

OR277340
CORELESS VALVE
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The CORELESS VALVE is a critical component in the air brake system of commercial vehicles, providing precise control of air flow for optimal braking performance. Its advanced design features multiple ports for efficient operation under varying conditions, making it essential for maintaining safe and effective braking. With a robust construction that can withstand extreme temperatures and pressures, this valve ensures reliability in demanding environments. Regular maintenance and timely replacements of valves like this can significantly improve vehicle safety and performance. Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring you receive quality components that meet the rigorous demands of commercial transportation.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Mounting
1 1/4-12 UNF-2A (Bulkhead)
Control Port 1
1/4-18 NPT
Control Port 2
1/4-18 NPT
Control Port 3
1/4-18 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
40 PSI
EXH Opening Descending Pressure (Constant SUP / Variable CON)
65 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
United States
Weight
0.93 lb
