OR280758

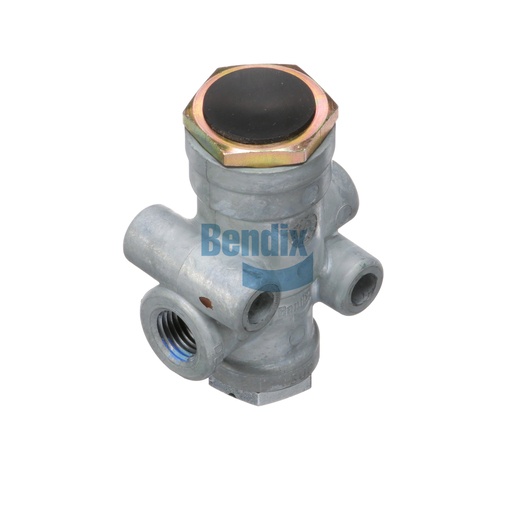

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is engineered to provide precise control within your vehicle's braking system. Designed for trailer applications, this valve ensures optimal functionality and reliability, contributing to the overall safety of your commercial vehicle. Its robust construction allows for effective operation under varying conditions, making it a critical component for fleet operators. The installation process is straightforward, allowing for quick replacements to minimize downtime. For those in search of high-quality Bendix OEM parts, Source One Parts Center is the best choice, offering genuine components that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
30 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Descending Pressure (Common CON / SUP)
45 PSI
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
60 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.62 lb
