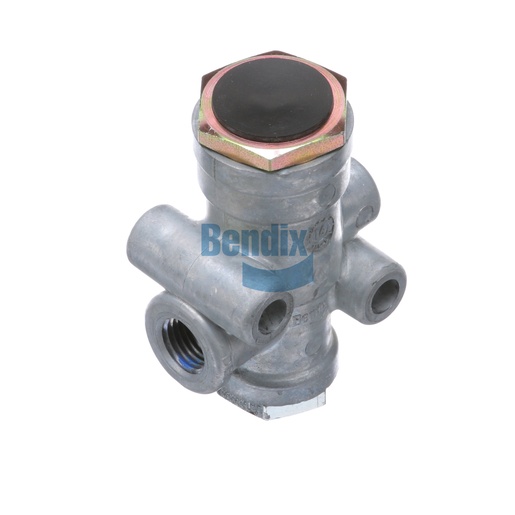

OR281318
CORELESS VALVE
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is designed for efficient operation within your truck's air brake system, ensuring that your vehicle maintains optimal braking performance. This valve features advanced engineering that allows it to function reliably in extreme temperatures, from -40°F to 200°F, making it suitable for a wide range of operating conditions. With multiple ports for versatile connections, including supply and exhaust ports, this valve simplifies the installation process while enhancing the overall efficiency of your braking system. The durable construction ensures longevity, reducing the frequency of replacements and maintenance costs over time. For the best selection of genuine Bendix OEM parts, choose Source One Parts Center, where quality and reliability are our top priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Inlet Opening Pressure (Constant SUP / Variable CON)
17 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
35 PSI
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
70 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.62 lb
