$224.95
$269.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

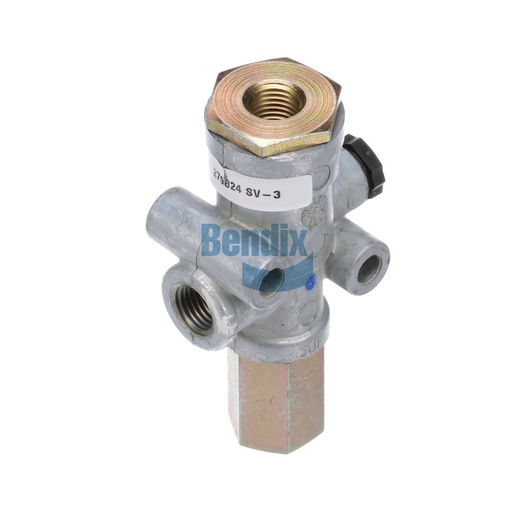

The Pilot Valve from Bendix is essential for controlling air flow within the air brake system of commercial vehicles. This component enables precise operation of various brake functions, ensuring that your braking system responds quickly and accurately to driver inputs. Designed for durability and reliability, it operates effectively across a wide temperature range, making it suitable for all climates. The Pilot Valve is easy to install, ensuring minimal downtime during maintenance or replacement. By choosing Source One Parts Center for your Bendix OEM parts, you can be confident in receiving high-quality components that enhance your vehicle's safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT (w/ Breather)
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Opening Pressure (Common CON / SUP)
31 PSI
Width
35.1 mm (1.38 in)
Length
56.9 mm (2.24 in)
Inlet Opening Pressure (Common CON / SUP)
75 PSI
Harmonized System (HS) Code
848120
Height
95.5 mm (3.76 in)
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.64 lb
