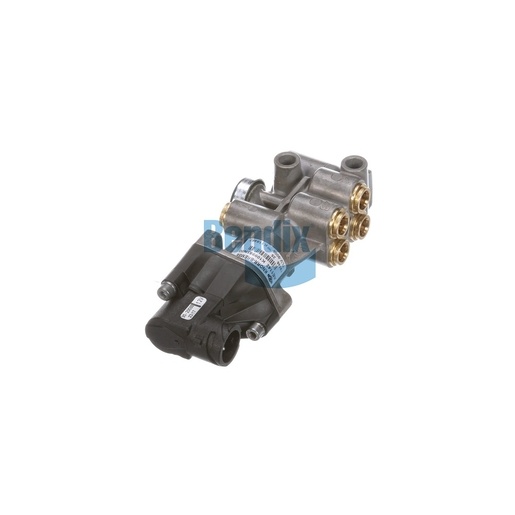

K118463
Lift Axle Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Lift Axle Valve is an essential component for managing lift axles in commercial vehicles, providing improved maneuverability and load management. This valve operates at a maximum pressure of 145 PSI and is designed to withstand extreme temperatures, ensuring reliable performance in various conditions. With multiple ports, it allows for efficient air management, facilitating the lifting and lowering of axles as needed. This functionality is critical for optimizing the vehicle's weight distribution, enhancing fuel efficiency, and prolonging tire life. Trusting in high-quality components like this Lift Axle Valve is vital for maintaining operational efficiency. Source One Parts Center is your premier source for genuine Bendix OEM parts, committing to quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
016-014-063: Valve - Quick Exhaust, Lift Axle Control
Voltage (Nominal)
12 Volts
Maximum Operating Pressure
145 PSI
Length
166.4 mm (6.55 in)
Maximum Operating Temperature
176 °F (80 °C)
Supply Port 1 - Lift Bag
3/8 PTC
Supply Port 11 - Suspension Bag
3/8 PTC
Delivery Port 21 - Suspension Bag
3/8 PTC (2x)
Delivery Port 23 - Lift Bag
3/8 PTC (2x)
Width
39.9 mm (1.57 in)
Height
68.6 mm (2.7 in)
Harmonized System (HS) Code
848120
Connector Type
DIN 72585-A1-2.1
Cautionary Note(s)
Do not install with Exhaust Port down (toward the road).
Exhaust Port
Dust Shield
Country of Origin
Hungary
Mounting
Ø .335 IN (2x)
Weight
1.13 lb
