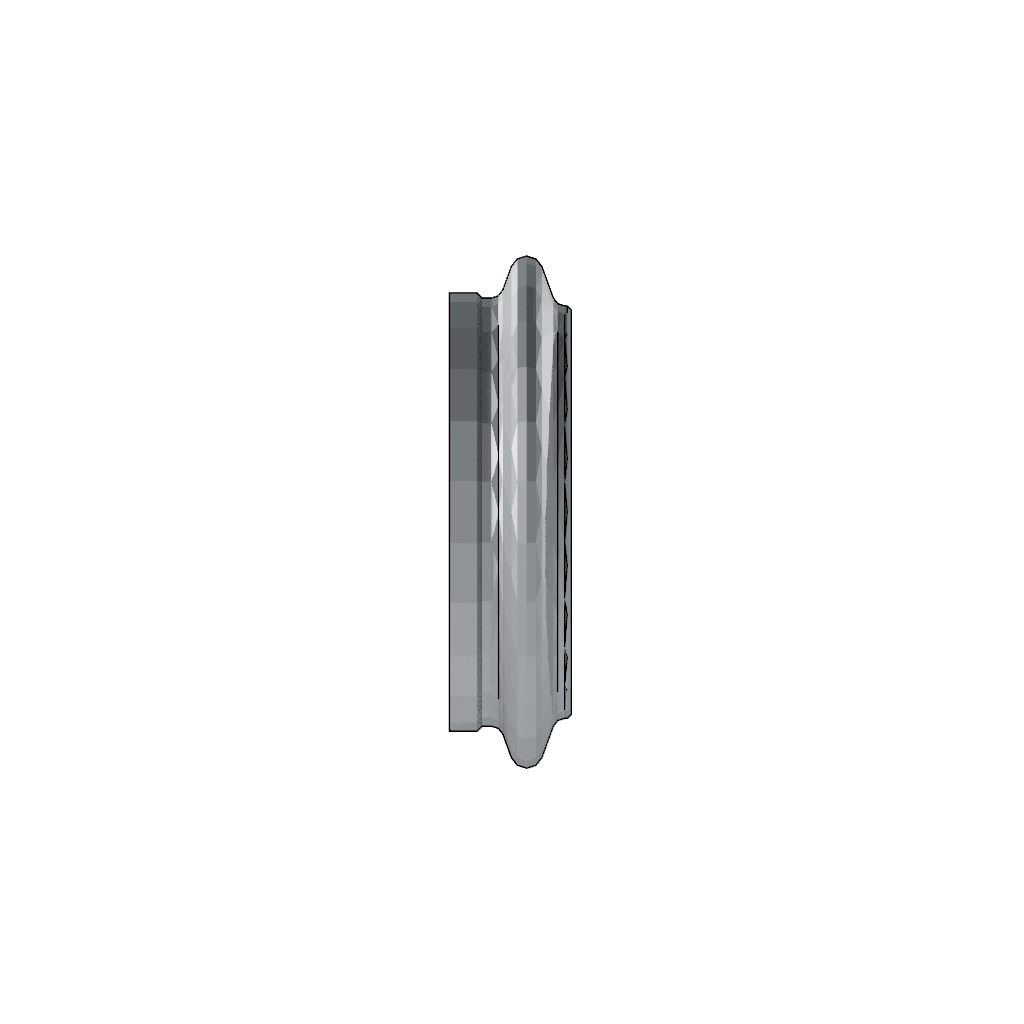

4965125
v Band Adapter
Cummins®

Introduction

The Cummins 4965125 V Band Adapter is a component designed for use in commercial truck applications, specifically within the exhaust system. Its role is to facilitate secure connections between various exhaust components, ensuring efficient and reliable operation of the exhaust system.

Basic Concepts of V Band Adapters

V Band Adapters are clamping devices used to connect exhaust components. They operate using a V-shaped band that, when tightened, compresses a gasket between two flanges, creating a seal. The design of V Band clamps allows for quick and easy installation and removal, making them a popular choice in exhaust systems. The mechanism involves a bolt that runs through the center of the V band, which, when tightened, pulls the two ends of the band together, compressing the gasket and creating a tight seal ¹.

Purpose of the 4965125 V Band Adapter

This Cummins part plays a role in the operation of a truck’s exhaust system by providing a secure connection between different exhaust components. This adapter ensures that the exhaust gases flow smoothly from the engine to the muffler and out of the tailpipe, minimizing leaks and maintaining system efficiency.

Key Features

The 4965125 V Band Adapter is constructed from durable materials, typically stainless steel, which enhances its resistance to corrosion and high temperatures. Its design includes precision-machined flanges to ensure a proper fit and seal. Additionally, the adapter may feature unique attributes such as an anti-rotation design to prevent loosening over time, contributing to its performance and durability.

Benefits of Using the 4965125 V Band Adapter

Using this Cummins part offers several advantages. It provides improved seal integrity, reducing the risk of exhaust leaks. The design allows for ease of installation, which can save time during maintenance or repair work. Furthermore, the adapter’s construction and design contribute to maintenance benefits, such as easier access for inspection and cleaning, which can enhance overall truck performance and efficiency.

Installation Process

Installing the 4965125 V Band Adapter requires specific tools, including a torque wrench, to ensure proper tightening. The process involves preparing the exhaust components by cleaning the flanges and ensuring the gasket is in place. The adapter is then positioned between the components, and the V band is tightened using the central bolt. It is important to follow the manufacturer’s torque specifications to achieve a secure and effective connection.

Troubleshooting Common Issues

Common problems with V Band Adapters include leaks or improper sealing. These issues can often be traced to incorrect installation, such as over-tightening or under-tightening the V band, or using a damaged gasket. Troubleshooting involves inspecting the connection for gaps or misalignment, ensuring the gasket is intact, and re-torquing the V band to the specified level. In some cases, replacing the gasket or adapter may be necessary.

Maintenance Tips

Regular maintenance of the 4965125 V Band Adapter is important for ensuring its longevity and optimal performance. This includes periodic inspection for signs of wear or corrosion, cleaning the adapter and flanges to remove any buildup, and checking the torque on the V band to ensure it remains secure. Replacement should be considered if there are signs of significant wear or if the adapter no longer provides a secure seal.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history of innovation and quality, Cummins has established itself as a trusted name in the commercial truck industry. The company is committed to delivering reliable and efficient components that meet the demanding requirements of commercial applications, ensuring customer satisfaction and performance ².

Cummins V Band Adapter 4965125 Compatibility

The Cummins V Band Adapter part number 4965125 is designed to fit a variety of Cummins engine models, ensuring a secure and leak-proof connection between the engine and its ancillary components. Below is a breakdown of the engine compatibility for this part:

6C8.3

The 6C8.3 engine benefits from the V Band Adapter 4965125, providing a reliable seal that is essential for maintaining engine performance and efficiency.

ISB/ISD4.5 CM2150 B119

This engine model also integrates seamlessly with the V Band Adapter 4965125, ensuring that the connection between the engine and its components is both robust and leak-resistant.

ISBE CM2150 and ISBE4 CM850

Both the ISBE CM2150 and ISBE4 CM850 engines are compatible with the V Band Adapter 4965125. This compatibility ensures that these engines can maintain optimal operational conditions by preventing leaks and ensuring a tight seal.

ISL9 CM2150 SN and ISL9.5 CM2880 L138

The V Band Adapter 4965125 is also suitable for the ISL9 CM2150 SN and ISL9.5 CM2880 L138 engines. This compatibility is crucial for maintaining the integrity of the engine’s connections and ensuring that the engine operates at peak performance.

Role of Part 4965125 V Band Adapter in Engine Systems

The V Band Adapter, specifically part 4965125, is an essential component in the arrangement of various engine systems, particularly those involving the Diesel Exhaust Fluid (DEF) system. This adapter facilitates a secure and efficient connection between different sections of the DEF system, ensuring that the fluid is delivered consistently and without leaks.

When integrating the V Band Adapter with a V Band Clamp Kit, the setup becomes more robust. The clamp kit, when used in conjunction with the adapter, provides a tight seal that is resistant to the high pressures and temperatures often encountered in engine systems. This combination is particularly beneficial in maintaining the integrity of the DEF system, which is sensitive to both temperature and pressure variations.

Conclusion

In summary, the V Band Adapter part 4965125 plays a significant role in the effective operation of engine systems by ensuring secure connections and maintaining the efficiency of fluid delivery within the DEF system. Its integration with other components like the V Band Clamp Kit enhances the overall reliability and performance of the engine system.
