3803153
w.p. Repair (major) Kit
Cummins®
IN STOCK
2 are currently available
Ships within 1 business day
$1,199.95
$1,427.94
This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This major repair kit is designed to facilitate comprehensive water pump repairs, restoring efficiency and extending the pump's service life. It includes all necessary components for a complete overhaul, ensuring reliable operation and preventing engine overheating. Ideal for maintaining cooling system performance, it's crucial for engine health and efficiency.
SPECIFICATIONS
Hazardous Material
Non-Hazardous (NOI, ICE/Auto)
Package Dimensions
7.3 x 5.1 x 4.2 in
Weight
2.9 lb

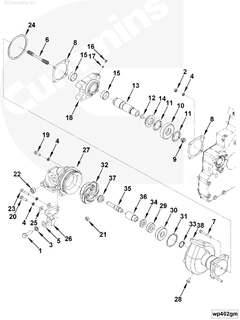

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Pipe Plug | 1 | S962 |
| Ball Bearing | 1 | S16069 |
| Retaining Ring | 1 | 70183 |
| O Ring Seal | 1 | 145623 |
| Retaining Ring | 1 | 205258 |
| Water Transfer Connection Gasket | 1 | 205288 |
| Water Transfer Connection Gasket | 1 | 205289 |
| Oil Seal | 1 | 206948 |
| O Ring Seal | 2 | 3028291 |
| Water Pump Shaft | 1 | 3042827 |
| Water Pump Seal | 1 | 3071085 |
| Ball Bearing | 1 | 3077646 |
| Water Pump Gasket | 1 | 3202283 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
