3415691
Alternator
Cummins®

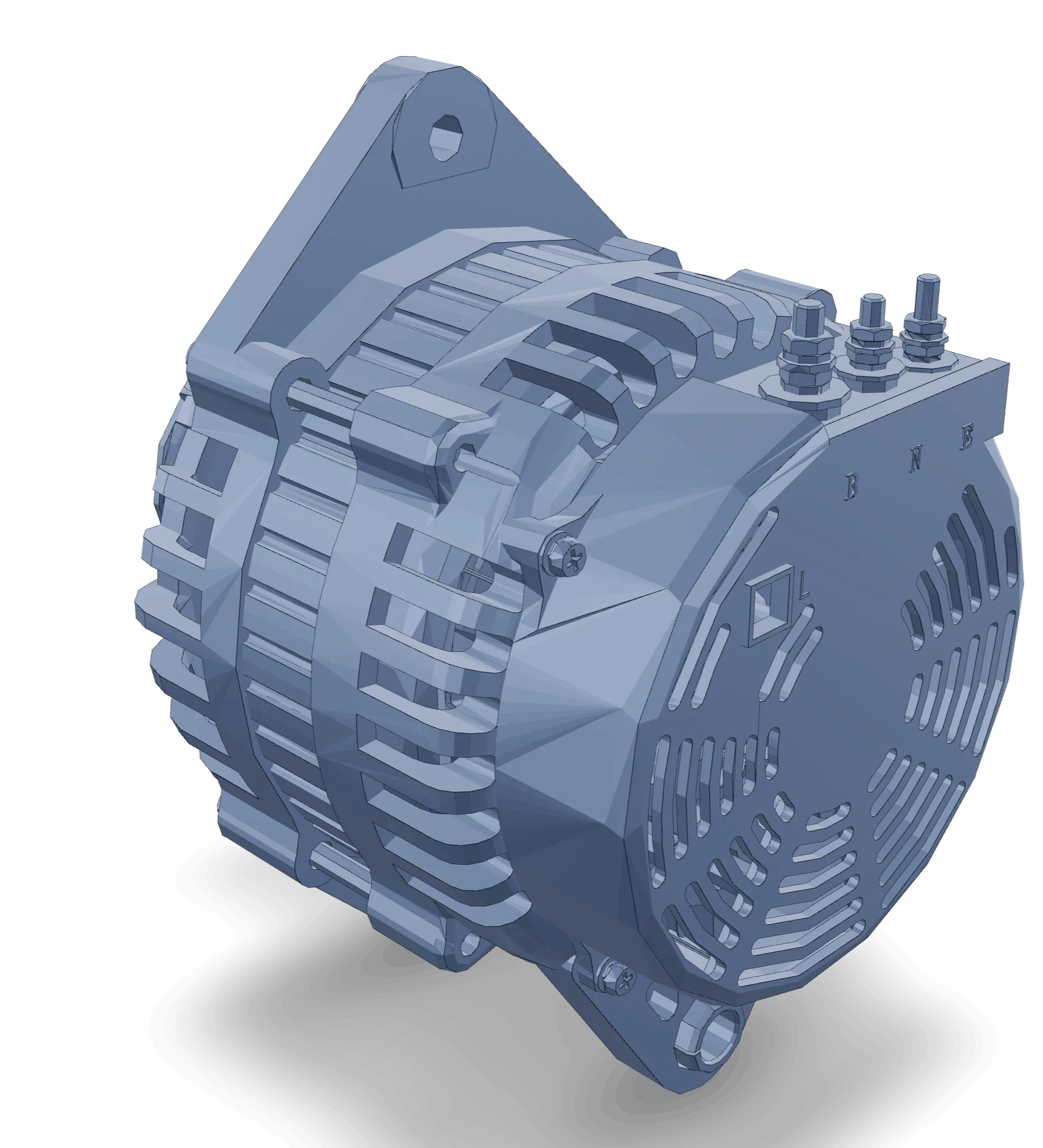

The Cummins 3415691 Alternator is a component designed for use in commercial trucks, playing a significant role in the vehicle’s electrical system. Its primary function is to generate electrical power to charge the battery and supply electricity to the truck’s electrical components while the engine is running. This ensures that the truck operates efficiently and reliably, making the alternator a vital part of the vehicle’s overall system ².

Basic Concepts of Alternators

An alternator is a device that converts mechanical energy into electrical energy. It functions by using a rotor that spins within a stationary stator, generating an alternating current (AC) that is then converted into direct current (DC) by a rectifier. This DC power is used to charge the vehicle’s battery and power electrical components. Alternators differ from generators in that they produce AC, which is then converted to DC, whereas generators directly produce DC ³.

Purpose of the 3415691 Alternator in Truck Operation

The 3415691 Alternator serves a critical role in the electrical system of a commercial truck. It is responsible for maintaining the battery’s charge level, ensuring that there is sufficient power available for starting the engine and operating electrical systems such as lights, radios, and other accessories. Additionally, it supports the truck’s electrical demands during operation, contributing to the overall efficiency and functionality of the vehicle ⁴.

Key Features of the 3415691 Alternator

The 3415691 Alternator is characterized by its robust design and construction. It incorporates high-quality materials and advanced technological features that enhance its performance and durability. The alternator is built to withstand the demanding conditions of commercial truck operation, ensuring reliable performance over time. Cummins has integrated specific technological advancements to improve efficiency and reliability, making this alternator a preferred choice for many truck operators ¹.

Benefits of Using the 3415691 Alternator

Utilizing the 3415691 Alternator offers several advantages. Its reliability ensures consistent performance, reducing the likelihood of unexpected failures. The efficiency of the alternator means it can effectively meet the electrical demands of the truck, contributing to fuel efficiency. Additionally, its durability ensures a longer service life, reducing the need for frequent replacements and maintenance, which can lead to cost savings over time ⁴.

Installation Considerations

When installing the 3415691 Alternator, it is important to follow guidelines and best practices to ensure proper functionality and compatibility with the truck’s electrical system. Specific requirements or precautions may apply, depending on the truck model. It is advisable to consult the manufacturer’s instructions or a professional technician to ensure a correct and safe installation ³.

Troubleshooting Common Issues

Alternators can encounter issues such as charging problems or electrical faults. Common troubleshooting steps include checking the alternator’s connections, inspecting the belt for proper tension, and testing the output voltage to diagnose and resolve these issues. Regular maintenance and inspections can help prevent many common problems ⁴.

Maintenance Tips

To ensure the longevity and optimal performance of the 3415691 Alternator, regular maintenance practices are recommended. This includes periodic inspections to check for wear or damage, cleaning the alternator to remove any debris, and ensuring all connections are secure. Following these maintenance tips can help maintain the alternator’s efficiency and reliability ¹.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and power generation products. With a strong reputation in the commercial vehicle industry, Cummins is known for its commitment to quality and innovation. The 3415691 Alternator is a testament to Cummins’ dedication to providing reliable and high-performance components for the commercial truck market ¹.

Compatibility with Engine Models

The Cummins alternator part number 3415691 is designed to be compatible with a range of engine models, ensuring reliable power generation across various applications. This alternator is engineered to fit seamlessly with the following engines:

• 6C8.3: The 6C8.3 engine benefits from the robust power output provided by the 3415691 alternator, ensuring consistent electrical supply to critical systems.
• C GAS PLUS CM556: For the C GAS PLUS CM556 engine, the 3415691 alternator offers efficient power generation, maintaining optimal performance levels under varying operational conditions.
• ISL9 CM2150 SN: The ISL9 CM2150 SN engine is equipped with the 3415691 alternator, which provides reliable electrical support, enhancing the engine’s overall efficiency and durability.
• L8.9 and L8.9 L121: Both the L8.9 and L8.9 L121 engines are compatible with the 3415691 alternator. This alternator ensures that these engines receive the necessary power to operate smoothly, supporting both standard and heavy-duty applications.
• L9.5 L117: The L9.5 L117 engine is another model that can utilize the 3415691 alternator. This alternator is designed to meet the specific power requirements of this engine, ensuring reliable performance in demanding environments.

By integrating the 3415691 alternator into these engines, Cummins ensures that users can expect consistent and dependable power generation, enhancing the overall reliability and efficiency of their machinery ¹.

Role of Part 3415691 Alternator in Engine Systems

The alternator, specifically part 3415691, is integral to the functionality of various engine systems. It is primarily responsible for generating electrical power to recharge the battery and power the vehicle’s electrical systems while the engine is running.

Electrical System Integration

In the electrical system, the alternator works in conjunction with the battery to ensure a consistent power supply. It converts mechanical energy from the engine into electrical energy via a rotor spinning inside a stator, producing alternating current (AC) which is then rectified to direct current (DC) to charge the battery and power electrical components ².

Ignition System Support

For the ignition system, the alternator provides the necessary electrical power to the ignition coil. This ensures that the spark plugs receive the correct voltage to ignite the air-fuel mixture in the combustion chambers efficiently ³.

Fuel Injection System

In fuel-injected engines, the alternator supplies power to the fuel injection system. This includes the fuel pump, injectors, and the engine control unit (ECU). Consistent electrical power is essential for the precise operation of these components, ensuring optimal fuel delivery and combustion ⁴.

Accessory Drive System

The alternator is typically driven by the engine’s serpentine belt, which is part of the accessory drive system. This system also powers other components such as the power steering pump, air conditioning compressor, and water pump. The alternator’s efficient operation ensures that these accessories receive the necessary power without overloading the engine ¹.

Charging System

As part of the charging system, the alternator maintains the battery’s charge level. It works with the voltage regulator to monitor and adjust the output voltage, preventing overcharging or undercharging of the battery. This balance is vital for the longevity of the battery and the overall health of the electrical system ².

Starter System Interaction

Although the starter motor is powered by the battery, a well-functioning alternator ensures that the battery remains charged. This is particularly important during cranking, where the starter motor draws a significant amount of power. A robust alternator ensures that the battery can quickly recover from the drain caused by starting the engine ³.

Lighting and Accessory Power

The alternator also powers various lighting systems, including headlights, taillights, and interior lights. Additionally, it supplies power to other accessories such as the radio, power windows, and climate control systems, ensuring they operate smoothly and reliably ⁴.

Conclusion

The Cummins 3415691 Alternator is a critical component in the electrical system of commercial trucks, ensuring reliable power generation and efficient operation of the vehicle’s electrical systems. Its robust design, compatibility with various engine models, and the benefits it offers make it a preferred choice for truck operators. Regular maintenance and proper installation are essential to maximize its performance and longevity.
