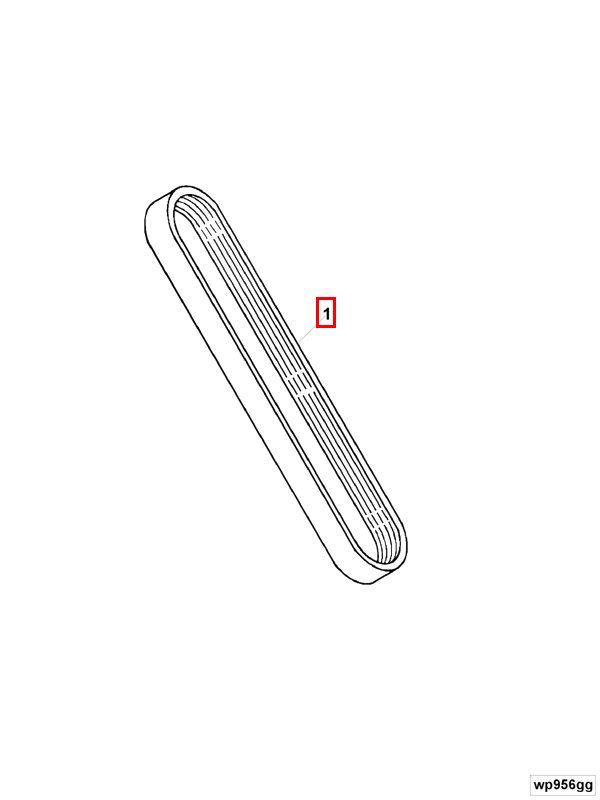

3933357
V Ribbed Belt
Cummins®

The Cummins 3933357 V Ribbed Belt is a component designed for use in commercial trucks. Its purpose is to facilitate the transfer of power from the engine to various auxiliary components, ensuring the efficient operation of the vehicle. This belt is significant in maintaining the functionality of critical systems within the truck, contributing to overall performance and reliability ¹.

Basic Concepts of V Ribbed Belts

V Ribbed Belts are characterized by their trapezoidal cross-section, which allows them to engage more effectively with pulleys compared to flat belts. These belts are constructed from multiple layers, including a durable core and a flexible outer layer, which together provide strength and flexibility. Within a truck’s engine system, V Ribbed Belts drive components such as the alternator, water pump, and power steering pump, ensuring these systems operate in sync with the engine’s rotation ².

Role of the 3933357 V Ribbed Belt in Truck Operation

The 3933357 V Ribbed Belt plays a specific role in the operation of a truck by connecting the crankshaft to various engine accessories. This connection allows for the transfer of rotational force, enabling the alternator to generate electricity, the water pump to circulate coolant, and other accessories to function as needed. The belt’s design ensures a secure fit around pulleys, minimizing slippage and maximizing efficiency in power transmission ³.

Key Features of the 3933357 V Ribbed Belt

The 3933357 V Ribbed Belt is notable for its material composition, which includes a robust core and a high-quality outer layer designed for durability and flexibility. Its design features multiple ribs that increase the contact surface with pulleys, enhancing grip and reducing the risk of slippage. Additionally, the belt is engineered to withstand the high temperatures and dynamic loads typical of commercial truck engines, ensuring reliable performance under demanding conditions.

Benefits of Using the 3933357 V Ribbed Belt

Utilizing the 3933357 V Ribbed Belt in commercial trucks offers several advantages. Its design contributes to improved efficiency in power transmission, reducing the load on the engine and enhancing overall performance. The belt’s durability ensures long-term reliability, minimizing the need for frequent replacements. Furthermore, its performance characteristics support the efficient operation of engine accessories, contributing to the truck’s overall effectiveness and longevity.

Troubleshooting and Maintenance Tips

To ensure the optimal performance and longevity of the 3933357 V Ribbed Belt, regular inspection and maintenance are recommended. Signs of wear, such as cracks or fraying, should be addressed promptly to prevent belt failure. Maintenance practices include checking the belt’s tension and alignment, ensuring it runs true on pulleys, and replacing it according to the manufacturer’s guidelines or when signs of wear are evident. Troubleshooting common issues, such as slippage or noise, often involves adjusting tension or investigating pulley condition.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history of innovation and a strong reputation in the industry, Cummins is committed to producing high-quality components that meet the demanding requirements of commercial and industrial applications. The company’s focus on reliability, performance, and customer satisfaction underscores its position as a trusted provider of automotive and engine components.

V Ribbed Belt 3933357 Compatibility with Cummins Engines

The V Ribbed Belt part number 3933357, manufactured by Cummins, is designed to fit a variety of Cummins engines. This belt is crucial for the proper functioning of engine accessories such as the alternator, water pump, and air conditioning compressor. Below is a detailed compatibility overview of this belt with the specified Cummins engines:

ISC Series Engines

• ISC CM554
• ISC CM850

The V Ribbed Belt 3933357 is compatible with both the ISC CM554 and ISC CM850 engines. These engines are known for their robust performance and reliability, often used in heavy-duty applications.

ISF Series Engines

• ISF2.8 CM2220 F117
• ISF2.8 CM2220 F129

This belt fits the ISF2.8 CM2220 F117 and ISF2.8 CM2220 F129 engines. These engines are part of the Cummins ISF series, which is recognized for its fuel efficiency and power output, making them suitable for a range of industrial and commercial applications.

ISL Series Engines

• ISL CM554
• ISL9 CM2150 SN

The V Ribbed Belt 3933357 is also compatible with the ISL CM554 and ISL9 CM2150 SN engines. The ISL series is known for its versatility and is often used in on-highway and vocational applications.

QSC Series Engines

• QSC8.3 CM554
• QSC8.3 CM850 (CM2850)

This belt is suitable for the QSC8.3 CM554 and QSC8.3 CM850 (CM2850) engines. These engines are part of the Quantron Series, which is designed for high-efficiency and low-emission performance, making them ideal for various industrial applications.

QSL Series Engines

• QSL9 CM554
• QSL9 CM850 (CM2850)

The V Ribbed Belt 3933357 fits the QSL9 CM554 and QSL9 CM850 (CM2850) engines. These engines are part of the Quantron Series, similar to the QSC series, and are engineered for efficiency and reduced emissions.

By ensuring the correct fitment of the V Ribbed Belt 3933357, engine performance and longevity can be maintained, preventing potential issues related to accessory drive systems.

Role of Part 3933357 V Ribbed Belt in Engine Systems

The V Ribbed Belt, identified by part number 3933357, is an essential component in the efficient operation of various engine systems. This belt is responsible for transmitting power from the engine’s crankshaft to multiple auxiliary components, ensuring they function correctly.

Drive System Integration

In the drive system, the V Ribbed Belt connects the crankshaft to the alternator. This connection allows the alternator to generate electrical power, which is vital for the vehicle’s electrical systems, including lighting, ignition, and battery charging. The belt’s ribbed design enhances grip and reduces slippage, ensuring consistent power transfer even under varying engine loads.

Alternator Functionality

The alternator relies on the V Ribbed Belt to convert mechanical energy from the engine into electrical energy. This conversion is essential for maintaining the vehicle’s battery charge and powering onboard electronics. The belt’s durability and tension are key factors in the alternator’s efficiency and reliability.

Water Pump Drive

The V Ribbed Belt also plays a significant role in the water pump drive system. By connecting the crankshaft to the water pump, it ensures that coolant is circulated through the engine, maintaining optimal operating temperatures. This circulation prevents overheating, which can lead to engine damage. The belt’s consistent power transmission is vital for the water pump’s continuous operation.

Pulley System

Within the pulley system, the V Ribbed Belt engages with various pulleys attached to the alternator, water pump, and other auxiliary components. These pulleys adjust the belt’s path and tension, optimizing power distribution. The belt’s flexibility and strength are crucial for withstanding the dynamic forces exerted by the rotating pulleys.

Water Pump Drive Mechanism

The water pump drive mechanism is directly influenced by the V Ribbed Belt’s performance. As the belt rotates the water pump pulley, it drives the impeller inside the pump, which moves coolant through the engine’s passages. The belt’s precise fit and proper tension are essential for the water pump’s efficient operation, ensuring effective coolant flow and engine temperature regulation.

Conclusion

In summary, the V Ribbed Belt (part 3933357) is integral to the functioning of the drive system, alternator, water pump, and pulley system. Its role in power transmission and component operation underscores its importance in maintaining the overall performance and reliability of the engine.
