3925193

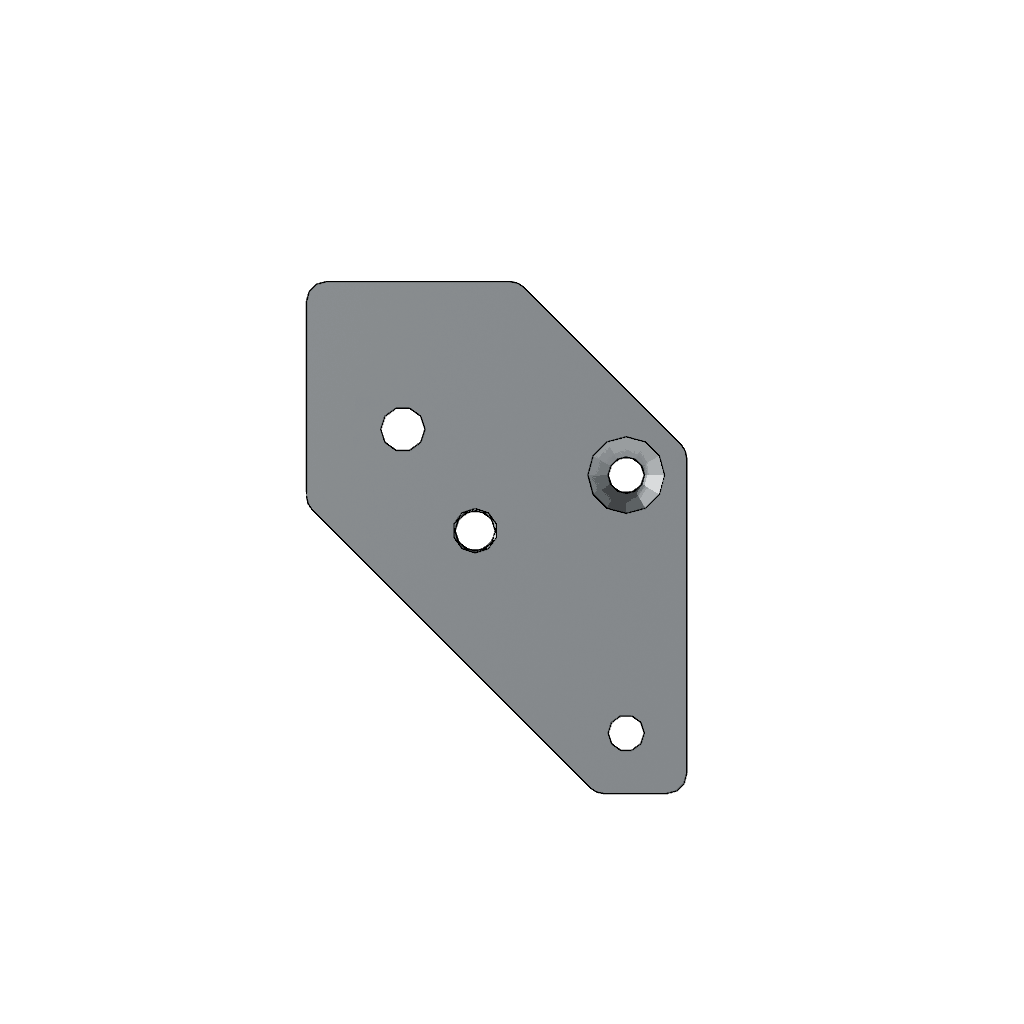

Belt Tensioner Bracket
Cummins®

Introduction

The Belt Tensioner Bracket 3925193 is a component manufactured by Cummins, a well-established name in the commercial truck industry. This bracket is integral to the operation of commercial trucks, ensuring the efficient functioning of the drive belt system. Its role is to maintain the correct tension in the belts that drive various accessories in the truck’s engine system.

Basic Concepts

Belt tensioner brackets are designed to keep drive belts at the proper tension. This is crucial for the belts to function effectively, transferring power from the engine to accessories such as the alternator, water pump, and air conditioning compressor. Without adequate tension, belts can slip, leading to inefficient power transmission and potential damage to the belt and driven components ¹.

Purpose of the Belt Tensioner Bracket 3925193

The Belt Tensioner Bracket 3925193 is specifically engineered to support the tensioner mechanism in Cummins engines. It plays a role in maintaining the correct tension in the drive belts, which is vital for the efficient operation of the truck’s accessory drive systems. Proper tension ensures that power is transmitted smoothly and effectively, reducing the risk of belt slippage and prolonging the life of both the belts and the accessories they drive.

Key Features

The Belt Tensioner Bracket 3925193 is constructed from durable materials, ensuring it can withstand the rigors of commercial truck operation. Its design includes specific mounting configurations that allow for easy installation and integration with Cummins engines. The bracket is engineered to be compatible with a range of Cummins engine models, ensuring versatility across different truck applications.

Benefits

One of the primary advantages of the Belt Tensioner Bracket 3925193 is its contribution to improved belt longevity. By maintaining optimal belt tension, it reduces the wear and tear on the belts, leading to fewer replacements and lower maintenance costs. Additionally, the bracket’s design helps in reducing the overall maintenance requirements of the truck’s drive system, enhancing its performance and reliability.

Troubleshooting and Maintenance

Common issues with belt tensioner brackets include misalignment and wear. Regular inspection of the bracket and the tensioner mechanism can help identify these issues early. Maintenance practices should include checking the alignment of the bracket, ensuring it is securely mounted, and verifying that the tensioner is functioning correctly. Addressing these issues promptly can prevent more significant problems and ensure the continued efficient operation of the truck’s drive system.

Installation Considerations

Proper installation of the Belt Tensioner Bracket 3925193 is key to its effective function. This includes adhering to torque specifications for mounting bolts to ensure the bracket is securely fastened. Alignment procedures should be followed to guarantee that the tensioner operates within its designed parameters. Compatibility with other components in the truck’s drive system must also be considered to ensure seamless integration and operation.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a strong reputation in the commercial truck industry for producing reliable and high-performance engines and components. Their product offerings include a wide range of diesel and natural gas engines, as well as related technologies and services.

Compatibility with Cummins Engines

The Belt Tensioner Bracket part number 3925193, manufactured by Cummins, is designed to fit a range of Cummins engines. This part is essential for maintaining the proper tension of the engine’s belt system, ensuring efficient operation and longevity of the belt and associated components.

Compatible Engines

• 6B5.9
• B5.9 G
• B5.9 GAS PLUS CM556
• ISB CM550
• QSB5.9 44 CM550

These engines, while differing in specific configurations and applications, share common design elements that allow the Belt Tensioner Bracket 3925193 to be universally applicable. The bracket’s design accommodates the unique layout of each engine’s belt routing system, ensuring a secure fit and reliable performance.

Grouping of Compatible Engines

The engines listed can be grouped based on their series and common features:

• 6B5.9 and B5.9 G: These engines are part of the B-series family, known for their robust design and versatility in various applications.
• B5.9 GAS PLUS CM556: This engine combines the B5.9’s reliability with enhanced features, making it suitable for demanding tasks.
• ISB CM550 and QSB5.9 44 CM550: These engines belong to the ISB and QSB series, respectively, and are recognized for their power and efficiency in heavy-duty applications.

By ensuring the Belt Tensioner Bracket 3925193 is correctly installed, users can maintain optimal belt tension, which is crucial for the efficient operation of these engines. This part’s compatibility across these models underscores its versatility and importance in maintaining engine performance.

Understanding the Role of Belt Tensioner Bracket in Engine Systems

In the orchestration of an engine’s auxiliary systems, the Belt Tensioner Bracket assumes a significant role by ensuring the optimal operation of various components through precise belt tension management.

Integration with the Alternator Drive

The alternator drive system relies on a consistent and appropriate tension to efficiently transfer power from the engine to the alternator. The Belt Tensioner Bracket is instrumental in maintaining this tension, allowing the alternator to generate electricity with maximum efficiency. Without proper tension, the belt may slip, leading to inefficient power transfer and potential alternator failure.

Coordination with the Drive System

In a multi-belt drive system, the Belt Tensioner Bracket plays a pivotal role in coordinating the tension across all belts. This ensures that each driven component, whether it’s the alternator, water pump, or other auxiliary systems, receives the necessary power without overloading the belt. Proper tensioning prevents premature wear and tear on the belts and the components they drive.

Ensuring Alternator Functionality

The alternator is a key component in the engine’s electrical system, responsible for charging the battery and powering the electrical accessories while the engine is running. The Belt Tensioner Bracket helps maintain the correct belt tension on the alternator pulley, ensuring smooth and reliable operation. This is essential for consistent electrical output and the longevity of the alternator.

Supporting the Pulley System

Pulleys are integral to the belt drive system, guiding the belt and transferring engine power to various components. The Belt Tensioner Bracket supports the pulley system by keeping the belt properly tensioned. This not only enhances the efficiency of power transfer but also reduces the risk of belt misalignment or damage.

Facilitating Water Pump Drive

The water pump is vital for engine cooling, circulating coolant through the engine to prevent overheating. The Belt Tensioner Bracket ensures that the belt driving the water pump maintains the correct tension. This is essential for the water pump’s efficient operation, directly impacting the engine’s thermal management and overall performance.

Conclusion

The Belt Tensioner Bracket 3925193 is a fundamental component in the engine’s belt drive system, playing a key role in the efficient and reliable operation of the alternator, pulleys, and water pump. Its proper function is essential for the harmonious operation of these interconnected systems.
