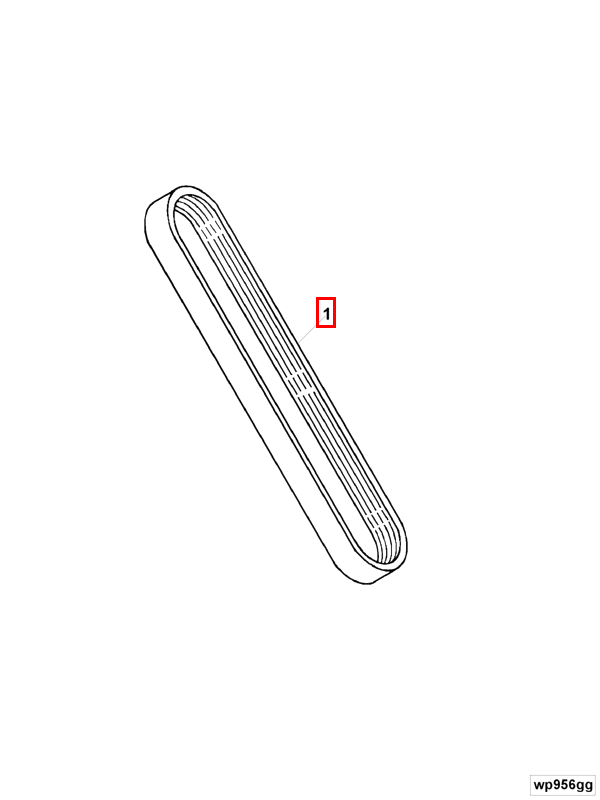

3978289
V Ribbed Belt
Cummins®

The 3978289 V-Ribbed Belt, a component manufactured by Cummins, is designed for use in commercial trucks. It plays a significant role in the efficient operation of the vehicle’s engine and its accessories.

Basic Concepts of V-Ribbed Belts

V-Ribbed Belts, characterized by their trapezoidal cross-section, are used in automotive applications to transfer power from the engine to various accessories such as the alternator, power steering pump, and air conditioning compressor. They offer greater power transmission capabilities and are less prone to slipping due to their design ¹.

Purpose of the 3978289 V-Ribbed Belt

This Cummins part ensures that engine accessories receive the necessary power to function correctly, contributing to the truck’s efficiency and operational capabilities.

Key Features

The 3978289 V-Ribbed Belt is constructed from high-quality materials, including a robust rubber compound and a durable fabric core, which provide resistance to wear and tear. Its design includes multiple ribs that increase the contact surface area with the pulleys, improving power transmission efficiency and reducing the risk of slippage. The belt is engineered to withstand the demanding conditions of heavy-duty applications, ensuring long-lasting performance ².

Benefits

Utilizing this Cummins part offers several advantages. Its design and material composition contribute to improved efficiency in power transmission, reducing the load on the engine. The belt’s durability and resistance to wear lead to reduced maintenance requirements, making it a cost-effective solution for commercial truck operators. Furthermore, the reliable performance of the belt enhances the overall reliability of the truck, ensuring that engine accessories operate smoothly and efficiently ³.

Installation

Proper installation of the 3978289 V-Ribbed Belt is crucial for ensuring optimal performance and longevity. It is important to follow manufacturer guidelines for tensioning and alignment during installation. The belt should be routed correctly around all pulleys, and tension should be adjusted according to the manufacturer’s specifications to prevent excessive wear or slippage. Careful attention to these details during installation will help maintain the belt’s efficiency and durability.

Troubleshooting

Common issues with V-Ribbed Belts include wear, slippage, and damage. Identifying these problems early can prevent more significant issues down the line. Signs of wear include cracks or fraying on the belt’s surface, while slippage may be indicated by a squealing noise from the engine area. Addressing these issues promptly, either through adjustment or replacement, is important for maintaining the belt’s performance and the truck’s operational efficiency.

Maintenance

Regular maintenance of the 3978289 V-Ribbed Belt is key to ensuring its continued reliable operation. This includes periodic inspection for signs of wear or damage, cleaning the belt and pulleys to remove any buildup that could affect performance, and replacing the belt according to the manufacturer’s recommended intervals. Adhering to these maintenance practices will help extend the belt’s lifespan and maintain the truck’s performance.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes diesel and natural gas engines, as well as related technologies. With a history spanning over a century, Cummins has established a reputation for innovation, quality, and reliability in the commercial vehicle industry. The company’s commitment to excellence is reflected in its wide range of products, including the 3978289 V-Ribbed Belt, which is designed to meet the demanding requirements of heavy-duty applications.

V-Ribbed Belt 3978289 Compatibility with Cummins Engines

The V-Ribbed Belt part number 3978289, manufactured by Cummins, is designed to fit a variety of Cummins engines. This belt is crucial for the proper functioning of the engine’s ancillary systems, ensuring that components such as the alternator, water pump, and air conditioning compressor operate efficiently.

Compatible Engines

• B4.5 CM2350 B129B
• F3.8 CM2350 F120B
• F3.8 CM2350 F128C
• F3.8 CM2620 F137B
• F4.5 CM2620 F139B
• ISB4.5 CM2350 B104
• ISC8.3 CM2250
• ISL9 CM2250
• QSC8.3 CM850 (CM2850)
• QSF2.8 CM2880 F105
• QSF2.8 CM2880 F114
• QSF3.8 CM2350 F107
• QSF3.8 CM2880 F112
• QSL8.9 CM2150 L141
• QSL9 CM2250
• QSL9 CM2350 L102
• QSL9 CM850 (CM2850)

Grouping by Engine Series

CM2350 Series

• F3.8 CM2350 F120B
• F3.8 CM2350 F128C
• F3.8 CM2350 F107
• ISB4.5 CM2350 B104
• QSL9 CM2350 L102

CM2620 Series

• F3.8 CM2620 F137B
• F4.5 CM2620 F139B

CM2250 Series

• ISC8.3 CM2250
• ISL9 CM2250
• QSL9 CM2250

CM850 (CM2850) Series

• QSC8.3 CM850 (CM2850)
• QSL9 CM850 (CM2850)

CM2880 Series

• QSF2.8 CM2880 F105
• QSF2.8 CM2880 F114
• QSF3.8 CM2880 F112

CM2150 Series

• QSL8.9 CM2150 L141

This belt is engineered to withstand the rigors of engine operation, providing durability and reliability. It is essential to ensure that the correct belt is used for each engine to maintain optimal performance and prevent potential mechanical failures.

Role of Part 3978289 V-Ribbed Belt in Engine Systems

The 3978289 V-Ribbed Belt is an essential component in the efficient operation of various engine systems. Its primary function is to transmit power from the engine’s crankshaft to multiple auxiliary components, ensuring they operate in sync with the engine’s performance.

Power Transmission to Auxiliary Components

The V-Ribbed Belt efficiently transfers rotational force from the crankshaft to several key components. This transmission is vital for the proper functioning of these parts, which include:

• Water Pump: The belt drives the water pump, which circulates coolant through the engine. This circulation helps maintain optimal engine temperature, preventing overheating and ensuring consistent performance.

• Front Drive: In systems where a front drive is present, the belt facilitates the transfer of power to this component. The front drive may be responsible for operating other accessories or systems within the engine compartment, depending on the specific engine design.

• Other Drives: Beyond the water pump and front drive, the V-Ribbed Belt may also connect to other drives within the engine system. These could include the alternator, power steering pump, and air conditioning compressor, among others. Each of these components relies on the consistent power transmission provided by the belt to function correctly.

Ensuring Synchronized Operation

By connecting multiple components to the crankshaft, the 3978289 V-Ribbed Belt ensures that these parts operate in harmony with the engine’s rhythm. This synchronization is key to maintaining the engine’s efficiency and reliability.

The belt’s design allows it to grip pulleys effectively, minimizing slippage and maximizing power transfer. This grip is particularly important under varying engine loads and speeds, ensuring that components like the water pump continue to operate efficiently even when the engine is under stress.

Conclusion

In summary, the 3978289 V-Ribbed Belt plays a significant role in the coordinated operation of engine systems. Its ability to transmit power reliably and efficiently to various components underscores its importance in maintaining engine performance and longevity.
