3930772
Tube Brace
Cummins®

The Tube Brace 3930772, manufactured by Cummins, is a component designed for heavy-duty truck applications. Cummins, a well-established name in the automotive industry, is known for producing reliable and high-performance parts. This Cummins part is significant within the context of heavy-duty truck components due to its role in enhancing the structural integrity and operational efficiency of trucks ¹.

Basic Concepts of Tube Braces

A tube brace is a structural component used in vehicle frameworks to provide additional support and stability. It typically consists of a tubular structure that connects two or more points within a vehicle’s frame. The primary function of a tube brace is to reinforce the frame, distributing loads more effectively and reducing the risk of structural failure under stress. By enhancing the overall integrity and performance of a truck, tube braces contribute to safer and more durable vehicle operation ².

Purpose of the 3930772 Tube Brace

This part is specifically designed to play a role in the operation and structural stability of a truck. It supports other components by providing additional reinforcement to the truck’s frame, which is particularly important under heavy loads or in rugged operating conditions. This reinforcement enhances the durability of the truck, allowing it to withstand greater stresses and strains over time ³.

Key Features

The 3930772 features a robust material composition, typically made from high-strength steel, which ensures durability and resistance to wear and tear. Its design includes precise dimensions and fittings that allow for a secure and stable connection to the truck’s frame. Unique characteristics of this tube brace may include specialized coatings for corrosion resistance and a design that minimizes weight while maximizing strength ⁴.

Benefits

Using this Cummins part offers several advantages. It improves structural rigidity, which can lead to enhanced safety by reducing the likelihood of frame failure. Additionally, the increased rigidity can contribute to a potential increase in load-carrying capacity, allowing the truck to transport heavier loads without compromising safety or performance ⁵.

Installation Considerations

When installing the 3930772, it is important to follow guidelines and best practices to ensure proper integration with the truck’s frame. Preparatory steps may include cleaning the installation area and ensuring that all mounting points are free of debris. The tools required for installation typically include wrenches, drills, and possibly a torque wrench to ensure that all fasteners are tightened to the manufacturer’s specifications. Common pitfalls to avoid include over-tightening fasteners, which can lead to damage, and neglecting to check for proper alignment during installation.

Troubleshooting and Maintenance

To identify common issues related to the 3930772, regular inspections should be conducted to check for signs of wear, corrosion, or damage. Maintenance tips to ensure longevity include keeping the brace clean and free of debris, and applying protective coatings as needed. If wear or damage is detected, steps should be taken to address it promptly, which may involve repairs or replacement of the brace.

Compatibility and Application

The 3930772 is commonly used in specific types of trucks and models, with considerations for retrofitting or upgrading existing truck structures. It is important to verify compatibility with the specific truck model to ensure proper fit and function.

Cummins: Manufacturer Overview

Cummins is a manufacturer with a strong reputation in the industry for producing high-quality automotive and heavy-duty truck components. With a history of innovation and commitment to excellence, Cummins offers a wide range of products designed to enhance the performance, reliability, and durability of heavy-duty trucks. Their expertise and dedication to quality make them a trusted name in the automotive sector ⁶.

Tube Brace 3930772 Compatibility with Cummins Engines

This part is designed to fit a range of Cummins engines. This part is integral in providing structural support and stability to the engine’s components, ensuring optimal performance and longevity.

Compatible Engines

• 6B5.9
• ISC CM554
• ISL CM554
• QSB5.9 44 CM550
• QSC8.3 CM554
• QSL9 CM554

Grouping by Series

The Tube Brace 3930772 is compatible with several engine series, which can be grouped as follows:

• 6B5.9 Series
• ISC/ISL CM554 Series
• QSB/QSC/QSL CM554 Series

Each of these series represents a range of engines that share common design and engineering principles, making the Tube Brace 3930772 a versatile component across these models.

Role of Part 3930772 Tube Brace in Engine Systems

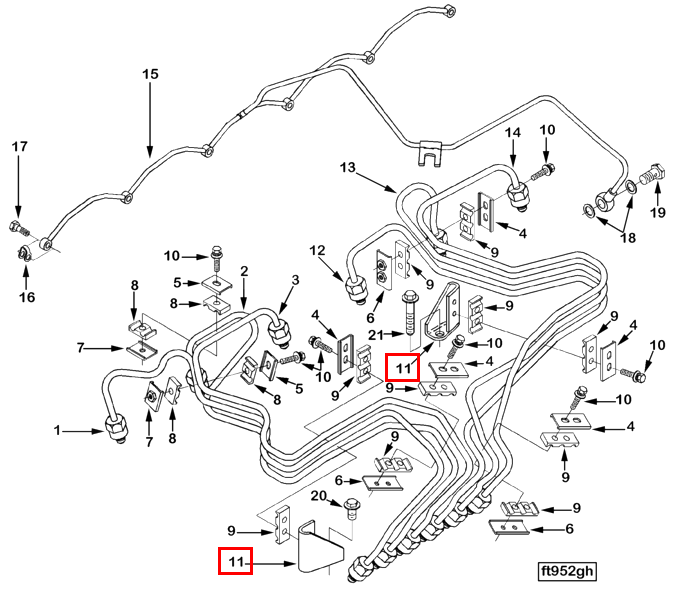

This part is an essential component in the structural integrity and efficient operation of various engine systems. It plays a significant role in supporting and securing the fuel plumbing, ensuring that the fuel lines remain stable and protected from potential damage due to vibrations or movement within the engine compartment.

In the context of fuel injectors, the Tube Brace provides necessary support to the injector fuel supply tube. This support is vital for maintaining the precise alignment and stability of the fuel supply tube, which is critical for the consistent and accurate delivery of fuel to the injectors. Proper alignment ensures that the injectors receive a steady fuel supply, which is essential for optimal engine performance and fuel efficiency.

Furthermore, the Tube Brace contributes to the overall integrity of the injector plumbing. By securing the plumbing components in place, it helps prevent leaks and ensures that the fuel system operates under the correct pressure conditions. This is particularly important in high-performance engines where fuel delivery precision can significantly impact engine output and reliability.

Conclusion

In summary, the 3930772 Tube Brace is a key component in maintaining the structural and operational integrity of the fuel system within engine components, ensuring reliable and efficient performance.
