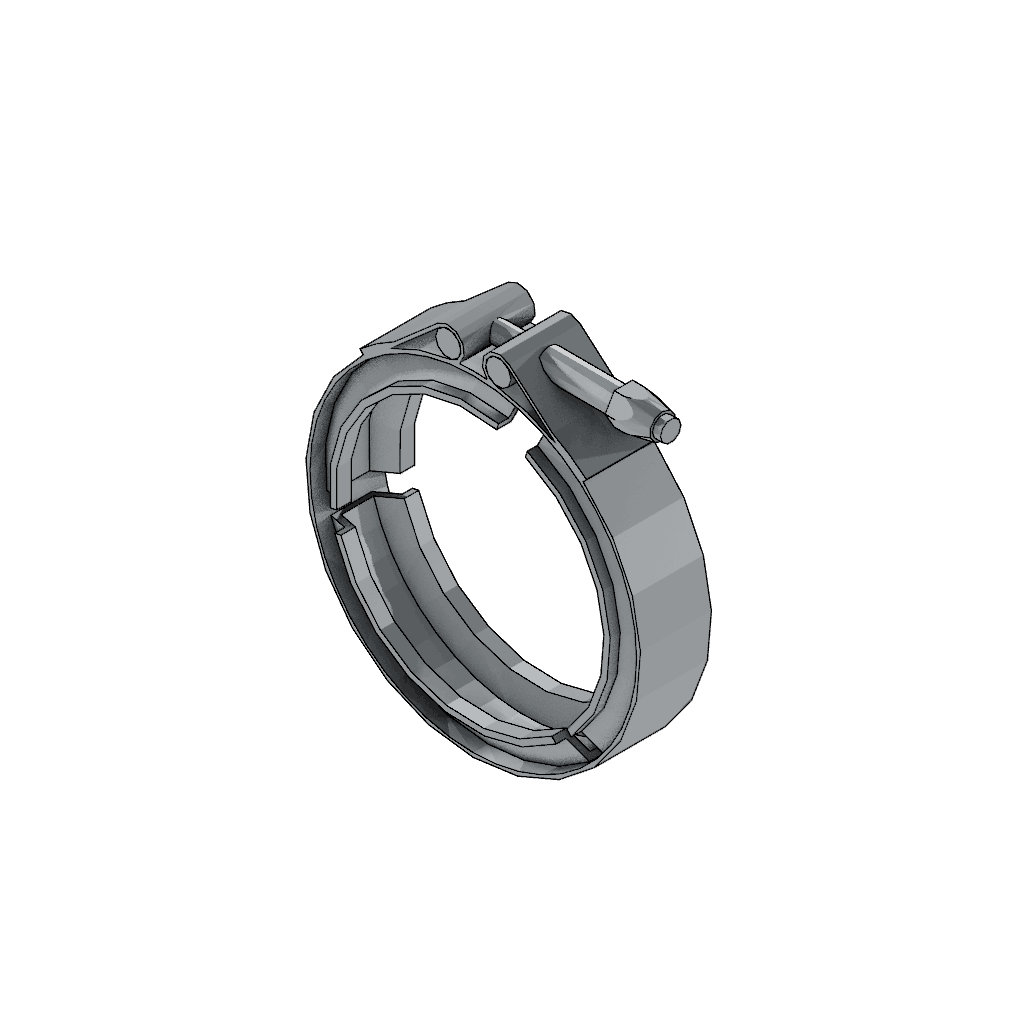

3007219
v Band Clamp
Cummins®

The Cummins 3007219 V Band Clamp is a component designed for use in commercial truck maintenance and operation. It serves a specific function within the truck’s exhaust and intake systems, contributing to the overall efficiency and reliability of the vehicle. Understanding its purpose and significance is key to maintaining optimal truck performance.

Basic Concepts of V Band Clamps

V Band Clamps are mechanical fasteners used to connect pipes and fittings in various systems. They operate by compressing a metal band around the pipe and fitting, creating a secure and leak-proof seal. In the automotive industry, these clamps are widely used due to their efficiency in sealing, ease of installation, and durability. They are particularly favored in high-vibration environments, such as those found in commercial trucks ¹.

Role of the 3007219 V Band Clamp in Truck Operation

This Cummins part plays a role in the operation of commercial trucks by securing connections within the exhaust and intake systems. Its design ensures a tight seal, which is vital for maintaining the integrity of these systems. Proper sealing prevents leaks, which can lead to performance issues and increased emissions ².

Key Features of the 3007219 V Band Clamp

The 3007219 V Band Clamp is characterized by its robust design and the materials used in its construction. It is made from high-quality steel, which provides durability and resistance to corrosion. The clamp features a unique V-shaped band that distributes clamping force evenly around the pipe, enhancing the seal’s effectiveness. Additionally, it includes a tensioning screw for easy adjustment and a protective coating to prevent rust and wear.

Benefits of Using the 3007219 V Band Clamp

Using this Cummins part offers several advantages. It provides an improved seal compared to traditional clamps, reducing the risk of leaks. The design allows for quick and easy installation, minimizing downtime during maintenance. Its durability ensures long-term performance, even under the demanding conditions typical of commercial truck operation ³.

Installation Process

Installing the 3007219 V Band Clamp involves several steps. First, ensure the pipe and fitting are clean and free of debris. Position the clamp around the pipe and fitting, aligning it correctly. Use the provided tools to tighten the tensioning screw, applying even pressure until the desired clamping force is achieved. Finally, inspect the connection to ensure a secure and leak-proof seal.

Maintenance and Troubleshooting

Regular maintenance of the 3007219 V Band Clamp is important to ensure its continued effectiveness. Inspect the clamp periodically for signs of wear, corrosion, or loosening. Common issues may include leaks due to improper installation or wear over time. Troubleshooting typically involves re-tightening the clamp or, in more severe cases, replacing it to maintain system integrity.

Compatibility and Applications

The 3007219 V Band Clamp is designed for use with specific truck models and systems. Its applications extend to various components within the exhaust and intake systems of commercial trucks. Ensuring compatibility with the truck’s make and model is important for optimal performance and reliability.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions. With a history spanning over a century, Cummins has established a reputation for quality, innovation, and reliability in the commercial truck industry. The company’s product range includes engines, filtration systems, and aftermarket parts, all designed to meet the demanding needs of commercial transportation.

Cummins V Band Clamp 3007219 Compatibility

The Cummins V Band Clamp part number 3007219 is designed to fit seamlessly with a variety of Cummins engines, ensuring a secure and reliable connection. This part is essential for maintaining the integrity of the engine’s sealing and connection points. Below is a detailed look at the engines with which this part is compatible.

V903 and VTA903 Engines

The V Band Clamp 3007219 is specifically engineered to fit the V903 and VTA903 engines. These engines are known for their robust performance and reliability, often used in heavy-duty applications. The clamp ensures that the engine’s components are held together securely, preventing leaks and maintaining optimal performance.

CM2250 Engine

The CM2250 engine also benefits from the use of the Cummins V Band Clamp 3007219. This engine is designed for high-efficiency and durability, making it a popular choice in various industrial applications. The clamp’s precise fit and secure hold are critical for the engine’s longevity and efficiency.

V105 Engine

Lastly, the V105 engine is another model that can utilize the Cummins V Band Clamp 3007219. This engine is known for its versatility and power, often used in a range of applications from construction to agriculture. The clamp ensures that all connections within the engine are tightly sealed, preventing any potential issues that could arise from loose connections.

By using the Cummins V Band Clamp 3007219, owners of V903, VTA903, CM2250, and V105 engines can ensure their engines operate at peak efficiency and reliability.

Role of Part 3007219 V Band Clamp in Engine Systems

The 3007219 V Band Clamp is integral to ensuring secure and leak-free connections in various engine systems. It is particularly essential in the following components:

• Aftercooler: The V Band Clamp is used to connect the aftercooler to the turbocharger, ensuring that the cooled air is efficiently delivered to the engine without any leaks.

• Turbocharger: In turbocharger setups, the V Band Clamp secures the connections between the turbocharger and other components such as the intercooler, intake manifold, and exhaust system. This ensures optimal airflow and pressure maintenance.

• Collector Exhaust and Collector Mounting Exhaust: These components rely on the V Band Clamp to create a robust seal between the exhaust manifold and the exhaust pipe, facilitating efficient exhaust gas flow and reducing the risk of leaks.

• Exhaust Outlet and Exhaust Connection Tube: The V Band Clamp is employed to connect the exhaust outlet to the exhaust connection tube, ensuring a tight seal that prevents exhaust gases from escaping.

• Exh-Collector and Exhaust Collector: These components use the V Band Clamp to join multiple exhaust pipes into a single collector, enhancing the efficiency of the exhaust system.

• Exhaust Outlet Tube and Exhaust Collector: The V Band Clamp ensures a secure connection between the exhaust outlet tube and the exhaust collector, maintaining the integrity of the exhaust flow.

• Kit and PDC (Programmable Device Controller): In various kits, including turbocharger conversion kits, the V Band Clamp is used to connect different components, ensuring that the system functions as intended. The PDC may control these connections to optimize performance.

• Turbocharger Conversion Kit: This kit often includes multiple connections that require the V Band Clamp to ensure all components are securely attached, allowing for smooth operation during the conversion process.

• Turbocharger Mounting and Turbocharger Plumbing: The V Band Clamp is vital in turbocharger mounting systems to connect the turbocharger to the engine and other plumbing components, ensuring a stable and leak-free setup.

• VT903 Short Block Kit: In this comprehensive kit, the V Band Clamp is used to connect various engine components, ensuring that the short block operates efficiently and without leaks.

Conclusion

The Cummins 3007219 V Band Clamp is a critical component in the maintenance and operation of commercial trucks. Its robust design, ease of installation, and durability make it an essential part for ensuring secure and leak-free connections in various engine systems. Regular maintenance and proper installation are key to maximizing the benefits of this Cummins part, contributing to the overall efficiency and reliability of the vehicle.
