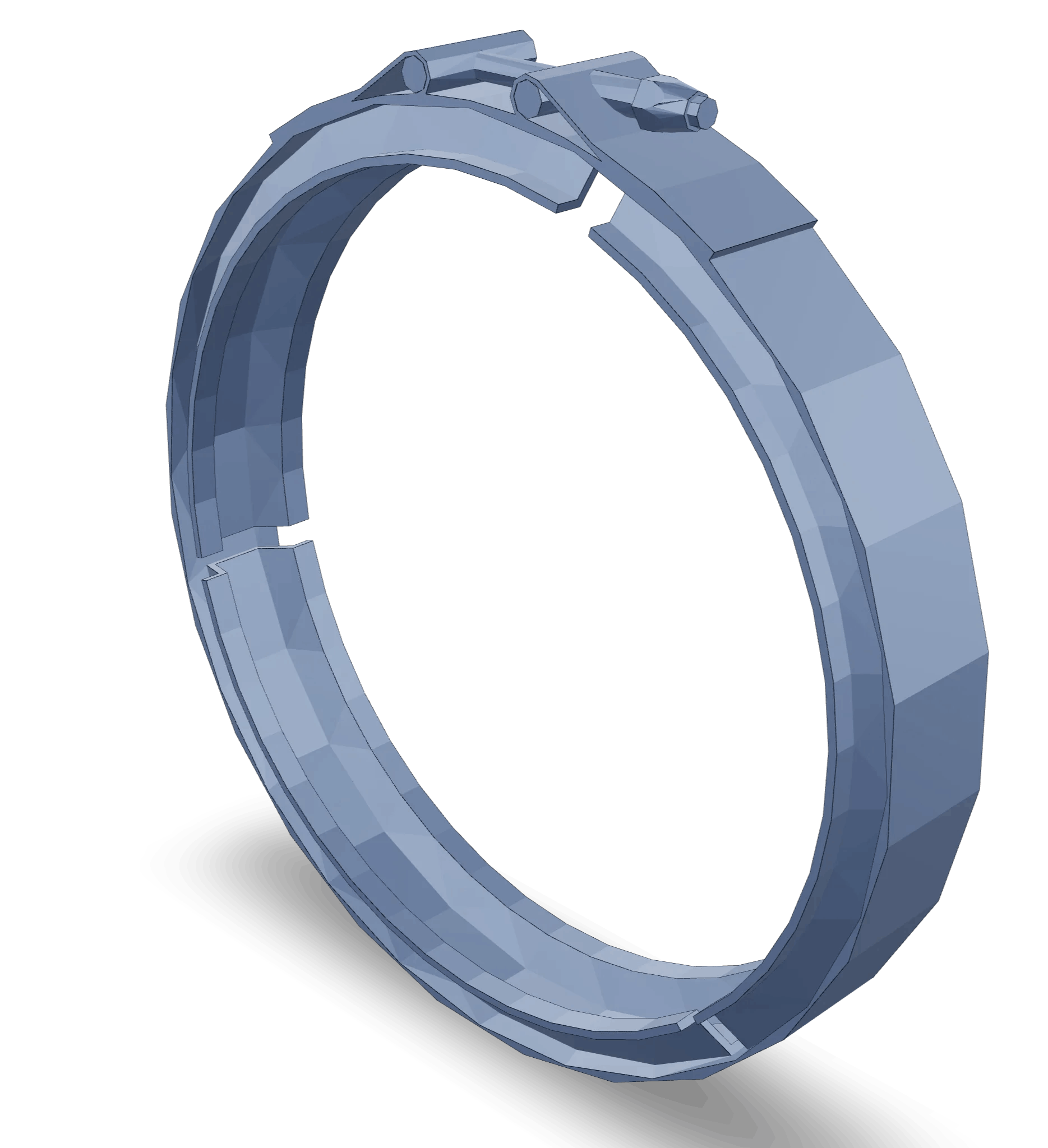

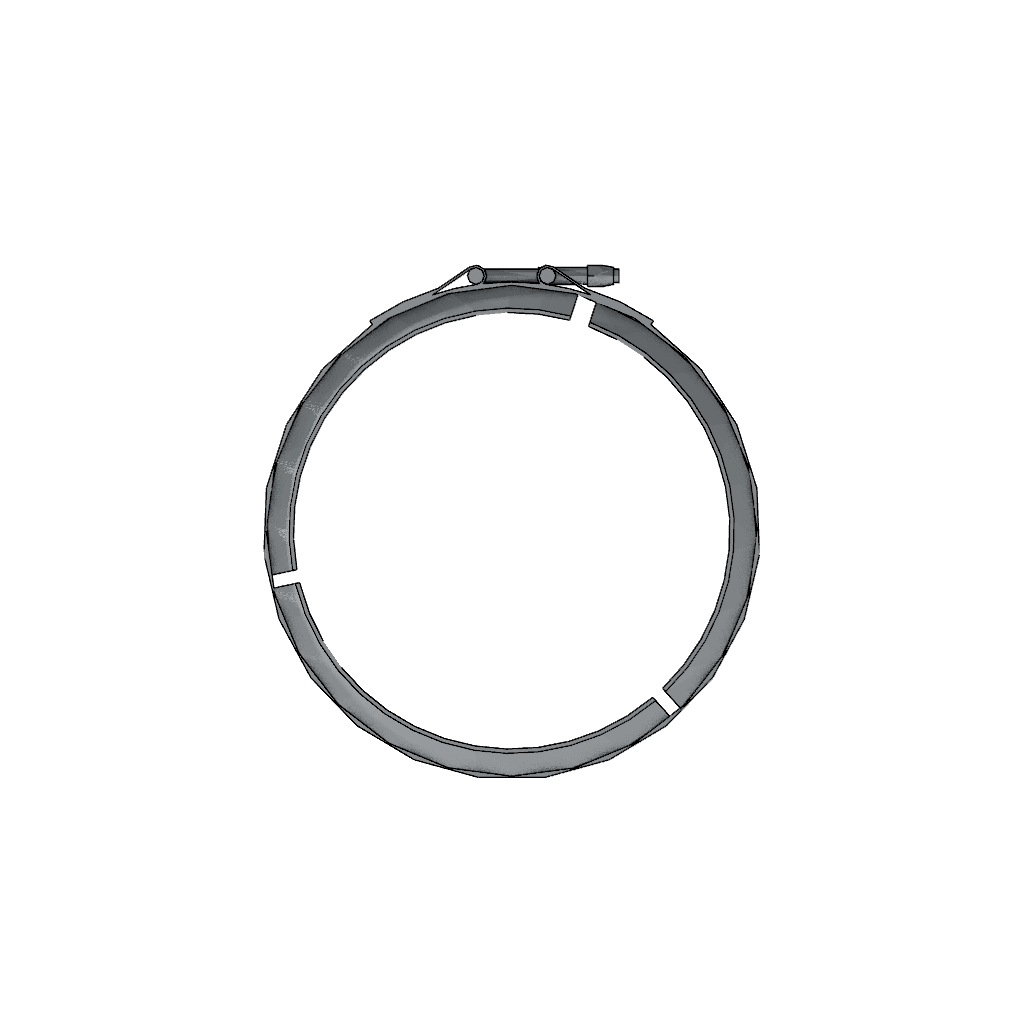

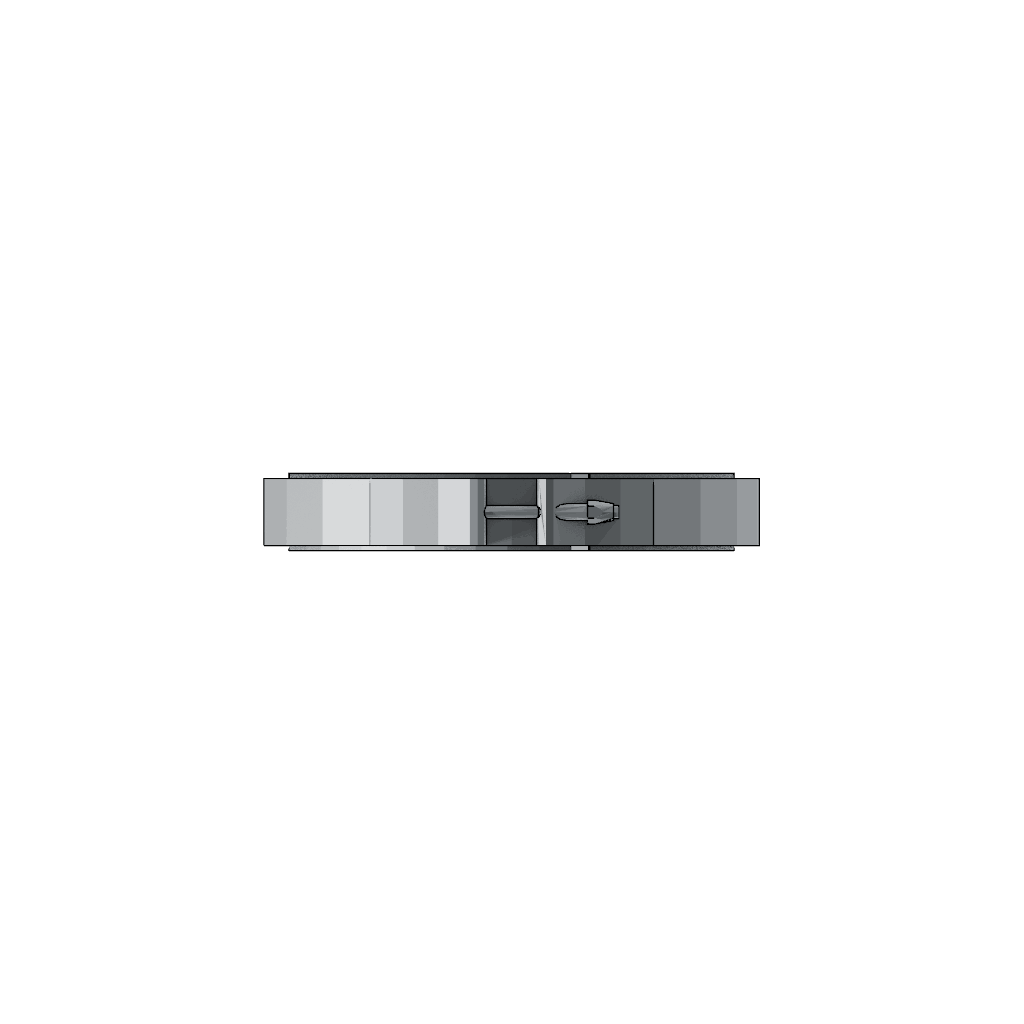

3029618
v Band Clamp
Cummins®

The V Band Clamp 3029618, a component manufactured by Cummins, is a critical part in the commercial truck industry. This clamp is essential for the efficient operation of a truck’s exhaust or intake system.

Basic Concepts of V Band Clamps

V Band Clamps are specialized fasteners used to connect pipes and fittings in various systems, including automotive applications. They operate by utilizing a band that wraps around the pipe and fitting, securing them together with a single bolt. This design allows for quick and easy installation and removal, making them popular in applications where frequent maintenance or adjustments are necessary ⁴.

Role of V Band Clamp 3029618 in Truck Operation

The V Band Clamp 3029618 is integral to the operation of a truck’s exhaust or intake system. It ensures a secure and leak-free connection between components, which is vital for maintaining the system’s efficiency and performance. By providing a robust seal, the clamp helps in maintaining the pressure integrity of the system, which is crucial for optimal engine performance ¹.

Key Features of V Band Clamp 3029618

The V Band Clamp 3029618 is constructed from high-quality materials, ensuring durability and resistance to corrosion. Its design includes a stainless steel band and bolt, which contribute to its strength and longevity. Additionally, the clamp features a unique V-shaped design that enhances its ability to create a tight seal, even under high-pressure conditions ².

Benefits of Using V Band Clamp 3029618

Utilizing the V Band Clamp 3029618 offers several advantages. Its design allows for easy installation and removal, reducing downtime during maintenance. The clamp’s durability ensures long-term performance, while its ability to create a secure seal enhances the efficiency of the exhaust or intake system. Furthermore, the clamp’s resistance to corrosion makes it suitable for use in various environmental conditions ³.

Installation Process

Installing the V Band Clamp 3029618 involves several steps. First, align the components to be connected. Then, place the V Band Clamp around them, ensuring it is correctly positioned. Finally, tighten the bolt to secure the connection. It is important to use the appropriate tools and follow the manufacturer’s guidelines to ensure a proper installation ⁴.

Troubleshooting Common Issues

Common issues with V Band Clamps may include leaks or difficulty in installation or removal. To address these, check the alignment of the components and ensure the clamp is correctly positioned. If leaks persist, inspect the condition of the clamp and components for any damage or wear that may require replacement ¹.

Maintenance Tips

Regular maintenance of the V Band Clamp 3029618 is important for ensuring its longevity and optimal performance. This includes periodic inspection for signs of wear or damage, ensuring the bolt is properly tightened, and cleaning the clamp and components to remove any debris or corrosion. Following these maintenance tips can help prevent issues and ensure the clamp continues to function effectively ².

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a strong reputation in the commercial truck industry, Cummins is known for its commitment to quality, innovation, and customer satisfaction. The company’s extensive product range and global presence make it a trusted partner for businesses around the world ³.

V Band Clamp 3029618 Compatibility with Cummins Engines

The V Band Clamp part number 3029618, manufactured by Cummins, is designed to fit seamlessly with a range of Cummins engines. This clamp is a critical component in ensuring the integrity of connections within the engine system, particularly in sealing applications.

K19 and K50 Engines

The V Band Clamp 3029618 is compatible with the K19 and K50 engines. These engines are known for their robust design and reliability, often used in various industrial applications. The clamp’s design ensures a tight seal, preventing leaks and maintaining the operational efficiency of these engines ⁴.

QSK50 CM2150 MCRS and QSK50 CM2350 K108 Engines

For the more advanced QSK50 CM2150 MCRS and QSK50 CM2350 K108 engines, the V Band Clamp 3029618 is equally essential. These engines are typically used in heavy-duty applications, requiring a reliable sealing solution to handle high pressures and temperatures. The clamp’s material and construction are specifically engineered to withstand the demanding conditions these engines operate under, ensuring long-term durability and performance ¹.

Grouping of Engines

When considering the compatibility of the V Band Clamp 3029618, it is useful to group the engines based on their application and design:

• Industrial Engines: K19, K50
• Heavy-Duty Engines: QSK50 CM2150 MCRS, QSK50 CM2350 K108

This grouping helps in understanding the specific requirements and operational environments of each engine type, ensuring that the V Band Clamp is appropriately selected for its intended use ².

Role of Part 3029618 V Band Clamp in Engine Systems

The V Band Clamp, identified as part 3029618, is instrumental in ensuring secure and leak-free connections across various engine components. Its application spans multiple critical areas within engine systems, enhancing both performance and reliability.

Connection Points

At connection points, the V Band Clamp provides a robust sealing mechanism. It is often used to join pipes and fittings, ensuring that the connection remains intact under high pressure and temperature conditions. This is particularly important in high-stress areas where traditional clamps might fail ³.

Exhaust Outlet

In the exhaust system, the V Band Clamp is employed at the exhaust outlet to connect the exhaust manifold to the downpipe. This connection must withstand extreme temperatures and vibrations, making the V Band Clamp an ideal choice due to its durability and flexibility ⁴.

Exhaust Connection

Further along the exhaust system, the V Band Clamp is used at various exhaust connections, including those leading to the catalytic converter and muffler. Its ability to maintain a tight seal under fluctuating temperatures and pressures ensures that exhaust gases are efficiently directed away from the engine compartment ¹.

Plumbing

In engine plumbing systems, the V Band Clamp is utilized to connect coolant lines, fuel lines, and other fluid pathways. Its quick-release mechanism allows for easier maintenance and replacement of components, reducing downtime and enhancing operational efficiency ².

Decomposition Reactor

Within systems that include a decomposition reactor, the V Band Clamp plays a key role in securing connections to this component. The reactor operates under specific conditions, and the clamp ensures that all connections remain secure and leak-free, contributing to the overall efficiency of the system ³.

Turbocharger

The turbocharger, a component that significantly boosts engine performance, relies on secure connections for intake and exhaust systems. The V Band Clamp is often used here to ensure that all connections are tight and can withstand the high-pressure environment created by the turbocharger. This helps in maintaining optimal performance and preventing leaks that could compromise engine efficiency ⁴.

Conclusion

The V Band Clamp 3029618 is a vital component in the operation of commercial trucks and Cummins engines. Its design, durability, and ease of use make it an essential part for maintaining the efficiency and reliability of engine systems. Regular maintenance and proper installation are key to ensuring the longevity and performance of this Cummins part.
