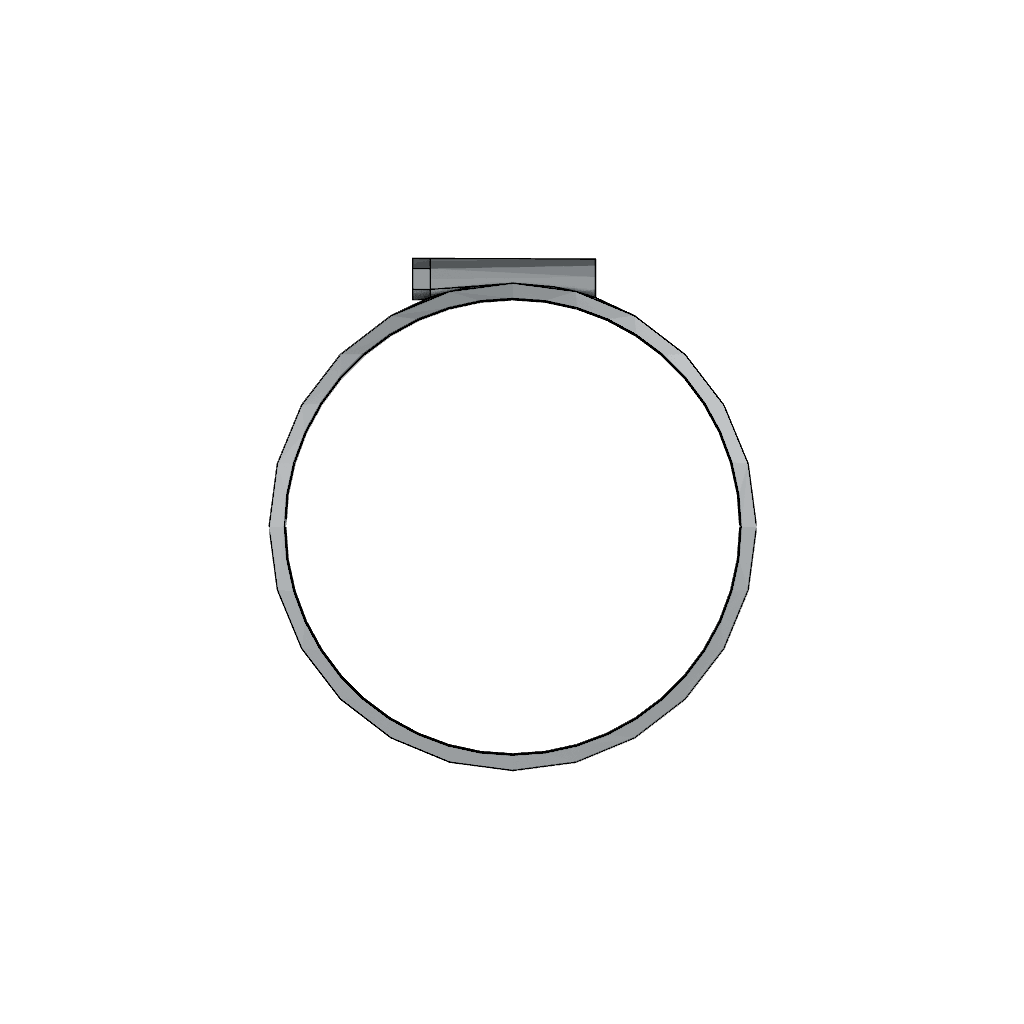

4933109
v Band Clamp
Cummins®

The 4933109 V-Band Clamp, manufactured by Cummins, is a component designed for various applications within commercial trucks, enhancing the efficiency and reliability of the vehicle’s systems.

Basic Concepts of V-Band Clamps

V-Band Clamps are specialized fasteners used to connect two pipes or ducts at an angle, typically 45 degrees. They consist of a band that wraps around the pipes and a center body that pulls the pipes together when tightened. This design allows for a secure and leak-proof connection, making V-Band Clamps suitable for a wide range of industrial and automotive applications, including exhaust systems, air intake systems, and other ductwork ¹.

Role of the 4933109 V-Band Clamp in Truck Operations

In commercial trucks, the 4933109 V-Band Clamp ensures a tight seal between components, which is vital for maintaining the efficiency of the exhaust system. This clamp helps in reducing emissions and improving the overall performance of the truck by ensuring that the exhaust system operates as intended ².

Key Features of the 4933109 V-Band Clamp

The 4933109 V-Band Clamp is characterized by several key features that enhance its performance. It is made from high-quality materials, ensuring durability and resistance to corrosion. The design includes a robust center body and a flexible band, allowing for easy installation and adjustment. Additionally, the clamp features a unique locking mechanism that secures the connection, preventing leaks and ensuring a stable fit ³.

Benefits of Using the 4933109 V-Band Clamp

Using the 4933109 V-Band Clamp offers several advantages. It provides an improved seal compared to traditional clamping methods, reducing the risk of leaks. The design allows for quick and easy installation, minimizing downtime during maintenance. Furthermore, the clamp’s durability ensures long-term reliability, contributing to the overall efficiency and safety of the truck.

Installation Process

Installing the 4933109 V-Band Clamp involves several steps to ensure optimal performance. First, align the pipes or ducts at the desired angle. Place the clamp around the pipes, ensuring it is centered. Use the provided tools to tighten the center body, pulling the pipes together until the desired tension is achieved. Finally, secure the clamp using the locking mechanism to ensure a stable connection.

Troubleshooting Common Issues

Common issues with V-Band Clamps may include leaks or improper sealing. To address these problems, first, inspect the clamp for any signs of damage or wear. Ensure that the pipes are properly aligned and that the clamp is centered. If leaks persist, tighten the clamp further or replace it if necessary. Regular inspection and maintenance can help prevent these issues.

Maintenance Tips

To ensure the longevity and reliable performance of the 4933109 V-Band Clamp, regular maintenance is recommended. Inspect the clamp periodically for signs of wear or damage. Clean the clamp and surrounding areas to remove any debris that may affect its performance. Follow the manufacturer’s guidelines for inspection intervals and maintenance procedures to keep the clamp in optimal condition.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a strong reputation in the commercial truck industry for producing high-quality, reliable components. The company’s product range includes engines, powertrains, and aftermarket parts, all designed to meet the demanding requirements of commercial vehicles.

V-Band Clamp 4933109 Compatibility with Cummins Engines

The V-Band Clamp 4933109, manufactured by Cummins, is a crucial component designed to ensure a secure and leak-proof seal in various engine applications. This part is integral to maintaining the integrity of the engine’s systems by preventing fluid or gas leaks at the connection points.

QSB5.9 CM850 and QSB6.7 M CM2250

The V-Band Clamp 4933109 is compatible with both the QSB5.9 CM850 and QSB6.7 M CM2250 engines. These engines are part of Cummins’ QSB series, known for their robust performance and reliability in a variety of applications, including industrial, agricultural, and marine uses. The clamp is used in these engines to secure hoses, pipes, and other connections, ensuring that the engine operates efficiently and safely.

QSC8.3 CM850 (CM2850)

Similarly, the V-Band Clamp 4933109 is also suitable for the QSC8.3 CM850 (CM2850) engine. This engine is part of the QSC series, which is designed for heavy-duty applications requiring high power and durability. The clamp’s role in this engine is to maintain the integrity of the connections, preventing any leaks that could compromise the engine’s performance or lead to potential hazards.

In summary, the V-Band Clamp 4933109 is a versatile and essential component for the QSB5.9 CM850, QSB6.7 M CM2250, and QSC8.3 CM850 (CM2850) engines, ensuring that these engines can operate with maximum efficiency and reliability.

Role of Part 4933109 V-Band Clamp in Engine Systems

The V-Band Clamp, identified by part number 4933109, is instrumental in ensuring secure and efficient connections within various engine systems. Its application is particularly significant in the following components:

• Exhaust Outlet: The V-Band Clamp is utilized to connect the exhaust outlet to the exhaust manifold or turbocharger. This connection must be airtight to prevent exhaust leaks, which can lead to performance issues and increased emissions. The clamp’s design allows for easy installation and removal, facilitating maintenance and replacement of the exhaust components.

• Exhaust Riser Kit: In systems where an exhaust riser kit is employed, the V-Band Clamp plays a key role in joining the riser to the exhaust manifold or other exhaust components. The riser kit is often used to raise the exhaust system to accommodate other engine components or to improve exhaust flow. The V-Band Clamp ensures a robust and leak-free connection, maintaining the integrity of the exhaust system and enhancing overall engine performance.

• General Connections: Beyond specific components like the exhaust outlet and riser kit, the V-Band Clamp is widely used throughout the engine system for various connections. These include joints between different sections of the exhaust system, connections to catalytic converters, and links to mufflers. The clamp’s versatility and reliability make it a preferred choice for maintaining secure and efficient joints in high-temperature and high-pressure environments.

Conclusion

The 4933109 V-Band Clamp is a critical component in the operation of commercial trucks and Cummins engines, ensuring secure and leak-proof connections in various engine systems. Its high-quality materials, robust design, and ease of installation contribute to the overall efficiency and reliability of the vehicle. Regular maintenance and proper installation are essential to maximize the benefits of this Cummins part.
