3047384
Dipstick
Cummins®

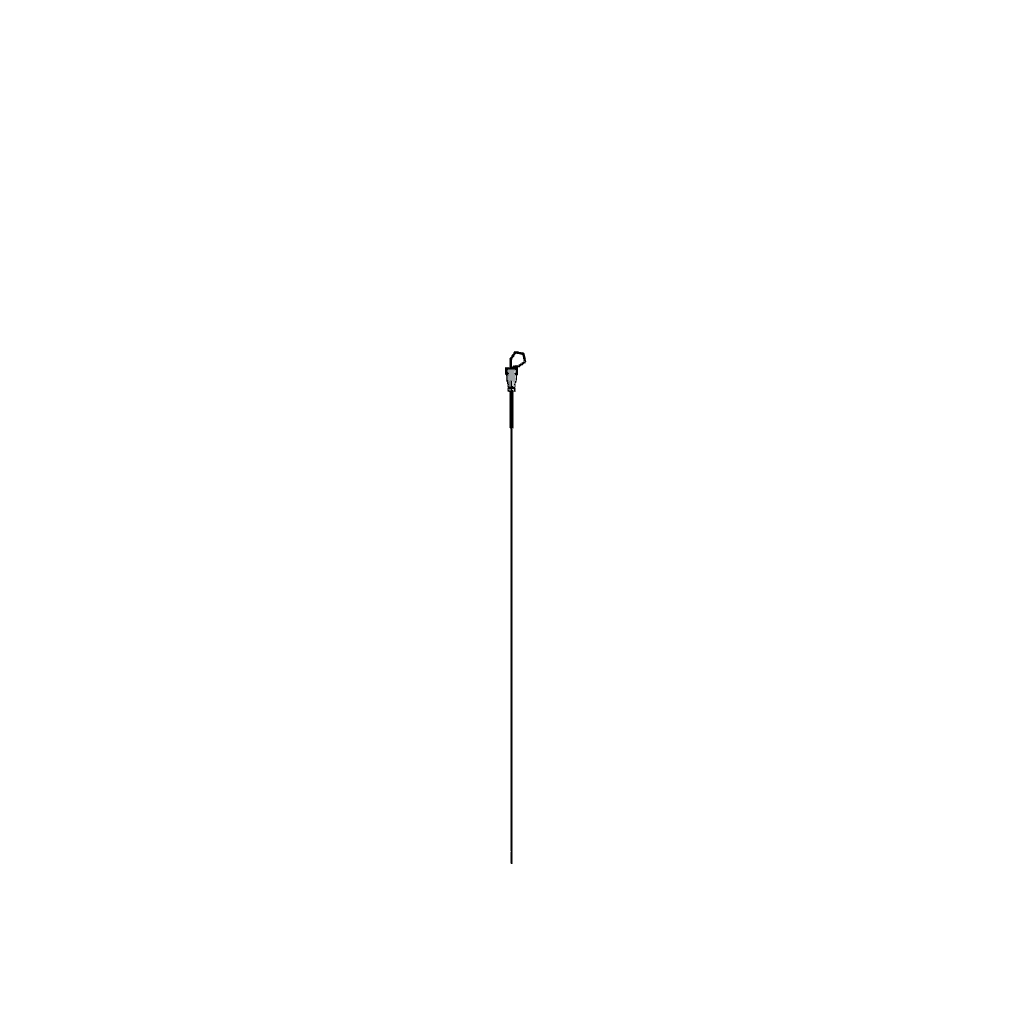

The Cummins 3047384 Dipstick is a component designed for use in heavy-duty trucks, specifically for monitoring engine oil levels. Its role in the maintenance and operation of these vehicles is significant, as it ensures that the engine remains properly lubricated, which is vital for performance and longevity ².

Basic Concepts of a Dipstick

A dipstick is a tool used in internal combustion engines to measure the level of lubricant, typically oil. It consists of a long, thin metal or plastic rod with a handle at one end. The rod is inserted into the engine’s oil sump through a tube. Markings along the length of the dipstick indicate the minimum and maximum oil levels. When removed, the oil level can be read by observing where the oil reaches on the dipstick. This process allows for the assessment of whether the oil level is within the acceptable range, facilitating timely top-ups or changes as needed ¹.

Purpose of the Cummins 3047384 Dipstick

The Cummins 3047384 Dipstick serves to measure the oil level within the engine of a heavy-duty truck. By providing accurate readings, it plays a role in ensuring that the engine components receive adequate lubrication. Proper lubrication is key to reducing friction and wear between moving parts, maintaining engine efficiency, and preventing overheating ².

Key Features

This Cummins part is crafted from durable materials to withstand the harsh conditions within an engine. Its design includes precise markings for oil level indication, ensuring accuracy in measurements. Additionally, the dipstick is engineered to fit securely within the engine, minimizing the risk of oil leaks and ensuring reliable operation over time.

Benefits

Utilizing the Cummins 3047384 Dipstick offers several advantages. Its design ensures accurate oil level measurements, which is fundamental for maintaining engine health. The ease of use, combined with its durability, makes it a reliable component for routine maintenance checks. Furthermore, by facilitating proper lubrication, the dipstick contributes to the overall longevity of the engine.

Installation Process

To install the Cummins 3047384 Dipstick, first, ensure the engine is turned off and has cooled down. Locate the dipstick tube, usually found on the engine’s side. Remove the old dipstick by pulling it straight out of the tube. Insert the new dipstick fully into the tube until it stops, then withdraw it slightly to the designated mark if present. Reinsert it fully one more time to ensure a proper seal, then remove it to check the oil level.

Usage Instructions

To use the Cummins 3047384 Dipstick for checking oil levels, start by ensuring the vehicle is on a level surface and the engine is off. Remove the dipstick from the tube, wipe it clean with a cloth, and reinsert it fully. After a few seconds, withdraw the dipstick and observe the oil level against the markings. The oil should fall within the designated range for optimal engine performance.

Troubleshooting Common Issues

Common issues with the Cummins 3047384 Dipstick may include inaccurate readings or difficulty in insertion. Inaccurate readings can often be resolved by ensuring the dipstick is fully inserted and withdrawn correctly. If insertion is difficult, check for obstructions within the tube or consider if the dipstick is the correct fit for your engine.

Maintenance Tips

To maintain the Cummins 3047384 Dipstick, regularly clean it after each use to remove oil residue, which can affect accuracy. Periodically inspect the dipstick for signs of wear or damage, and replace it if necessary to ensure continued reliable performance. Keeping the dipstick tube free of debris will also contribute to the accuracy of oil level readings.

About Cummins

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a strong reputation in the automotive industry, Cummins is known for its high-quality diesel engines and components, including the Cummins 3047384 Dipstick. The company’s commitment to innovation and excellence has established it as a trusted name in the production of reliable and efficient engine parts.

Compatibility with Cummins Engines

The 3047384 is engineered to fit seamlessly with several Cummins engine models, ensuring that it can be used across a range of applications. Here are some of the engines where this dipstick is compatible:

• K19 Series: The K19 series engines are known for their robust performance and reliability. The dipstick part 3047384 is specifically designed to integrate with these engines, providing a reliable method for oil level checks. Its design ensures that it fits snugly into the designated oil level check port, allowing for accurate readings.

• Other Cummins Engines: While the K19 series is a notable example, the dipstick part 3047384 is also compatible with other Cummins engines. This compatibility extends to various models within the Cummins engine lineup, ensuring that it can be used in a wide range of applications.

Installation and Usage

The installation of the Cummins dipstick part 3047384 is straightforward. It is designed to fit into the engine’s oil level check port, which is typically located on the engine block. The dipstick is marked with measurement indicators, allowing operators to easily determine the oil level.

To use the dipstick, follow these steps:

1. Ensure the Engine is Off: Before checking the oil level, make sure the engine is turned off and has cooled down to avoid burns.
2. Locate the Dipstick: Find the oil level check port on the engine.
3. Remove the Dipstick: Pull the dipstick out of the port.
4. Check the Oil Level: Wipe the dipstick clean and reinsert it fully. Then, remove it again and check the oil level against the measurement indicators.
5. Reinsert the Dipstick: After checking the oil level, reinsert the dipstick back into the port.

Importance of Regular Checks

Regularly checking the oil level using the Cummins dipstick part 3047384 is essential for maintaining engine health. Proper oil levels ensure that the engine operates smoothly and reduces the risk of engine damage due to insufficient lubrication.

By using this dipstick, operators can quickly and accurately monitor the oil level, ensuring that the engine remains in optimal condition. This proactive approach to maintenance can extend the lifespan of the engine and improve overall performance.

Role of Part 3047384 Dipstick in Engine Systems

The part 3047384 dipstick is an integral component in the maintenance and monitoring of engine systems. It works in conjunction with several key components to ensure the engine operates efficiently and safely.

Interaction with the Oil Level

The primary function of the dipstick is to provide a means of checking the oil level within the engine. By inserting the dipstick into the oil filler tube and then withdrawing it, mechanics and engineers can visually assess the oil level. This is essential for maintaining the correct oil volume, which is necessary for lubricating moving parts, cooling the engine, and cleaning internal components ².

Connection to the Gauge

In some engine systems, the dipstick may be connected to an oil level gauge. This gauge offers a more precise reading of the oil level, often through electronic sensors that detect the oil’s height on the dipstick. The gauge then displays this information on the engine’s dashboard, allowing for real-time monitoring of the oil level during operation.

Ensuring Engine Health

Regular use of the dipstick to check the oil level helps in identifying potential issues such as oil leaks or excessive oil consumption. This proactive approach allows for timely maintenance, preventing more severe engine problems that could arise from inadequate lubrication.

Facilitating Oil Changes

During an oil change, the dipstick is used to ensure that the correct amount of new oil is added to the engine. After pouring in the new oil, the dipstick is checked to confirm that the oil level is within the recommended range, ensuring optimal engine performance.

Supporting Diagnostic Procedures

The dipstick also plays a role in diagnostic procedures. The condition of the oil (color, consistency) observed on the dipstick can provide insights into the engine’s health. For instance, dark or gritty oil may indicate the need for a filter change or further investigation into potential engine wear.

Conclusion

In summary, the part 3047384 dipstick is a fundamental component in the maintenance and monitoring of engine systems, working alongside the oil level and gauge to ensure the engine operates smoothly and efficiently. Regular checks and proper maintenance of this part contribute significantly to the longevity and performance of heavy-duty engines.
