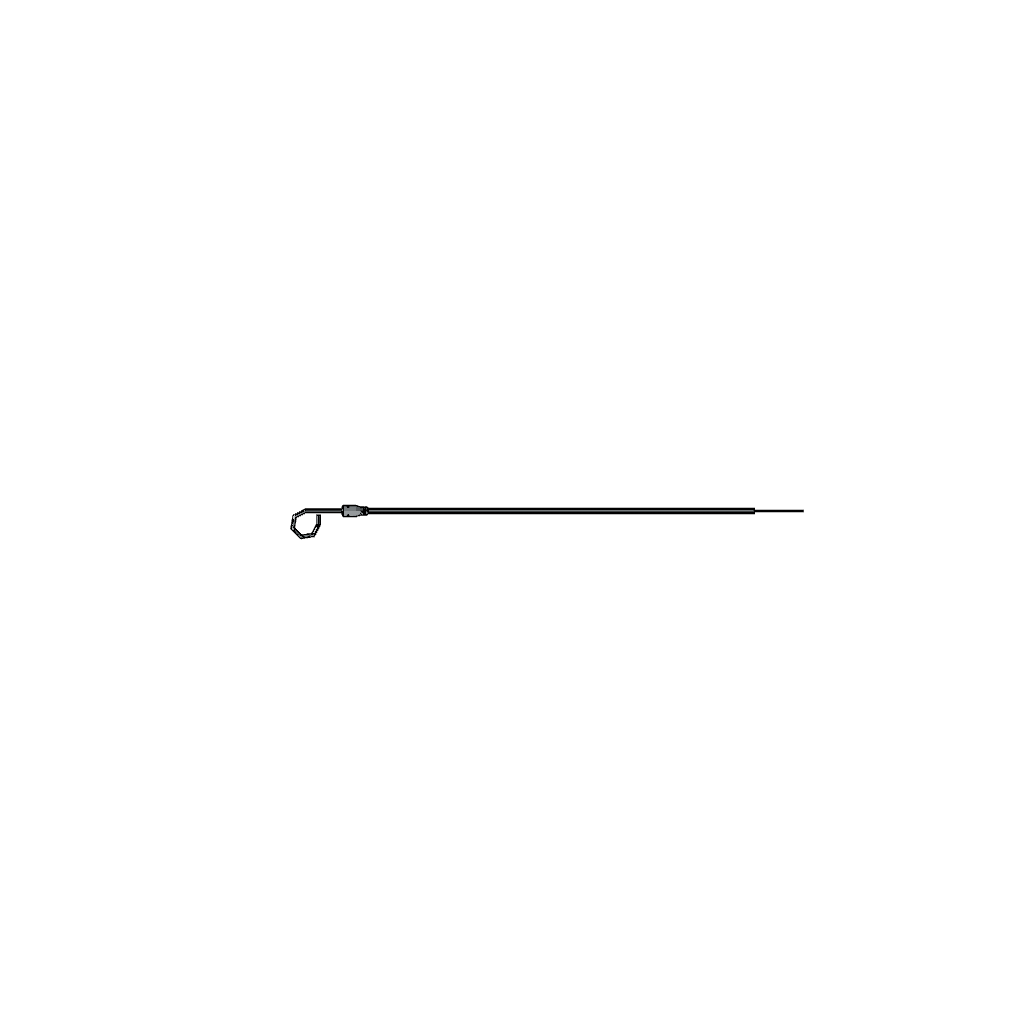

3253996
Dipstick
Cummins®

Introduction

The Cummins 3253996 Dipstick is a specialized component designed for use in heavy-duty trucks. Its primary function is to facilitate the measurement of oil levels within the engine, ensuring that the engine operates within optimal parameters. This part is integral to maintaining the health and efficiency of the engine, playing a significant role in routine maintenance and operational checks.

Basic Concepts of a Dipstick

A dipstick is a simple yet vital tool used in internal combustion engines to measure the level of lubricant, typically oil, within the engine ¹. It consists of a long, slender rod with a handle at one end, which is inserted into the engine’s oil sump. Once inserted, the dipstick is withdrawn, and the oil level is read from the markings on the rod. This process allows for the assessment of oil quantity, which is crucial for maintaining engine performance and preventing damage due to insufficient lubrication ².

Purpose of the Cummins 3253996 Dipstick

The Cummins 3253996 Dipstick serves a specific role in the operation of heavy-duty trucks by providing an accurate means to measure the oil level within the engine. Proper oil levels are necessary for lubricating moving parts, cooling the engine, and cleaning internal components ³. By ensuring that the oil level is within the recommended range, this part helps in maintaining engine efficiency, reducing wear, and extending the engine’s lifespan.

Key Features

The Cummins 3253996 Dipstick is characterized by its robust design and high-quality materials, which contribute to its durability and reliability. It is crafted from corrosion-resistant materials to withstand the harsh environments typical of heavy-duty truck operations. The dipstick features clear, easy-to-read markings for precise oil level measurement and a secure fitting to prevent oil leaks. Its design ensures compatibility with specific engine models, enhancing its performance and effectiveness.

Benefits

Utilizing the Cummins 3253996 Dipstick offers several advantages, including improved engine maintenance through accurate oil level readings, enhanced engine performance due to optimal lubrication, and increased reliability of the engine system. Regular use of this part as part of a maintenance routine can lead to early detection of potential issues, such as oil leaks or consumption, allowing for timely interventions and prolonging the engine’s operational life.

Installation Process

Installing the Cummins 3253996 Dipstick involves several steps to ensure proper fitting and function. First, the engine oil cap should be removed to access the dipstick tube. The old dipstick, if present, is then removed from the tube. The new dipstick is inserted into the tube until it reaches the bottom, then withdrawn slightly to allow for an accurate reading. It is important to ensure the dipstick is seated correctly to prevent oil leaks and obtain accurate measurements. After installation, the engine oil cap should be securely replaced.

Troubleshooting and Maintenance

Common issues with dipsticks include inaccurate readings due to incorrect installation, wear, or damage. Regular inspection of the dipstick for signs of wear, such as bent or corroded sections, is recommended. Cleaning the dipstick with a lint-free cloth before each use ensures accurate readings. If the dipstick appears damaged or if inaccurate readings are consistently obtained, replacement may be necessary to maintain engine health.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including diesel and natural gas engines, as well as related technologies. With a history spanning over a century, Cummins has established a reputation for innovation, quality, and reliability in the automotive industry, particularly in the production of diesel engines and components. The company’s commitment to excellence and customer satisfaction has made it a preferred choice for heavy-duty applications.

Cummins Dipstick Part 3253996 Compatibility

The Cummins dipstick part number 3253996 is designed to interface seamlessly with a range of engine models. This part is engineered to ensure accurate oil level readings, which is critical for maintaining engine health and performance.

L10 Mechanical Engines

For the L10 mechanical engines, the dipstick part 3253996 is specifically tailored to fit the engine’s design. This ensures that users can easily check the oil levels without any compatibility issues. The dipstick’s design allows for a precise measurement, which is essential for the proper functioning of the engine.

Group Compatibility

The dipstick part 3253996 is also compatible with other Cummins engine groups where the design specifications align. This ensures that the dipstick can be used across multiple engine models without the need for modifications. The compatibility is achieved through standardized design features that cater to the common requirements of these engines.

Installation and Usage

When installing the dipstick part 3253996, it is important to follow the manufacturer’s guidelines to ensure a proper fit and function. The dipstick should be inserted into the designated oil level check port and pulled out to check the oil level against the marked indicators. This process helps in maintaining the engine’s oil levels within the optimal range, preventing potential engine damage due to low or high oil levels.

Role of Part 3253996 Dipstick in Engine Systems

The part 3253996 dipstick is an essential component in the maintenance and operation of engine systems, particularly in conjunction with the cylinder block cover.

When the cylinder block cover is removed for maintenance or inspection, the dipstick provides a means to check the oil level within the engine. This is achieved by inserting the dipstick into the oil filler tube, which is typically located on the cylinder block cover. Once inserted and then withdrawn, the oil level can be read off the markings on the dipstick.

Regular oil level checks are important for ensuring that the engine is properly lubricated. Insufficient oil can lead to increased friction and wear on engine components, while overfilling can cause foaming and reduced lubrication efficiency. The dipstick, therefore, plays a significant role in facilitating these checks, ensuring that the engine operates within optimal lubrication parameters.

Additionally, the dipstick can indicate the condition of the oil. By observing the color and consistency of the oil on the dipstick, mechanics can assess whether the oil needs to be changed. Dark or gritty oil may suggest contamination or degradation, signaling the need for an oil change to maintain engine health.

Conclusion

In summary, the Cummins 3253996 Dipstick is integral to the routine maintenance and operational checks of engine systems, particularly when working with the cylinder block cover. Its role in oil level and condition assessment helps ensure the engine remains in good working order.
