3688451
Dipstick
Cummins®

Introduction

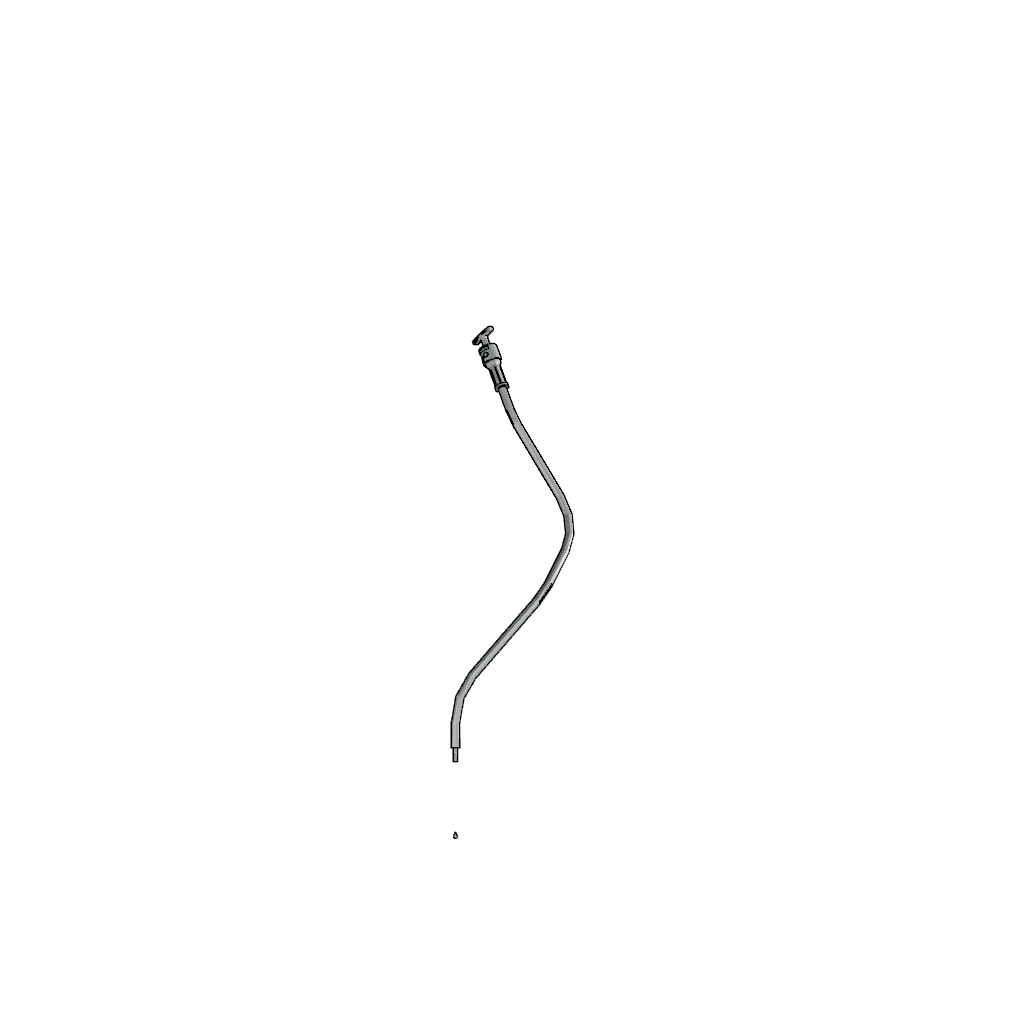

The Cummins 3688451 Dipstick is a specialized tool designed for use in heavy-duty trucks equipped with Cummins engines. Its primary function is to facilitate the measurement of engine oil levels, which is a fundamental aspect of routine maintenance. Ensuring the correct oil level is vital for the efficient operation and longevity of the engine. This dipstick is engineered to provide accurate readings, aiding in the prevention of engine damage due to oil starvation or overfilling.

Basic Concepts of a Dipstick

A dipstick is a simple yet essential component in the engine system. It is a metal or plastic rod with a handle on one end, inserted into the engine’s oil sump. The other end features graduated markings that indicate the oil level. When the dipstick is removed and wiped clean, reinserted, and then withdrawn again, the oil level can be read against these markings. This process allows for the assessment of whether the oil level is within the manufacturer’s specified range ¹.

Purpose of the Cummins 3688451 Dipstick

This Cummins part plays a role in the operation and maintenance of a truck engine by providing a means to accurately measure the oil level. Proper oil levels are necessary for lubrication, cooling, and cleaning within the engine. The dipstick’s design ensures that it fits snugly into the engine’s oil filler tube, allowing for precise measurement and reducing the risk of oil leaks.

Key Features

The Cummins 3688451 Dipstick is constructed with specific design elements and materials to enhance its functionality and durability. It is typically made from high-quality steel, which offers resistance to corrosion and wear. The handle is designed for ease of use, ensuring a secure grip. Additionally, the dipstick features clear and durable markings for accurate oil level readings.

Benefits

Using the Cummins 3688451 Dipstick offers several advantages. Its design ensures accuracy in oil level measurement, which is crucial for maintaining engine health. The ease of use, combined with its compatibility with Cummins engines, makes it a reliable tool for both professional mechanics and vehicle owners. The durable construction of the dipstick contributes to its longevity, providing consistent performance over time.

Installation and Usage

To install and use the Cummins 3688451 Dipstick, follow these steps:

1. Ensure the engine is turned off and has had sufficient time to cool.
2. Locate the dipstick tube, typically found near the engine’s top.
3. Remove the dipstick by pulling it straight out of the tube.
4. Wipe the dipstick clean with a lint-free cloth or paper towel.
5. Reinsert the dipstick fully into the tube, then remove it again to check the oil level.
6. Observe the oil level against the markings on the dipstick.
7. If necessary, add oil to reach the recommended level, using the type of oil specified by the engine manufacturer.

Troubleshooting and Maintenance

Common issues with dipsticks may include inaccurate readings due to wear or damage, or oil leaks around the dipstick tube. To address these, inspect the dipstick regularly for signs of wear or corrosion, and ensure it is properly seated in the tube. Maintenance tips include keeping the dipstick and tube clean and free of debris, and replacing the dipstick if it shows signs of damage or if accurate readings cannot be obtained.

Safety Considerations

When using the Cummins 3688451 Dipstick, it is important to follow safety practices. Always allow the engine to cool before checking the oil level to avoid burns from hot surfaces. Additionally, be cautious when interpreting the oil’s condition; discolored or contaminated oil may indicate underlying engine issues that require professional assessment.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including diesel and natural gas engines, as well as related technologies. Founded in 1919, Cummins has a long-standing reputation for innovation and quality in the automotive industry, particularly in the production of diesel engines and components. The company’s commitment to excellence and customer satisfaction has made it a preferred choice for heavy-duty truck applications ².

Compatibility with Cummins Engines

The Cummins part number 3688451, which is a Dipstick, is designed to fit a range of Cummins engines. Specifically, it is compatible with the ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, QSX15 CM2250 ECF, and QSX15 CM2350 X105 engines. This dipstick is an essential component for maintaining the engine’s oil levels, ensuring optimal performance and longevity.

For the ISX15 CM2250 and ISX15 CM2250 SN engines, the dipstick is engineered to provide accurate readings, facilitating easy and efficient oil checks. Similarly, for the ISX15 CM2350 X101, the dipstick ensures that the oil level is maintained within the recommended range, contributing to the engine’s overall health.

In the case of the QSX15 CM2250 ECF and QSX15 CM2350 X105 engines, the dipstick is designed to fit seamlessly, allowing for precise oil level monitoring. This is crucial for preventing engine damage due to low oil levels and ensuring that the engine operates smoothly.

Role of Part 3688451 Dipstick in Engine Systems

Part 3688451 Dipstick is an essential component in maintaining the health and performance of engine systems by facilitating the monitoring of oil levels. When integrated into an engine, this dipstick works in conjunction with the oil level gauge to provide accurate readings of the engine oil status.

Interaction with Oil Level Gauge

The dipstick is designed to be inserted into the engine’s oil filler neck. Once in place, it extends down into the oil sump, allowing it to collect a sample of the engine oil. When removed, the oil level can be observed directly on the dipstick. This collected oil is then measured against the marked levels (usually “Full” and “Add”) on the dipstick itself.

Ensuring Accurate Oil Level Readings

Accurate oil level readings are vital for the proper lubrication of engine components. The dipstick provides a physical means to check the oil level without needing to rely solely on electronic sensors, which can sometimes fail or provide inaccurate readings. By using the dipstick in tandem with the oil level gauge, mechanics and engineers can ensure that the engine maintains optimal oil levels, thereby preventing potential damage from insufficient lubrication ³.

Facilitating Maintenance and Diagnostics

Regular use of the dipstick allows for routine checks that can indicate potential issues within the engine. For instance, if the oil level is consistently low, it may signal an oil leak or excessive consumption, prompting further investigation. Conversely, if the oil appears dirty or contaminated, it may be time for an oil change, helping to maintain engine efficiency and longevity.

Conclusion

In summary, the Cummins 3688451 Dipstick plays a significant role in the maintenance and monitoring of engine oil levels, ensuring that the engine operates within safe parameters and facilitating timely maintenance actions.
