3688687
Dipstick
Cummins®

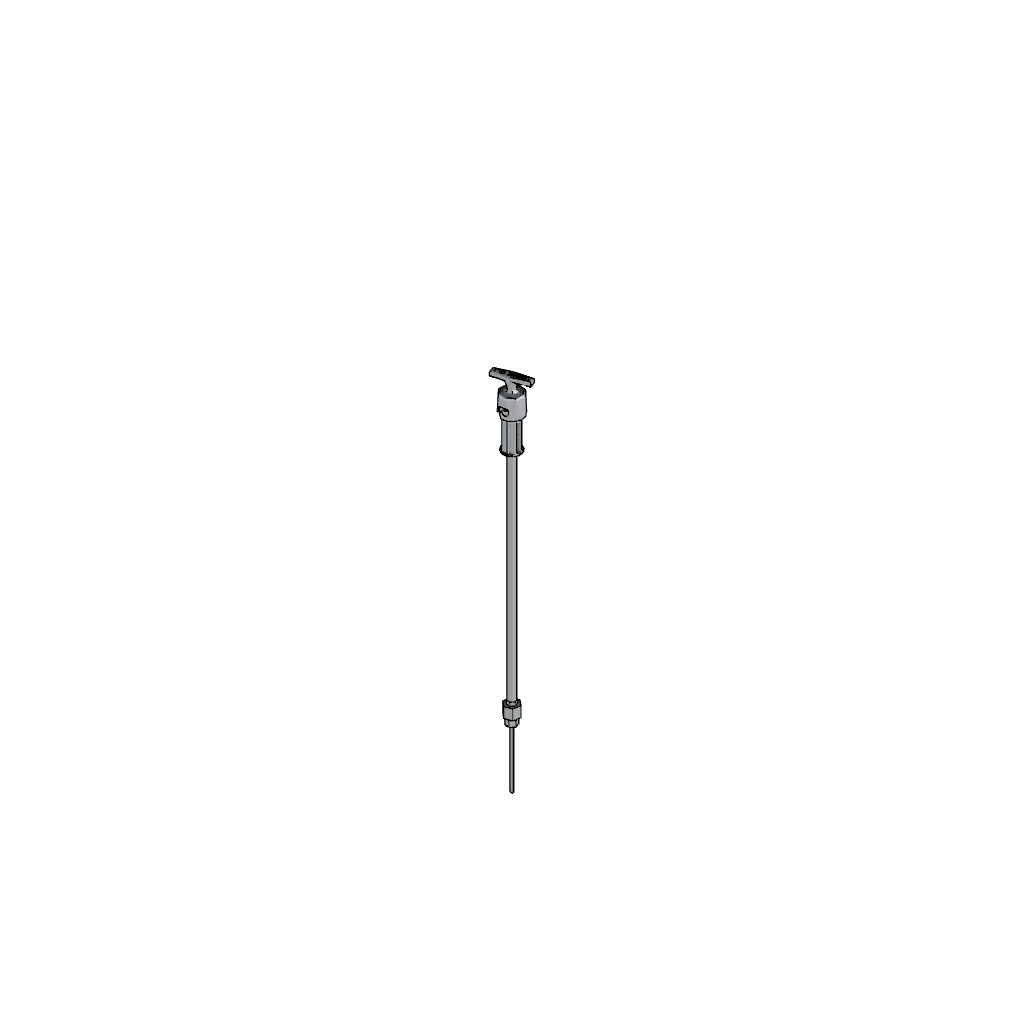

The Cummins 3688687 Dipstick is a component designed for use in heavy-duty trucks, specifically tailored to facilitate the maintenance and operation of these vehicles. Its role is to provide a means for checking the oil level within the engine, ensuring that the lubrication system functions correctly and that engine components remain adequately protected against wear and damage ¹.

Basic Concepts of a Dipstick

A dipstick is a simple yet vital tool used in internal combustion engines to measure the level of oil. It consists of a long, thin metal or plastic rod with a handle at one end. The rod is inserted into the engine’s oil sump through a tube, and when removed, the oil level can be read from markings along the rod. This process allows for the assessment of whether the oil level is within the manufacturer’s recommended range, facilitating timely top-ups or changes as necessary ².

Purpose of the Cummins 3688687 Dipstick

This Cummins part serves a specific function in the operation of heavy-duty trucks by enabling the measurement of oil levels within the engine. Proper lubrication is fundamental to the engine’s performance and longevity, as it reduces friction between moving parts, dissipates heat, and helps to clean and seal the combustion chamber. By providing an accurate means to check oil levels, the dipstick plays a role in maintaining the engine’s efficiency and reliability ³.

Key Features

The Cummins 3688687 Dipstick is characterized by its robust design and the use of high-quality materials, ensuring durability and accuracy in oil level readings. Its construction may include features such as a corrosion-resistant coating to withstand the harsh environments typical of heavy-duty truck operations. Additionally, the dipstick is designed with clear, easy-to-read markings for precise oil level indication.

Benefits of Using the Cummins 3688687 Dipstick

Utilizing this Cummins part offers several advantages. Its design ensures accurate measurement of oil levels, which is crucial for maintaining optimal engine performance. The ease of use, combined with its durability, makes it a reliable component for regular maintenance checks. Furthermore, by facilitating proper lubrication, the dipstick contributes to the overall longevity of the engine.

Troubleshooting and Maintenance Suggestions

Common issues with dipsticks may include inaccurate readings due to wear or contamination. Regular inspection for signs of damage or buildup is recommended. Cleaning the dipstick with a suitable solvent and ensuring it is fully seated when in use can help maintain its accuracy and functionality. Should the dipstick become bent or show significant wear, replacement is advised to ensure reliable oil level readings.

Installation and Usage Guidelines

Proper installation of the Cummins 3688687 Dipstick involves ensuring it is correctly seated in the engine’s oil sump. This process typically requires the engine to be turned off and allowed to cool to avoid burns from hot oil. The dipstick should be inserted fully into its tube and then withdrawn to check the oil level, following the manufacturer’s guidelines for accurate readings.

Role in Preventive Maintenance

Regularly checking oil levels using the dipstick is a fundamental aspect of preventive maintenance for heavy-duty trucks. This practice allows for the early detection of oil leaks or consumption issues, enabling timely interventions that can prevent more severe engine damage. Incorporating oil level checks into routine maintenance schedules helps ensure the engine operates within optimal conditions, contributing to its efficiency and lifespan.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including diesel and natural gas engines, as well as related technologies. With a history spanning over a century, Cummins has established itself as a trusted name in the industry, known for its commitment to quality and innovation. The company’s extensive product line includes high-quality components like the 3688687 Dipstick, designed to meet the demanding requirements of heavy-duty applications.

Cummins Dipstick Part 3688687 Compatibility

The Cummins part 3688687, a Dipstick, is designed to fit seamlessly with several of Cummins’ renowned engine models. This part is integral for maintaining the proper oil levels in the engines, ensuring optimal performance and longevity. Here’s how it fits with the specified engines:

ISX CM570 and ISX CM870

The ISX CM570 and ISX CM870 engines are part of Cummins’ high-performance lineup, known for their robust design and efficiency. The dipstick part 3688687 is engineered to integrate smoothly with these engines, providing an accurate reading of the oil levels. This ensures that the engine operates within the recommended oil parameters, preventing potential damage from overfilling or underfilling.

QSX15 CM2250 and QSX15 CM2250 ECF

The QSX15 CM2250 and QSX15 CM2250 ECF engines are designed for heavy-duty applications, offering exceptional power and reliability. The dipstick part 3688687 is specifically tailored to fit these engines, ensuring that users can easily and accurately check the oil levels. This is crucial for maintaining the engine’s performance and preventing issues that could arise from incorrect oil levels.

Role of Part 3688687 Dipstick in Engine Systems

The part 3688687 dipstick is an essential component in the accurate measurement and monitoring of oil levels within an engine system. It interfaces directly with the oil level gauge to provide real-time data on the engine’s lubrication status.

Interaction with Oil Level Gauge

The dipstick is designed to be inserted into the engine’s oil filler tube, allowing it to come into direct contact with the oil. Once inserted and then withdrawn, the oil adhering to the dipstick provides a visual and tactile indication of the oil level. This information is then manually read against marked indicators on the dipstick itself.

For enhanced precision, the dipstick often works in conjunction with an oil level gauge. The gauge may be an electronic sensor that reads the oil level more accurately than visual inspection alone. The dipstick, in this scenario, serves as a conduit for the sensor to interact with the oil, ensuring that the gauge receives consistent and reliable data.

Ensuring Optimal Engine Performance

By providing accurate oil level readings, the dipstick plays a significant role in maintaining the engine’s performance and longevity. Proper oil levels are necessary for effective lubrication of moving parts, heat dissipation, and the prevention of engine wear. The dipstick’s role in this process cannot be overstated, as it ensures that the oil level gauge delivers precise readings, allowing for timely oil changes and maintenance.

Conclusion

In summary, the Cummins 3688687 Dipstick is a critical component for maintaining the health and performance of heavy-duty truck engines. Its accurate measurement of oil levels ensures optimal engine lubrication, contributing to the engine’s efficiency and longevity. Regular maintenance and proper use of this part are essential for the preventive maintenance of these vehicles.
