3908772
Dipstick
Cummins®

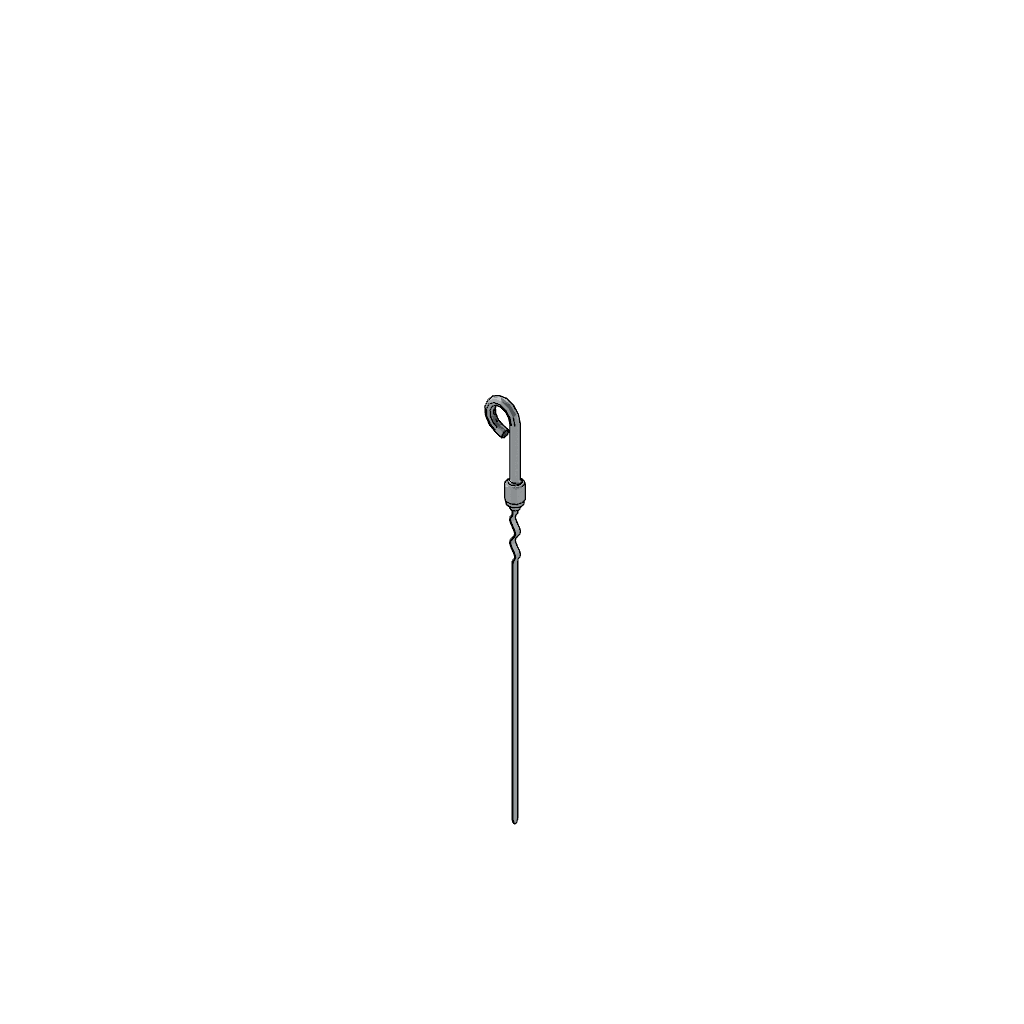

The Cummins 3908772 Dipstick is a specialized component designed for use in heavy-duty trucks. It facilitates the measurement of engine oil levels, which is vital for the lubrication of engine components, supporting efficient operation and longevity of the engine.

Basic Concepts of a Dipstick

A dipstick is a tool used in internal combustion engines to measure the level of lubricant within the engine. It consists of a long, slender metal or plastic rod with a handle at one end. The rod is inserted into the engine’s oil sump through a tube, and markings along the length of the dipstick indicate the minimum and maximum oil levels ¹.

Purpose of the Cummins 3908772 Dipstick

This Cummins part allows for the precise measurement of oil levels within the engine. This measurement ensures that the engine maintains proper lubrication, which is necessary for the smooth operation of moving parts and the reduction of friction and wear ².

Key Features

The Cummins 3908772 Dipstick is constructed from high-quality materials to withstand the harsh conditions within an engine environment. It features clear and durable markings for accurate oil level readings and is designed for easy insertion and removal, contributing to user convenience during maintenance checks.

Benefits

Utilizing this Cummins part offers several advantages. It contributes to improved engine performance by ensuring that oil levels are maintained within the recommended range. This helps extend the engine’s lifespan by reducing wear on critical components. Additionally, the dipstick simplifies maintenance procedures, making it easier for operators to conduct regular checks and maintain the engine in optimal condition.

Installation and Usage

To install and use the Cummins 3908772 Dipstick, follow these steps: First, ensure the engine is turned off and has had sufficient time to cool. Locate the dipstick tube, typically found on the side of the engine. Pull the dipstick out completely, wipe it clean with a lint-free cloth, reinsert it fully, and then remove it again to check the oil level. The oil should be between the minimum and maximum marks. If necessary, add oil to reach the appropriate level.

Troubleshooting and Maintenance

Common issues with dipsticks may include inaccurate readings or difficulty in insertion/removal. These problems can often be traced to contamination, wear, or incorrect installation. To address these issues, ensure the dipstick is clean and free from debris before use. If the dipstick appears worn or damaged, replacement may be necessary. Regular maintenance of the dipstick involves keeping it clean and checking for any signs of wear or damage.

Safety Considerations

When using the Cummins 3908772 Dipstick, it is important to observe safety practices. Always allow the engine to cool before checking the oil level to avoid burns from hot components. Handle the dipstick carefully to prevent contamination of the oil, which can lead to engine damage. Additionally, ensure that the dipstick is fully seated when reinstalled to prevent oil leaks.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a strong reputation in the automotive industry, particularly within the heavy-duty truck sector. The company’s product range includes a variety of engines, components, and technologies designed to meet the demanding requirements of commercial transportation and industrial applications.

Cummins Engine Dipstick Compatibility

The Cummins part number 3908772 is compatible with a range of Cummins engines. This dipstick is designed to fit seamlessly into the engine’s oil system, ensuring accurate oil level readings and facilitating proper maintenance procedures.

Compatible Engines

• 6C8.3
• C GAS PLUS CM556
• C8.3 G
• G8.3

These engines are part of Cummins’ lineup of gas engines, and the dipstick is engineered to integrate smoothly with their oil systems.

Additional Compatible Engines

• ISC CM554
• QSC8.3 CM2880 C102
• QSC8.3 CM554
• QSL9 CM554

The dipstick also fits into the oil systems of these engines, which are part of Cummins’ diesel engine range. The dipstick is designed to provide reliable oil level readings for these models as well.

By ensuring that the dipstick is compatible with these engines, Cummins maintains a high standard of quality and reliability, allowing users to perform essential maintenance tasks with confidence.

Role of Part 3908772 Dipstick in Engine Systems

This part is an essential component in the accurate measurement and monitoring of oil levels within an engine system. It interfaces directly with the oil level gauge, providing a reliable means for engineers and mechanics to assess the quantity of oil present in the engine.

Interaction with Oil Level Gauge

The dipstick is designed to be inserted into the engine’s oil filler tube, allowing it to come into direct contact with the oil. Once inserted and then withdrawn, the dipstick displays the oil level marked on its surface. This information is then visually interpreted by the oil level gauge, which may be a simple mechanical indicator or a more complex electronic system. The gauge translates the oil level reading from the dipstick into a format that is easily understandable by the user, ensuring that the engine maintains optimal oil levels for efficient operation.

Ensuring Accurate Oil Level Readings

Accurate oil level readings are fundamental for the health and performance of an engine. The dipstick’s design ensures that it provides a consistent and reliable measurement, which is vital for the oil level gauge to function correctly. Regular checks using the dipstick help in identifying any anomalies in oil levels, such as overfilling or underfilling, which could lead to engine damage if not addressed promptly ³.

Integration with Engine Maintenance Routines

Incorporating the dipstick into regular engine maintenance routines allows for proactive monitoring of oil levels. This practice not only aids in maintaining engine efficiency but also contributes to the longevity of the engine by preventing issues related to incorrect oil levels. The dipstick’s role in this process is indispensable, as it serves as the primary tool for obtaining accurate oil level data that the gauge then utilizes to inform maintenance decisions.

Conclusion

The Cummins 3908772 Dipstick is a critical component for maintaining the health and efficiency of heavy-duty truck engines. By ensuring accurate oil level readings, it plays a vital role in engine lubrication, performance, and longevity. Regular use and maintenance of this part are essential for optimal engine operation.
