3915027
Dipstick
Cummins®

Introduction

The Cummins 3915027 Dipstick is a component designed for use in heavy-duty trucks equipped with Cummins engines. Its purpose is to facilitate the measurement of oil levels within the engine, ensuring that the lubrication system operates within the manufacturer’s specified parameters. Accurate oil level measurement is significant for maintaining engine health, performance, and longevity ¹.

Basic Concepts of a Dipstick

A dipstick is a simple yet vital tool used in internal combustion engines to check the level of lubricant, typically oil. It consists of a long, thin metal or plastic rod with a handle at one end. The other end is inserted into the engine’s oil sump. The dipstick has markings that indicate the minimum and maximum oil levels. When pulled out, the oil level can be read against these markings, allowing for the assessment of whether the oil level is within the acceptable range ².

Purpose of the Cummins 3915027 Dipstick

The Cummins 3915027 Dipstick plays a specific role in the operation of heavy-duty trucks by providing a means to accurately measure the oil level in Cummins engines. This measurement is crucial for ensuring that the engine has sufficient lubrication to operate efficiently and avoid damage. By regularly checking the oil level with this dipstick, operators can maintain optimal engine performance and prevent issues related to insufficient lubrication ³.

Key Features

The Cummins 3915027 Dipstick is characterized by its robust design and the use of high-quality materials, ensuring durability and reliability in demanding environments. It features clear, easy-to-read markings for oil level indication and is designed to fit securely within the engine’s oil sump. The dipstick’s construction allows for accurate and consistent measurements, contributing to its effectiveness in maintaining engine health.

Benefits

Using the Cummins 3915027 Dipstick offers several benefits, including precise measurement of oil levels, which is vital for engine maintenance. Its durable construction ensures longevity, even under the harsh conditions typical of heavy-duty truck operations. Additionally, the dipstick is designed for ease of use, allowing for quick and straightforward oil level checks, which is beneficial for routine maintenance procedures.

Installation and Usage

To install and use the Cummins 3915027 Dipstick, first, ensure the engine is turned off and has had sufficient time to cool. Locate the dipstick tube, usually found near the engine’s top. Pull out the dipstick, wipe it clean with a lint-free cloth, reinsert it fully, and then pull it out again to check the oil level. Compare the oil level against the markings on the dipstick to determine if it is within the acceptable range. If necessary, add oil to bring the level within the specified range.

Maintenance and Care

To ensure the Cummins 3915027 Dipstick remains in optimal condition, it should be cleaned after each use to remove any oil residue. Regular inspection for signs of wear or damage is recommended. If the dipstick becomes bent or shows signs of significant wear, it should be replaced to maintain accurate oil level readings.

Troubleshooting

Common issues with the Cummins 3915027 Dipstick may include inaccurate readings due to contamination or damage. If inconsistent readings are observed, cleaning the dipstick and ensuring it is properly seated in the tube can often resolve the issue. For persistent problems, inspecting the dipstick for physical damage and replacing it if necessary is advised.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins is renowned for its innovation, quality, and commitment to customer success across a wide range of industries, including transportation, construction, and power generation.

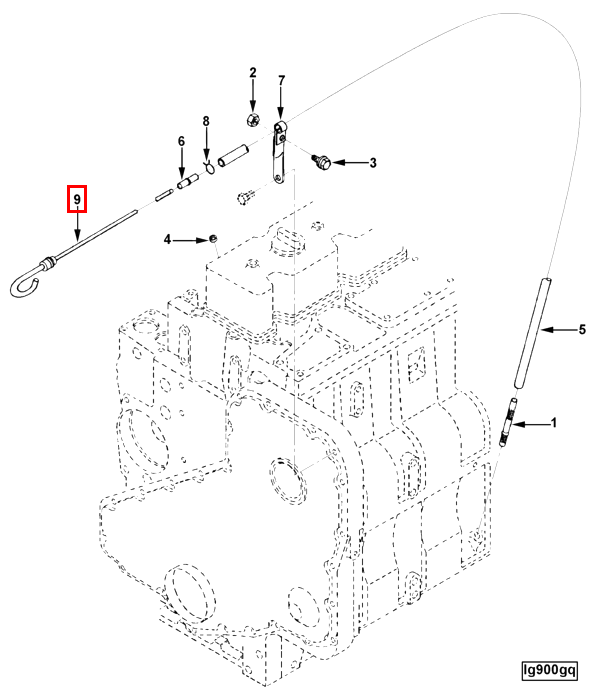

Cummins Dipstick Part 3915027 Compatibility

The Cummins dipstick part number 3915027 is designed to be compatible with a range of Cummins engines, ensuring accurate oil level readings and facilitating proper maintenance. This dipstick is engineered to fit seamlessly with the following engines:

6C8.3 Engines

The 6C8.3 engine series benefits from the precision and reliability of the 3915027 dipstick. This part ensures that users can easily check and maintain the oil levels, contributing to the engine’s longevity and performance.

ISC CM554 Engines

Similarly, the ISC CM554 engine series is designed to work with the 3915027 dipstick. This compatibility is crucial for maintaining optimal oil levels, which is essential for the engine’s efficient operation and durability.

Compatibility Summary

The Cummins dipstick part number 3915027 is engineered to provide a precise and reliable method for checking oil levels in both the 6C8.3 and ISC CM554 engine series. This compatibility ensures that users can maintain their engines effectively, promoting longevity and performance.

Role of Part 3915027 Dipstick in Engine Systems

The part 3915027 dipstick is an essential component in the maintenance and monitoring of engine systems. It facilitates the accurate measurement of oil levels within the engine, ensuring that the lubrication system operates efficiently.

When inserted into the oil filler neck, the dipstick provides a direct reading of the oil level. This reading is then compared against the minimum and maximum marks on the dipstick to determine if the oil level is within the acceptable range.

The dipstick also plays a role in conjunction with the oil level gauge, which may be an integrated part of the vehicle’s dashboard or a standalone device. The gauge offers a visual or digital representation of the oil level, often informed by the dipstick’s readings.

Regular use of the dipstick helps in identifying potential issues such as oil leaks or excessive oil consumption, allowing for timely maintenance and preventing engine damage. Additionally, it aids in ensuring that the engine maintains optimal lubrication, which is vital for the longevity and performance of the engine components.

Conclusion

The Cummins 3915027 Dipstick is a critical component for maintaining the health and performance of Cummins engines in heavy-duty trucks. Its accurate measurement capabilities, durable design, and ease of use make it an indispensable tool for engine maintenance. Regular use and proper care of this part ensure that engines operate efficiently, with optimal lubrication, thereby extending their lifespan and performance.
