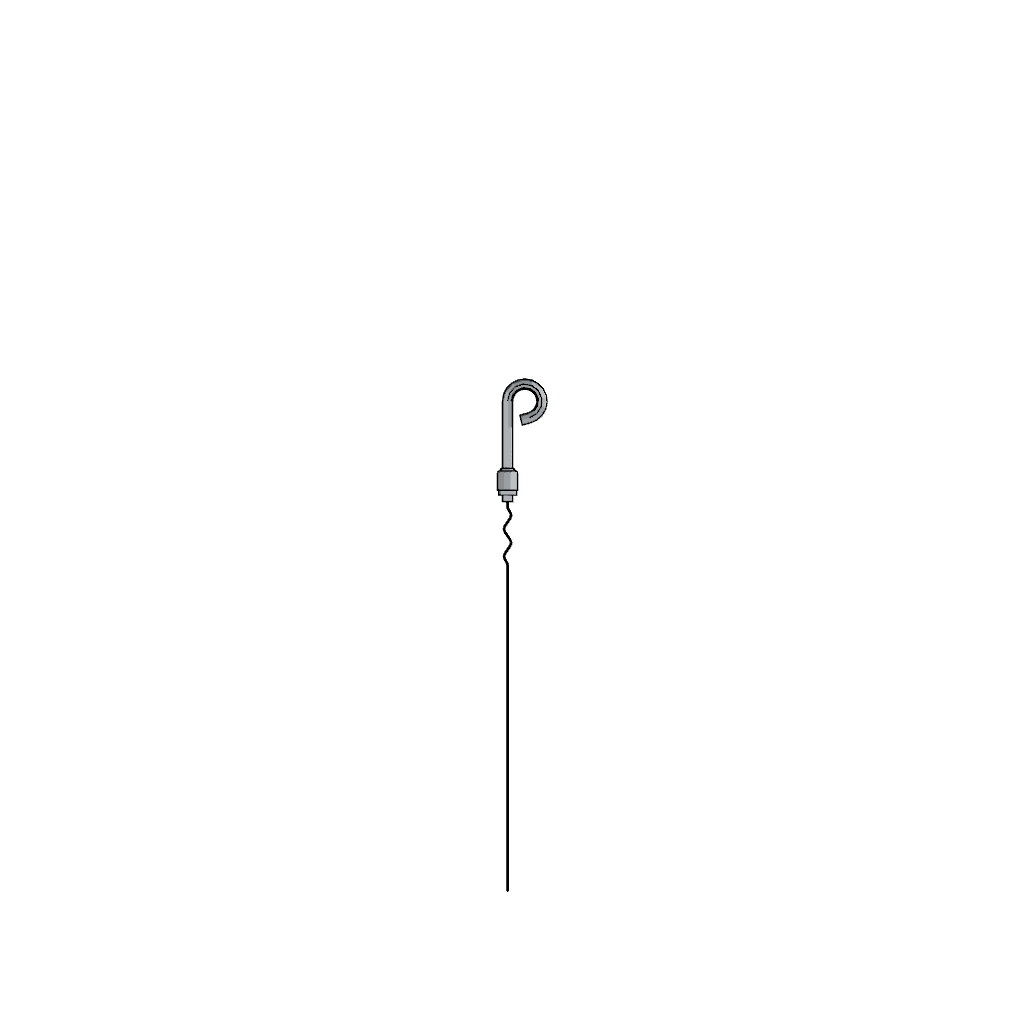

3932416
Dipstick
Cummins®

The Cummins 3932416 Dipstick is a specialized component designed for use in heavy-duty trucks. Its purpose is to facilitate the measurement of oil levels within the engine, ensuring that the lubrication system operates effectively. This part is significant in the maintenance routine of heavy-duty trucks, as proper lubrication is vital for engine performance and longevity ¹.

Basic Concepts of a Dipstick

A dipstick is a simple yet essential tool used in internal combustion engines to measure the level of lubricant, typically oil. It consists of a long, slender rod with a handle at one end, which is inserted into the engine’s oil reservoir. The other end of the dipstick has markings that indicate the minimum and maximum oil levels. When removed, the oil level can be read against these markings, providing a quick and effective way to assess the engine’s lubrication status ².

Purpose of the Cummins 3932416 Dipstick

The Cummins 3932416 Dipstick plays a role in the operation of a truck by allowing for the precise measurement of oil levels. This ensures that the engine maintains proper lubrication, which is necessary for reducing friction between moving parts, dissipating heat, and preventing wear and tear. By regularly checking the oil level with this dipstick, operators can ensure that the engine operates within safe parameters, thereby enhancing performance and reliability ³.

Key Features

The Cummins 3932416 Dipstick is characterized by its robust design and high-quality materials, which contribute to its durability and accuracy. It is crafted from corrosion-resistant materials to withstand the harsh environments typical of heavy-duty truck operations. The dipstick features clear, easy-to-read markings for oil level indication, and its design ensures a secure fit within the engine’s oil reservoir, preventing leaks and ensuring accurate readings.

Benefits of Using the Cummins 3932416 Dipstick

Utilizing the Cummins 3932416 Dipstick offers several advantages. Its design ensures accurate oil level measurements, which is crucial for maintaining optimal engine performance. The durability of the dipstick means it can withstand the rigors of heavy-duty use, reducing the need for frequent replacements. Additionally, its ease of use allows for quick and efficient oil level checks, facilitating routine maintenance and helping to prevent engine damage due to insufficient lubrication.

Installation and Usage

To install and use the Cummins 3932416 Dipstick, follow these steps: First, ensure the truck is on a level surface and the engine is turned off. Locate the dipstick tube, usually found near the engine’s center. Pull out the dipstick, wipe it clean with a lint-free cloth, reinsert it fully, and then remove it again to check the oil level. The oil should be between the minimum and maximum marks. If necessary, add oil to reach the appropriate level.

Troubleshooting Common Issues

Common issues with dipsticks include inaccurate readings and physical damage. Inaccurate readings may result from a bent dipstick or incorrect insertion. Ensuring the dipstick is straight and fully seated can resolve this. Physical damage, such as cracks or bends, may require replacement of the dipstick to maintain accurate measurements and prevent oil leaks.

Maintenance Tips

To ensure the longevity and reliability of the Cummins 3932416 Dipstick, regular maintenance is recommended. This includes cleaning the dipstick after each use to remove any oil residue that may affect readings. Inspect the dipstick periodically for signs of wear or damage, and replace it if necessary to maintain accurate oil level measurements and prevent potential engine issues.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history dating back to 1919, Cummins has established a reputation for innovation, quality, and reliability in the automotive industry, particularly in the production of diesel engines and components. Their commitment to excellence and customer satisfaction has made them a preferred choice for heavy-duty applications.

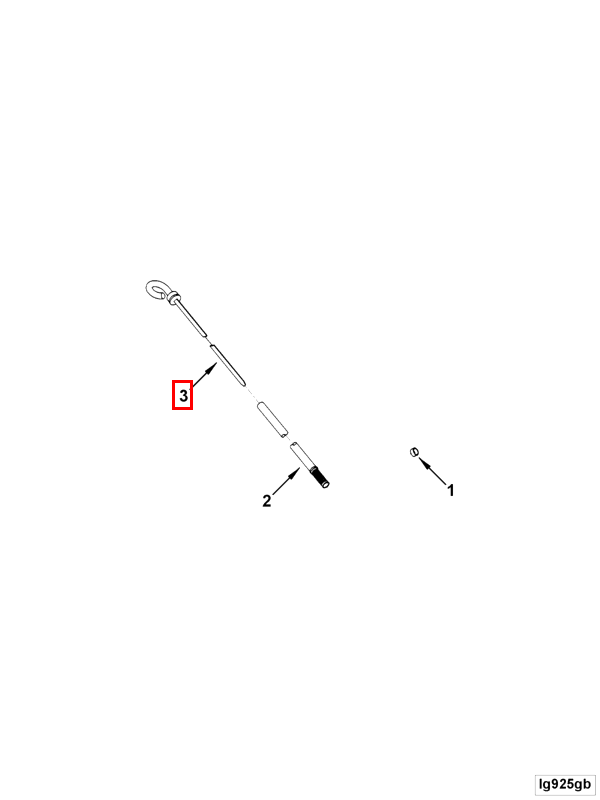

Cummins Engine Dipstick Part 3932416

The Cummins engine dipstick part number 3932416 is a critical component for maintaining the health and performance of the engine. This part is designed to fit seamlessly with various Cummins engine models, ensuring accurate oil level readings and facilitating proper maintenance procedures.

Compatibility with Cummins Engines

The dipstick part 3932416 is engineered to be compatible with several Cummins engine models, including but not limited to:

• 6B5.9 Series: This part is specifically designed to fit within the engine architecture of the 6B5.9 series, providing reliable and precise oil level measurements. Its design ensures that it can easily access the oil reservoir, allowing for straightforward checks and refills.

Installation and Usage

When installing the dipstick part 3932416, it is essential to follow the manufacturer’s guidelines to ensure proper fit and function. The dipstick should be inserted into the designated oil level check port until it reaches the bottom. Once fully seated, it should be removed to check the oil level against the marked indicators on the dipstick. This process helps in determining whether the engine has sufficient oil and if any additional oil needs to be added.

Importance of Proper Maintenance

Using the correct dipstick part number 3932416 is crucial for maintaining engine performance. Accurate oil level readings help prevent engine damage due to insufficient lubrication, which can lead to increased wear and tear. Regular checks using this dipstick ensure that the engine operates within optimal parameters, extending its lifespan and reliability.

Grouping of Compatible Engines

The dipstick part 3932416 is grouped with engines that share similar design and maintenance requirements. This grouping ensures that the dipstick is compatible with a range of engines, simplifying inventory management and maintenance procedures for technicians and fleet managers.

By ensuring that the dipstick part 3932416 is used with the appropriate engines, maintenance personnel can efficiently monitor and maintain the oil levels, contributing to the overall health and longevity of the engine.

Role of Part 3932416 Dipstick in Engine Systems

The part 3932416 dipstick is an essential component in the accurate measurement and monitoring of oil levels within an engine system. Its primary function is to provide a direct and reliable method for checking the oil level, ensuring that the engine operates within safe parameters.

Interaction with the Oil Level

The dipstick is inserted into the engine’s oil filler tube, which is connected to the oil pan. When the dipstick is removed, the oil level can be observed directly on the stick, typically marked with minimum and maximum indicators. This allows for a quick assessment of whether the oil level is within the acceptable range. Maintaining the correct oil level is important for lubricating moving parts, cooling the engine, and ensuring optimal performance and longevity of the engine components.

Connection to the Gauge

In some engine systems, the dipstick is also linked to an oil level gauge or sensor. This gauge provides a more precise reading of the oil level, often displayed on the engine’s dashboard. The dipstick facilitates the gauge’s function by allowing it to measure the oil level electronically. This integration enhances the monitoring capabilities, providing real-time data to the operator and allowing for immediate action if the oil level falls below the safe threshold.

Overall Function in Engine Maintenance

Regular use of the dipstick in checking the oil level is a fundamental part of routine engine maintenance. It helps in identifying potential issues such as oil leaks or excessive oil consumption, which could indicate more serious problems within the engine. By ensuring the oil level is consistently maintained, the dipstick plays a significant role in the overall health and efficiency of the engine system.

Conclusion

The Cummins 3932416 Dipstick is a vital component in the maintenance and operation of heavy-duty truck engines. Its accurate measurement of oil levels ensures proper lubrication, which is essential for engine performance and longevity. Regular use and maintenance of this dipstick contribute to the overall health and efficiency of the engine system.
