3939101
Dipstick
Cummins®

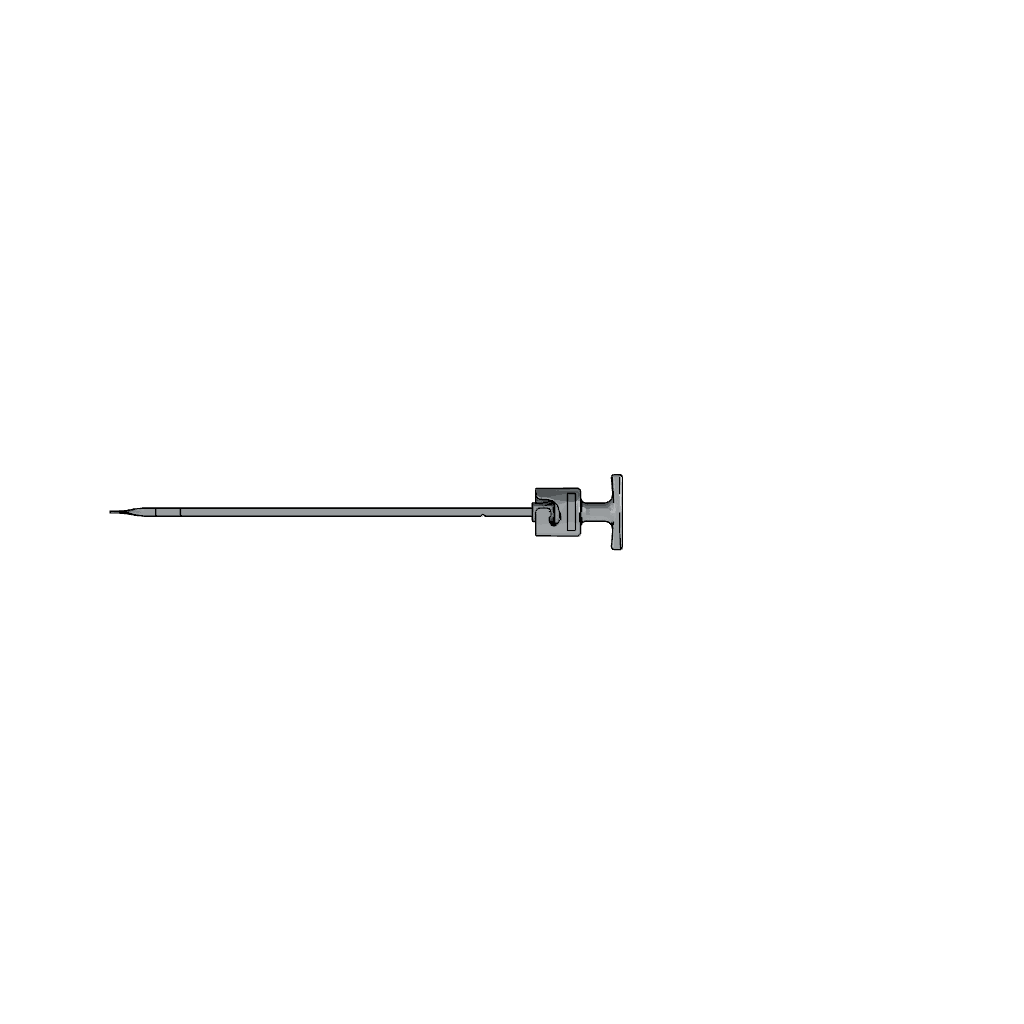

The Cummins 3939101 Dipstick is a specialized component designed for use in commercial trucks equipped with Cummins engines. Its primary role is to facilitate the measurement of engine oil levels, which is vital for maintaining proper lubrication and ensuring the engine operates efficiently and reliably. This part is integral to routine maintenance procedures and plays a significant part in the overall health and performance of the vehicle ¹.

Basic Concepts of a Dipstick

A dipstick is a tool used in internal combustion engines to measure the level of engine oil. It consists of a long, thin metal or plastic rod with a handle at one end. The rod is inserted into the engine’s oil sump through a tube. Once inserted and then withdrawn, the oil level can be read from the markings on the dipstick, which indicate whether the oil is within the appropriate range. This process helps ensure that the engine has sufficient lubrication to reduce friction and wear on moving parts ².

Purpose of the Cummins 3939101 Dipstick

The Cummins 3939101 Dipstick serves a specific function within the engine of a commercial truck. It allows for the accurate measurement of oil levels, which is necessary for maintaining the engine’s lubrication system. Proper lubrication is fundamental to reducing friction between moving parts, which in turn helps prevent overheating and extends the engine’s lifespan. By providing a reliable means to check oil levels, this Cummins part supports the efficient operation and maintenance of Cummins-powered trucks.

Key Features

The Cummins 3939101 Dipstick is engineered with several design elements and materials that enhance its performance and durability. It is typically made from high-quality steel, which offers resistance to corrosion and wear. The dipstick features precise markings for accurate oil level readings and a robust handle for easy insertion and removal. Its design ensures compatibility with Cummins engines, providing a snug fit within the oil sump tube.

Benefits

Using the Cummins 3939101 Dipstick offers several advantages. Its accurate measurement capabilities ensure that oil levels are consistently monitored, which is crucial for maintaining engine health. The dipstick’s ease of use, with a straightforward design and clear markings, makes it accessible for routine checks by maintenance personnel. Additionally, its compatibility with Cummins engines ensures that it meets the specific requirements and standards of these powerful commercial truck engines.

Installation Process

Installing the Cummins 3939101 Dipstick involves a few straightforward steps. First, ensure the engine is turned off and has cooled down to avoid burns from hot oil. Locate the dipstick tube, usually found near the engine’s top. Remove the old dipstick by pulling it straight out of the tube. Insert the new Cummins 3939101 Dipstick into the tube until it reaches the bottom, then withdraw it slightly to get an accurate reading. Push it back in fully and secure it by replacing the cap or plug.

Maintenance Tips

To ensure the longevity and accuracy of the Cummins 3939101 Dipstick, regular maintenance is recommended. After each use, wipe the dipstick clean with a lint-free cloth before reinserting it into the tube. Periodically inspect the dipstick for signs of wear or damage, such as bent or corroded areas, and replace it if necessary. Keeping the dipstick and its tube free from debris will also help maintain accurate readings and prevent contamination of the engine oil.

Troubleshooting Common Issues

Common issues with the Cummins 3939101 Dipstick may include inaccurate oil level readings or physical damage to the dipstick itself. Inaccurate readings can often be resolved by ensuring the dipstick is fully seated in the tube and by checking for any obstructions within the tube. If the dipstick is bent or shows signs of significant wear, it should be replaced to ensure accurate measurements. Regular maintenance and inspection can help prevent many of these issues.

Compatibility and Usage

The Cummins 3939101 Dipstick is designed for use in specific models of Cummins engines found in commercial trucks. It is important to verify compatibility with the specific engine model to ensure proper fit and function. Usage guidelines typically involve regular checks of the oil level as part of routine maintenance schedules, following the manufacturer’s recommendations for oil change intervals and engine operating conditions.

About Cummins

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for innovation, quality, and reliability in the commercial truck industry. Their product range includes engines for on-highway and off-highway applications, providing power solutions that meet the demanding requirements of various industries.

Cummins Dipstick Part 3939101 Compatibility

The Cummins dipstick part number 3939101 is designed to be compatible with a range of Cummins engines, ensuring accurate and reliable oil level checks. This dipstick is specifically engineered to fit seamlessly with the following engines:

• 6B5.9
• QSB5.9 30 CM550
• QSB5.9 44 CM550

These engines, while differing in their specific configurations and power outputs, share a commonality in their design that allows the 3939101 dipstick to function effectively across the board. This compatibility ensures that users can maintain their engines with confidence, knowing that the dipstick is a precise fit for these models.

Role of Part 3939101 Dipstick in Engine Systems

The part 3939101 dipstick is an integral component in the maintenance and monitoring of engine systems. Its primary function is to provide a means for checking the oil level within the engine. This is achieved through its insertion into the oil filler tube, allowing for a direct measurement of the oil quantity.

When the dipstick is removed and wiped clean, then reinserted and pulled out again, the oil level can be read against the markings on the dipstick. This reading is essential for ensuring that the engine has the correct amount of oil, which is necessary for proper lubrication of moving parts, heat dissipation, and overall engine performance.

In conjunction with the oil gauge, the dipstick offers a simple yet effective method for engine diagnostics. The oil gauge, typically found on the vehicle’s dashboard, provides a visual indication of the oil pressure within the engine. While the dipstick measures the static oil level, the gauge monitors the dynamic pressure, which is indicative of the oil’s circulation and the engine’s health.

Regular checks using the dipstick help in identifying potential issues such as oil leaks or excessive consumption, which could lead to engine damage if left unaddressed. Moreover, the dipstick’s design allows for the collection of oil samples, which can be analyzed for contaminants or metal particles, providing further insights into the engine’s condition.

Conclusion

In summary, the Cummins 3939101 Dipstick, when used in tandem with the oil gauge and level indicators, plays a significant role in the routine maintenance and operational oversight of engine systems. Its accurate measurement capabilities, ease of use, and compatibility with specific Cummins engines make it a vital component for ensuring the efficient and reliable operation of commercial trucks.
